TOP END PISTON KIT 79-81 SUZUKI RM RS PE 250 67.5mm 0.5mm OVER VINTCO KTS04-0.5

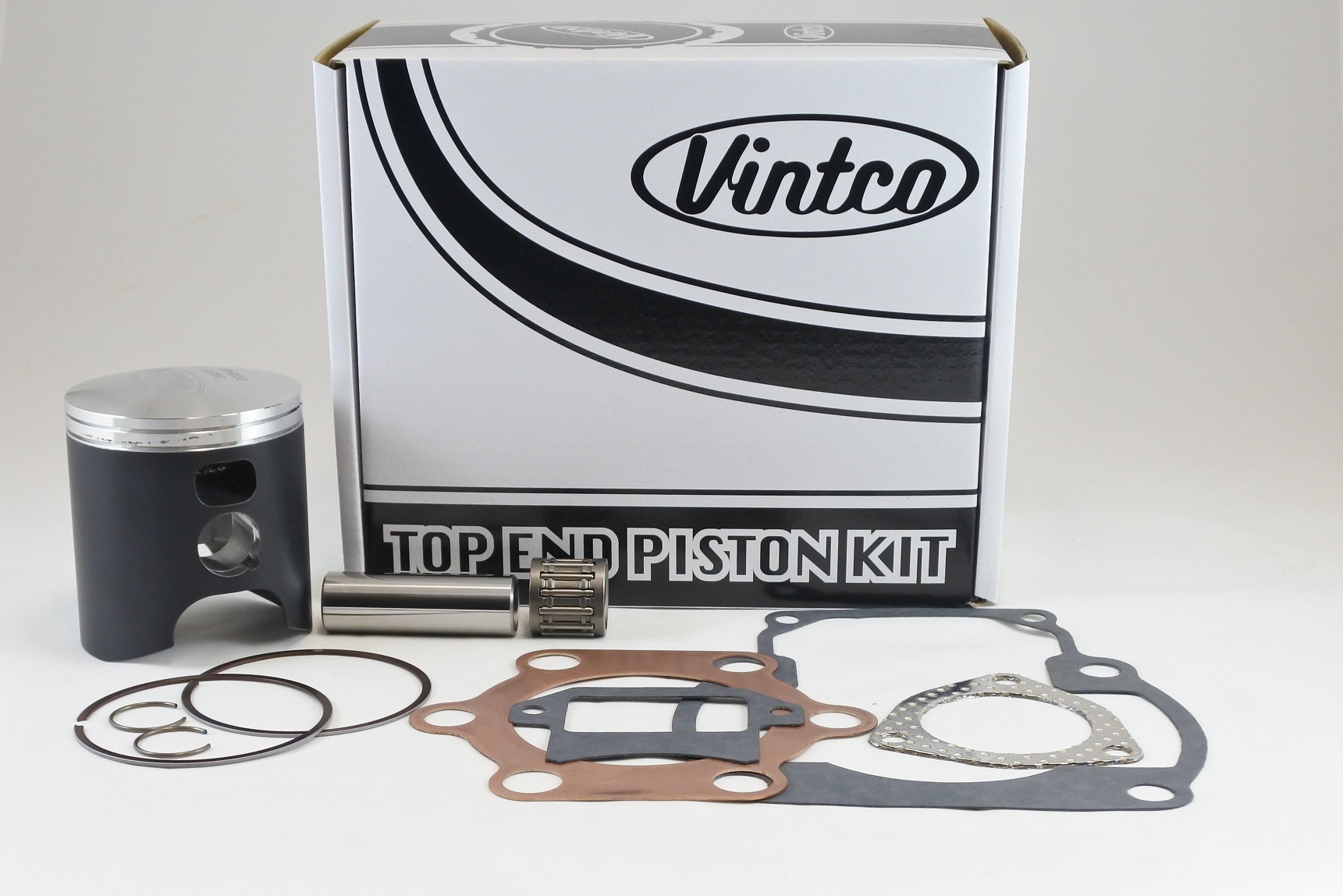

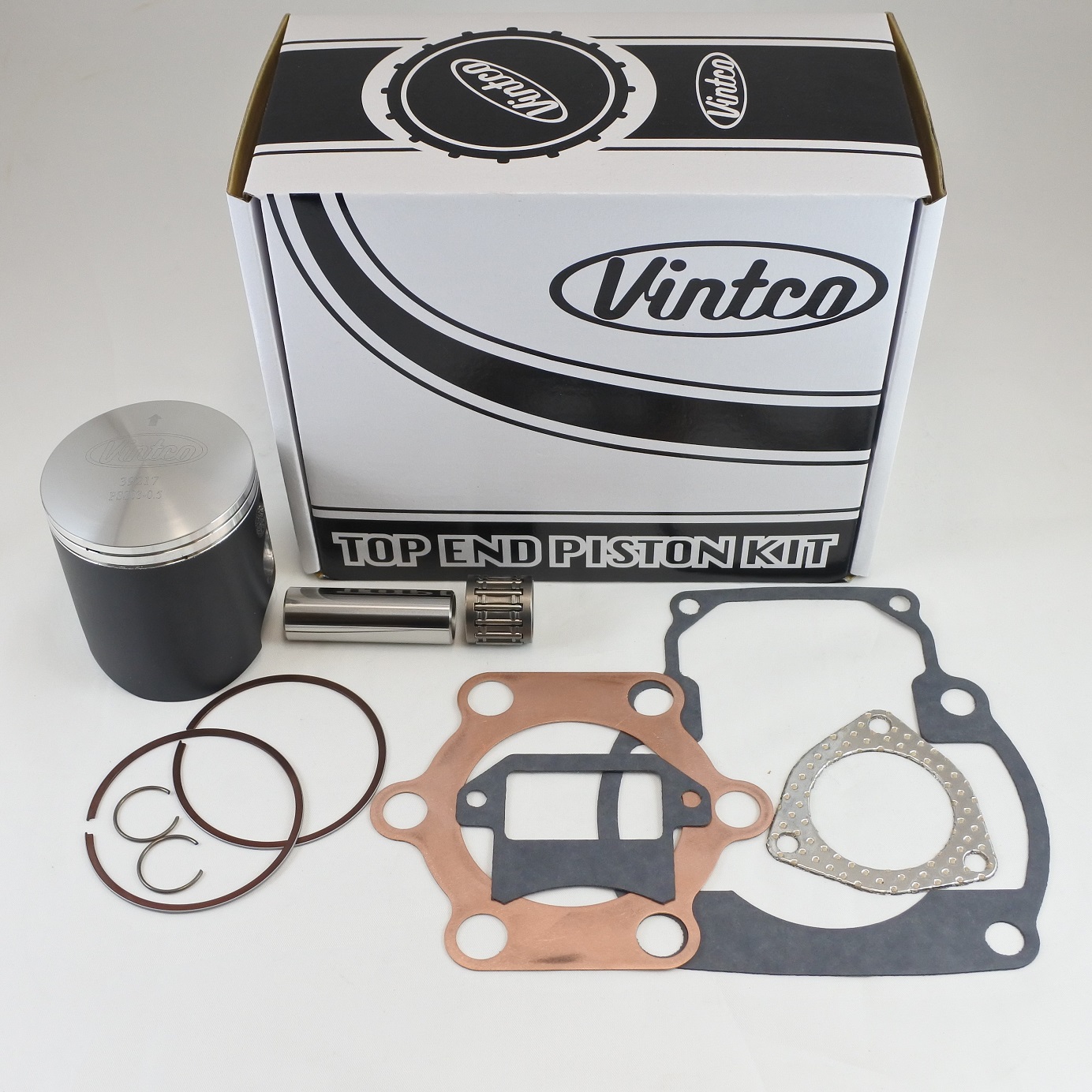

VintCo top end piston kit KTS04-0.5 is a complete rebuild kit for 1979-1981 Suzuki RM250, PE250 and RS250 applications. The kit includes a 67.5 mm (+0.5 mm over) piston assembly with piston, rings, pin and clips, a top end bearing, and a full top-end gasket set comprising the head, base, intake and exhaust gaskets. The piston is forged, manufactured in Germany, and MoS2 coated for running-in. The kit is produced using modern materials and manufacturing methods for OEM-equivalent fit and performance. Features include a complete top-end rebuild kit, piston, rings, pin and clips, top end bearing, and a full top-end gasket set with head, base, intake, and exhaust gaskets. Designed for straightforward top-end rebuilds, this kit offers OEM-equivalent fit and performance. Specifications include VintCo Part Number KTS04-0.5, nominal piston size 67.5 mm, oversize +0.5 mm, piston diameter 67.44 mm, piston-to-cylinder clearance 0.06 mm, forged piston construction with MoS2 coating and German origin. Head gasket thickness is 0.8 mm. Cross-reference OEM part numbers include Piston 12110-40312-050, Head gasket 11141-40303, Base gasket 11241-40301-H17, Intake gasket 13156-40400-H17, Exhaust gasket 14181-16300-H17, and Wrist pin bearing 09263-18016.
- SKU
- VIN-KTS04-0.5
- Brand
- Vintco
- Availability
- Out of Stock
FULL DESCRIPTION
VintCo Top End Piston Kit - Oversize 67.5mm
Restore your motorcycle's performance with the VintCo Top End Piston Kit. This comprehensive kit is designed for a complete top-end rebuild, ensuring your engine runs as smoothly and powerfully as possible. It includes all the essential components needed for a professional-quality overhaul.
Key Features:
- Complete top-end rebuild solution
- Includes forged piston, rings, wrist pin, and clips
- Top end bearing included for smooth operation
- Full top-end gasket set for a perfect seal
- Contains head, base, intake, and exhaust gaskets
- Forged piston manufactured in Germany
- MoS2 coated piston for enhanced running-in
- Engineered for OEM-equivalent fit and performance
- Cost-effective solution with kit pricing 10% below individual component costs
- Additional piston sizes are available
Specifications:
- Nominal Piston Size: 67.5 mm
- Oversize: +0.5 mm
- Piston Diameter: 67.44 mm
- Piston-to-Cylinder Clearance: 0.06 mm
- Piston Construction: Forged
- Piston Coating: MoS2
- Piston Origin: Germany
- Head Gasket Thickness: 0.8 mm
