RELAY UNIT 4 PIN. 12 VDC UP-01556

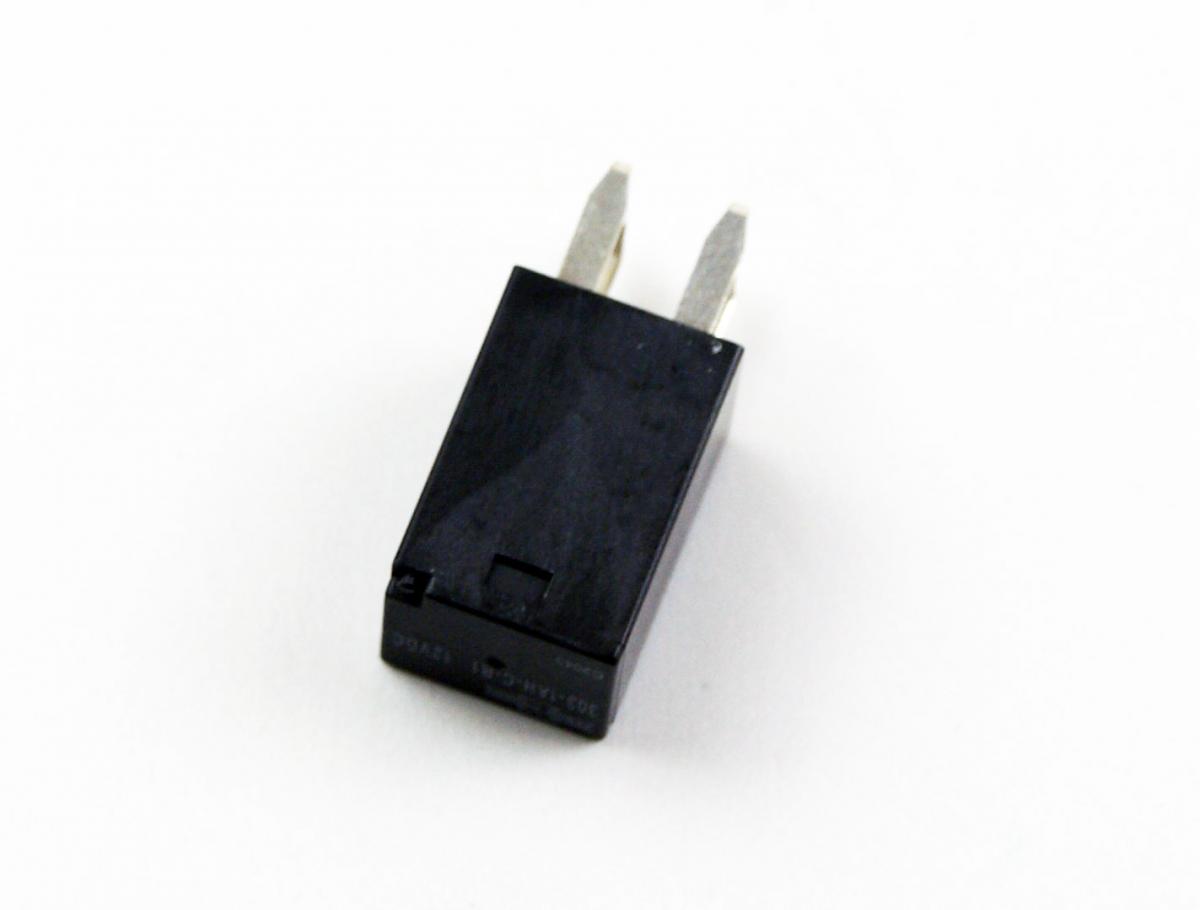

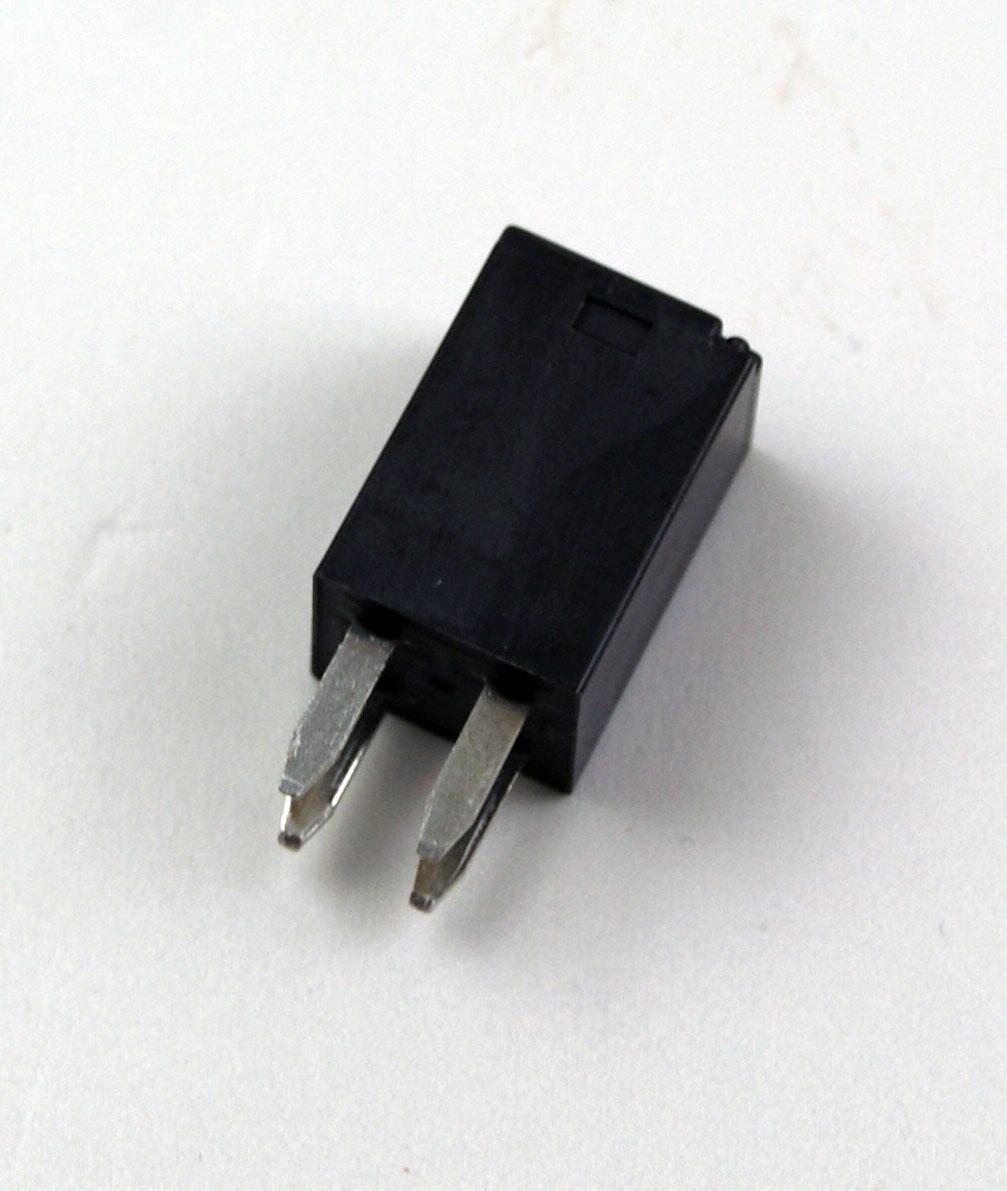

12v 4 pin ultra micro relay SPDT 20 amp ISO 280 automotive relay with a resistor. Single pole single throw relay with a much higher working temperature than most, 257 degrees F. Rated for 20 amps normally open. 2.8mm wide terminals. 12 volt coil. Used by many OEMs. Dimensions: L:15.9 X W:14.4 X H:23.8 / 34.6MM. Cross reference number UP-01556.
- SKU
- 44-4731.FIR
- Brand
- Factory Image Racing
- Availability
- In Stock (12)
FULL DESCRIPTION
12V 4-Pin Ultra Micro Relay SPDT 20 Amp
This is a high-quality 4-terminal single pole single throw (SPDT) automotive relay designed for reliability and performance. It features a 12-volt DC coil and is rated for 20 amps on the normally open circuit. The relay operates at a higher working temperature than many standard relays, up to 257 degrees Fahrenheit, ensuring consistent performance in demanding conditions. It is equipped with 2.8mm wide terminals and includes a resistor.
This ultra micro relay is used by many original equipment manufacturers (OEMs) worldwide and offers direct OEM replacement compatibility. All FIR Racing products are factory tested for 100% reliability and are designed to handle increased power loads.
Key Features:
- Voltage: 12 VDC
- Type: Electronic Relay
- Number of Terminals: 4
- Rating: 20 Amps (Normally Open)
- Operating Temperature: Up to 257 Degrees Fahrenheit
- Terminal Size: 2.8mm

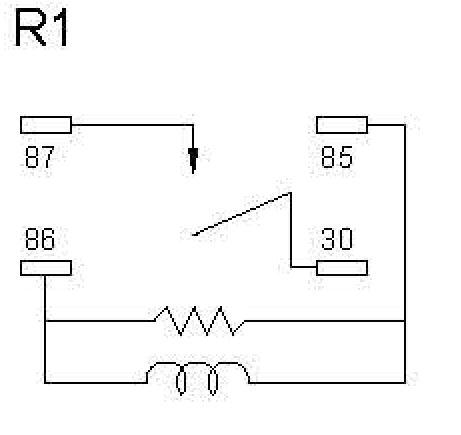

- Construction: Single Pole Single Throw (SPDT) with Resistor
- Dimensions: L: 15.9mm X W: 14.4mm X H: 23.8mm / 34.6mm (including bracket)
- Quality: Meets or exceeds OEM specifications
- Reliability: Factory tested for 100% reliability
- Design: Engineered to handle increased power loads
Please Note: This is an electrical part. Returns are not accepted on electrical items. Verify the product image before ordering to avoid ordering mistakes.
