CONNECTING ROD 13-18 KTM85, NAMURA RX-70016 KIT SX85, KTM 85SX 105SX 2013-2018, Husqvarna TC85 2014-2018
Namura Connecting Rod Rebuild Kit. Heavy-duty OE replacement connecting rods made with certified chrome steel for superior strength. Features a uniquely designed big end with strategically located side scalloping vent slots to minimize high rpm bearing race distortion. Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened. Psychic uses the latest caged needle roller bearing designs for high rpm longevity. Thrust washers are manufactured from bronze phosphor and are silver coated. Rod assembly is complete with rod, crankpin, crankpin bearing, top end bearing, and thrust washers. Centre to Centre: 96mm. Small End Bearing: 14x18x16.5mm. Small End Bore Ø: 18mm. Small End Width: 14mm. Big End Bearing: 20x26x14.8mm. Big End Bore Ø: 26mm. Big End Width: 15mm. Big End Pin Ø: 20mm. Big End Pin Length: 46mm. Washer Thickness: 20x36x1.00mm. Part No. 56-963.DR. Cross reference numbers: RO-8212, 47030015200, ATHENA P40321041, PSYCHIC MX-09105, HOTRODS 8157, PROX 03.6113, WOSSNER P2065.
- SKU
- 56-963.NM
- Brand
- Namura Technologies
- Availability
- In Stock (1)
FULL DESCRIPTION
Namura Connecting Rod Rebuild Kit for KTM and Husqvarna Motorcycles
Restore the heart of your engine with this high-quality connecting rod rebuild kit from Namura. Engineered for durability and performance, this kit provides all the necessary components to replace your worn or damaged connecting rod, ensuring your motorcycle runs smoothly and reliably.
Key Features:
- Heavy-Duty OE Replacement: Designed to meet or exceed original equipment specifications for a perfect fit and reliable performance.
- Superior Strength Certified Chrome Steel: Utilizes certified chrome steel for exceptional strength and resistance to wear, providing long-lasting service.
- Optimized Big End Design: Features a uniquely designed big end with strategically located side scalloping vent slots. This minimizes high RPM bearing race distortion, improving efficiency and longevity.
- Precision Crankpins: Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened for maximum durability and performance under demanding conditions.
- Advanced Caged Needle Roller Bearings: Employs the latest in caged needle roller bearing technology for enhanced high RPM longevity.
- Silver Coated Bronze Phosphor Thrust Washers: Thrust washers are constructed from premium bronze phosphor and are silver coated for reduced friction and improved durability.

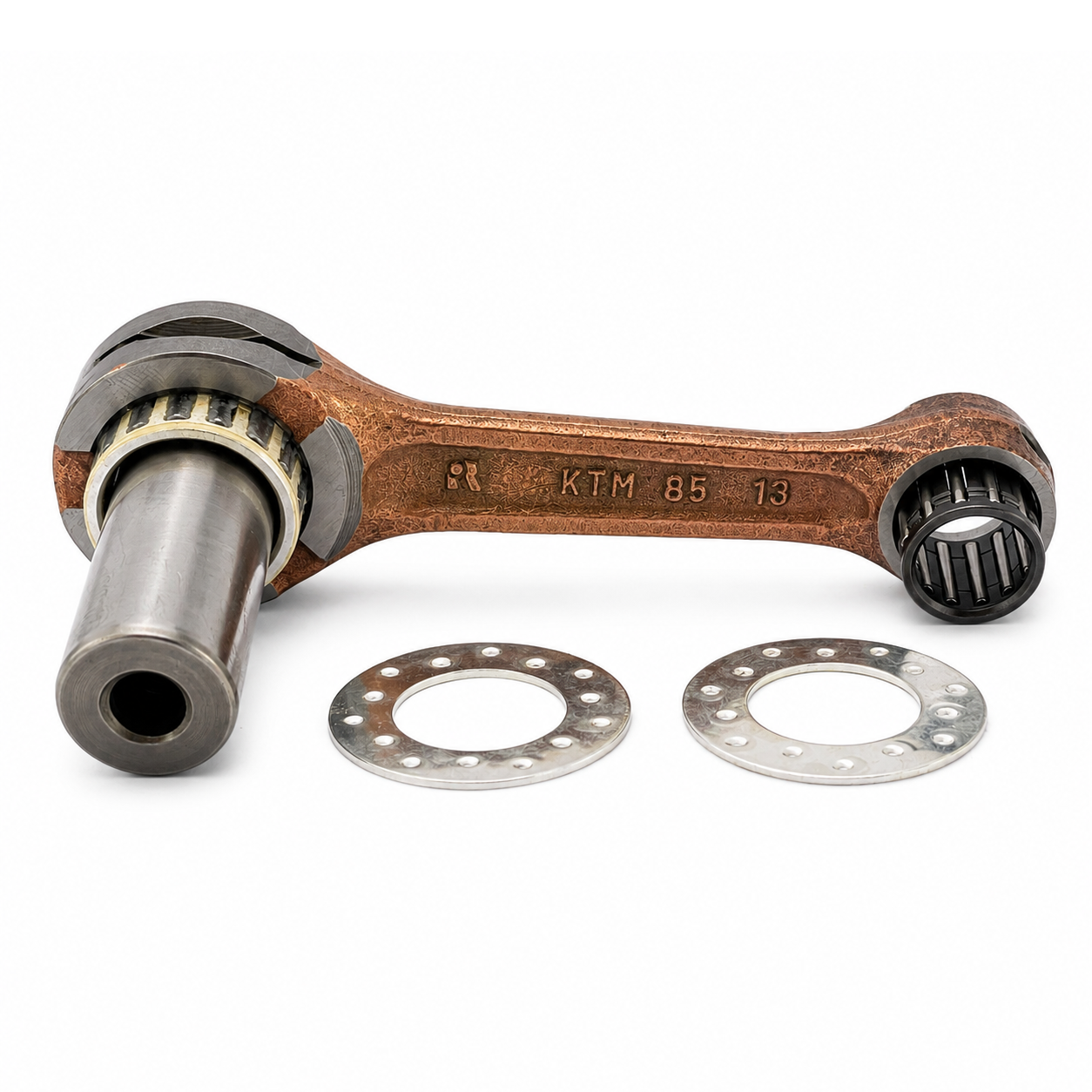

- Complete Rebuild Kit: Each kit includes the connecting rod, crankpin, crankpin bearing, top end bearing, and thrust washers, providing a comprehensive solution for your engine rebuild.
Specifications:
- Centre to Centre Length: 96 mm
- Small End Bearing Dimensions: 14x18x16.5 mm
- Small End Bore Diameter: 18 mm
- Small End Width: 14 mm
- Big End Bearing Dimensions: 20x26x14.8 mm
- Big End Bore Diameter: 26 mm
- Big End Width: 15 mm
- Big End Pin Diameter: 20 mm
- Big End Pin Length: 46 mm
- Washer Dimensions: 20x36x1.00 mm
