CONNECTING ROD KIT 78-87 KAWASAKI KDX KX 125 175 200 VINTCO KR2008

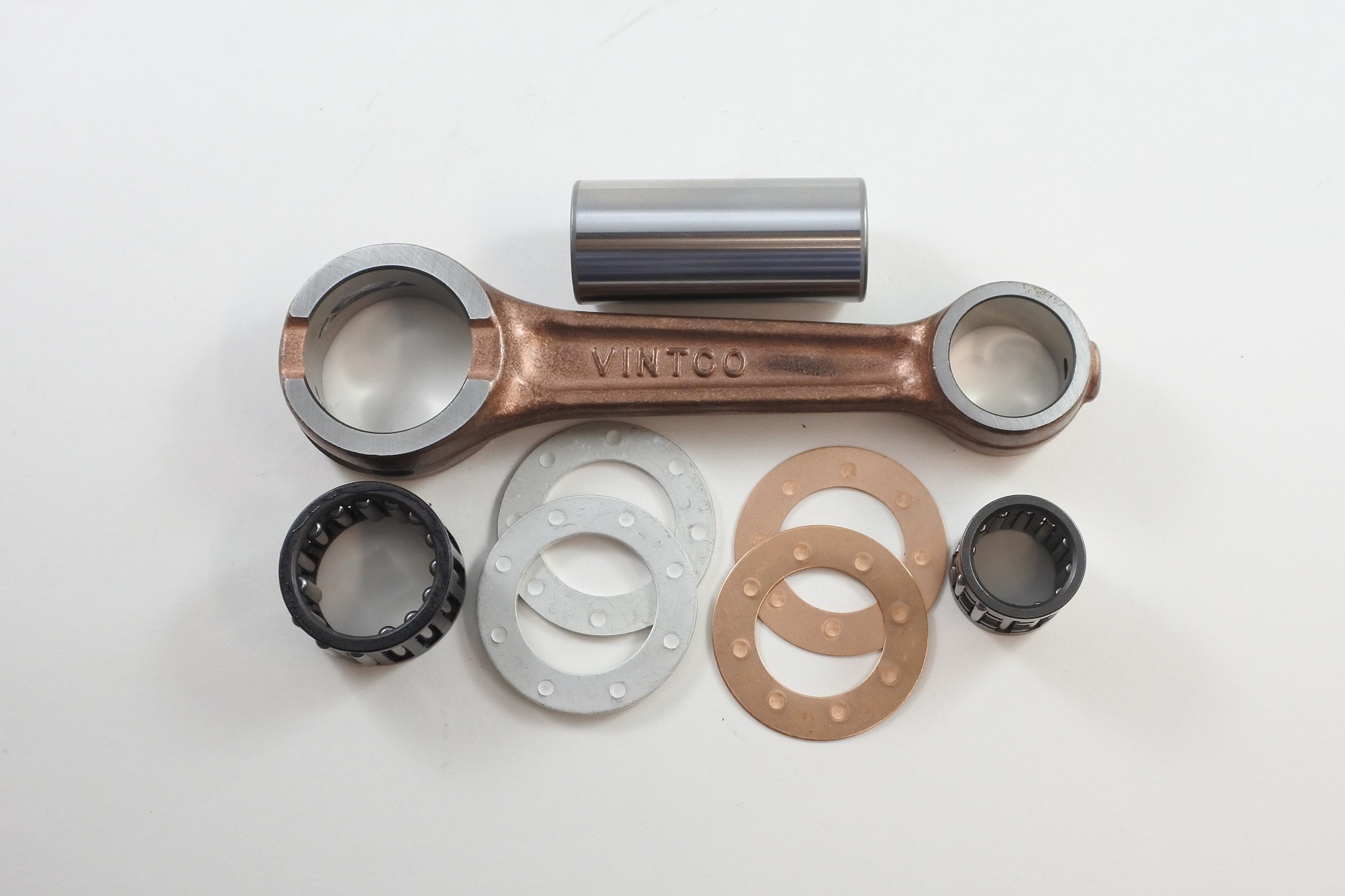

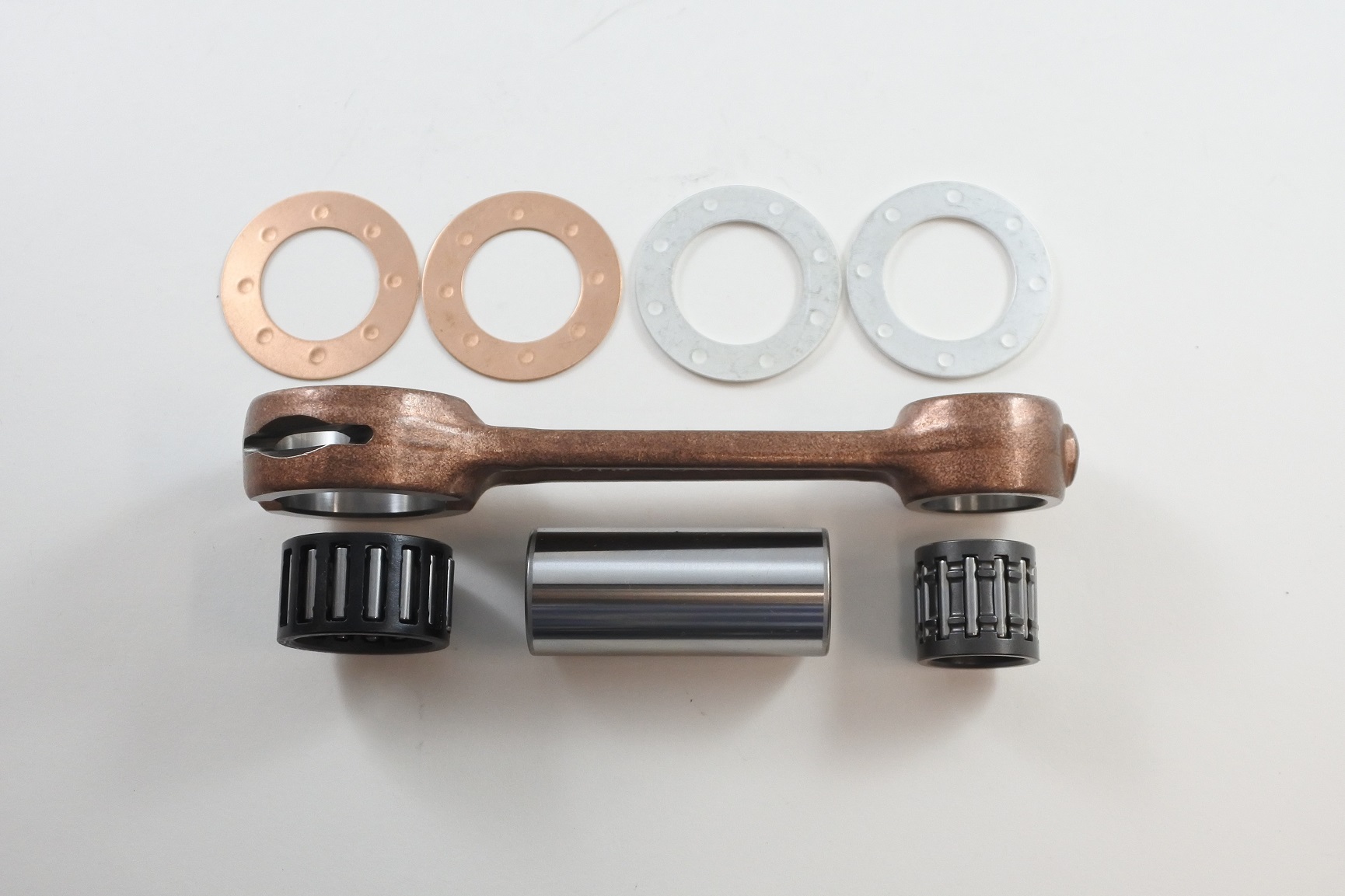

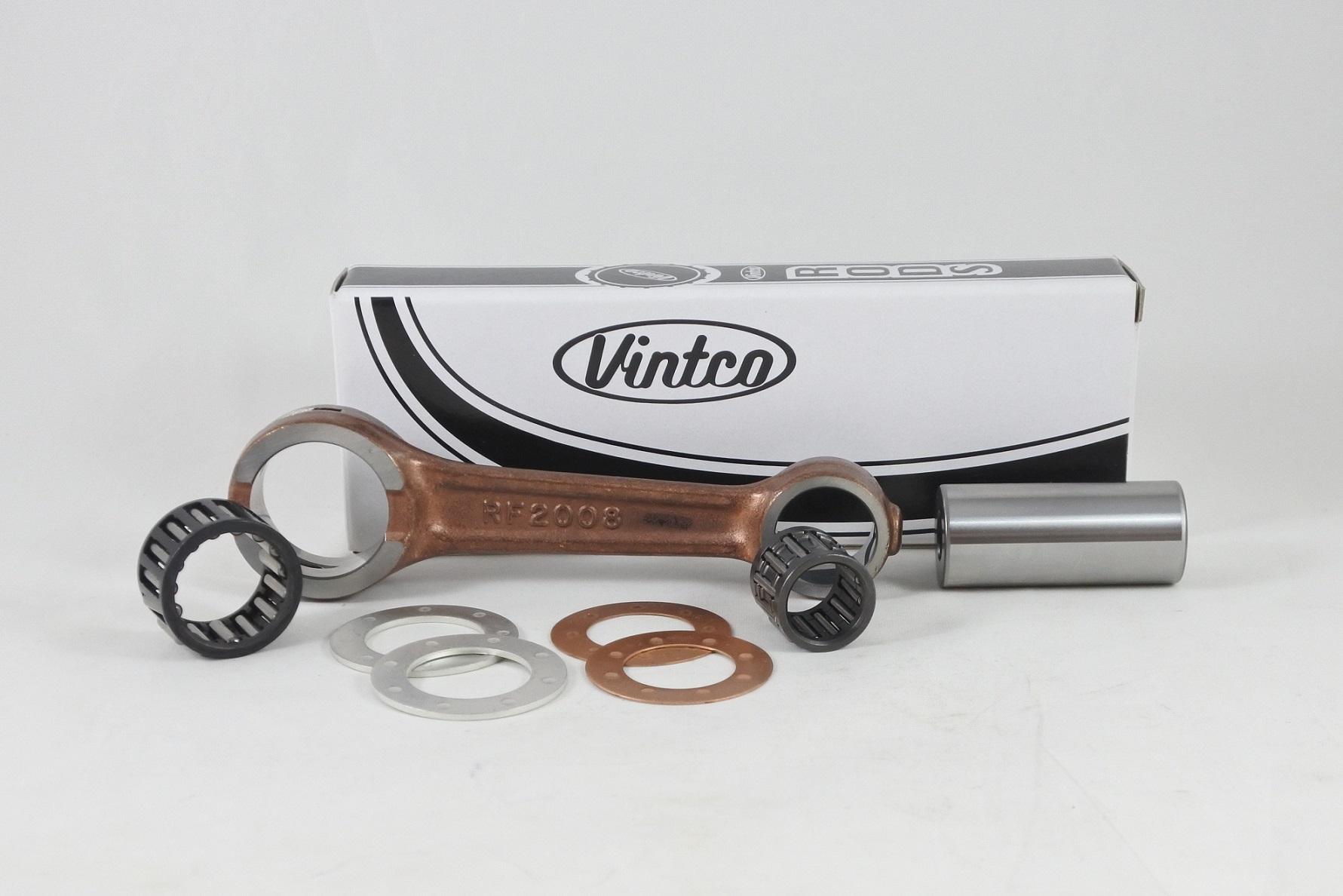

Replacement connecting rod kit for Kawasaki KX125, KDX175, and KDX200. This VintCo KR2008 kit is designed for crankshaft rebuilds and offers an alternative to replacing the complete crankshaft. It includes a heavy duty forged steel connecting rod, crank pin, big end bearing, wrist pin bearing, and thrust washers. Additional thrust washers are included for 1978-1979 KX125 applications. Specifications: VintCo Part Number KR2008, connecting rod quantity 1, crank pin size 10 x 22 x 51 mm, big end bearing size 22 x 29 x 17 mm, wrist pin bearing size 16 x 21 x 19.5 mm, thrust washer size 22 x 37 x 1 mm (quantity 2), additional thrust washer size 22.2 x 37 x 0.5 mm (quantity 2, for KX125 1978-1979). Cross-Reference OEM Part Number: 13044-5009.
- SKU
- VIN-KR2008
- Brand
- Vintco
- Availability
- In Stock (1)
FULL DESCRIPTION
VintCo Connecting Rod Kit for Kawasaki KX and KDX Motorcycles
This VintCo connecting rod kit is a high-quality replacement component designed for crankshaft rebuilds on select Kawasaki KX and KDX models. Manufactured using modern production methods, this kit provides a reliable alternative to replacing the entire crankshaft, ensuring correct fit and performance.
Key Features:
- Direct replacement connecting rod kit for specific Kawasaki motorcycles.
- Ideal for repairing and rebuilding crankshaft assemblies.
- Offers a cost-effective solution compared to full crankshaft replacement.
- Constructed from heavy-duty forged steel for enhanced durability.
- Includes all necessary components for assembly: connecting rod, crank pin, big end bearing, wrist pin bearing, and thrust washers.
- Extra thrust washers are provided specifically for 1978-1979 Kawasaki KX125 applications.
Specifications:
- Connecting rod material: Heavy-duty forged steel
- Crank pin dimensions: 10 mm x 22 mm x 51 mm
- Big end bearing dimensions: 22 mm x 29 mm x 17 mm
- Wrist pin bearing dimensions: 16 mm x 21 mm x 19.5 mm
- Standard thrust washer dimensions: 22 mm x 37 mm x 1 mm (Quantity: 2)
- Additional thrust washer dimensions: 22.2 mm x 37 mm x 0.5 mm (Quantity: 2)
- Additional thrust washers are compatible with KX125 models from 1978-1979.
This VintCo connecting rod kit is an excellent choice for motorcycle enthusiasts looking to restore the performance and integrity of their Kawasaki's engine.
