CONNECTING ROD KYMCO GY125 GY6 GY 6 125 13201-GY6-9000-1
Connecting rod kit for Kymco GY6-based engines, including GY125 and 125/150 variants. Manufactured to OEM standards for accuracy and reliable operation, supplied with matching pin and big-end bearing. Features high-grade materials for consistent performance and meets or exceeds OEM quality specifications. Direct OEM replacement for part number 13201-GY6-9000-1. Specifications: Big-end width 14 mm, Small-end width 14 mm, Big-end bore 33 mm, Small-end bore 15 mm, Centre-to-centre length 93.5 mm, Overall rod length 124 mm, Pin diameter 28 mm, Pin length 39 mm, Big-end bearing size 28 × 33 × 14 mm. Weight 300g.
- SKU
- 56-A2030
- Brand
- Dirt Racing
- Availability
- In Stock (1)
FULL DESCRIPTION

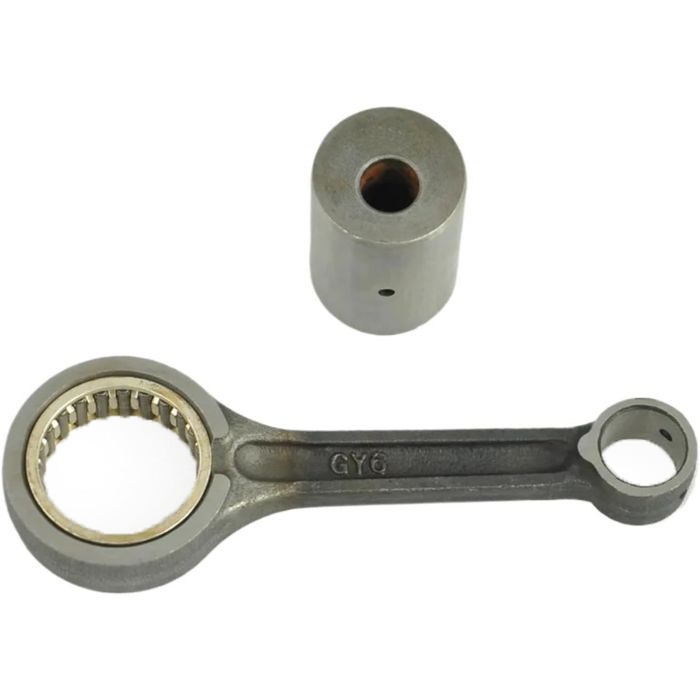

Kymco GY6 Connecting Rod Kit
This connecting rod kit is specifically designed for Kymco GY6-based engines, including the GY125 and 125/150 variants. Engineered to meet OEM standards, this kit ensures dimensional accuracy and reliable engine operation. It comes supplied with a matching pin and big-end bearing, precisely sized for a confident engine rebuild.
Key Features:
- Constructed from high-grade materials for enhanced reliability and consistent performance.
- Manufactured to exacting specifications, supporting confident engine rebuilds.
- Meets or exceeds OEM quality standards for a direct replacement.
- Designed as a direct OEM replacement part for straightforward installation.
- A cost-effective solution for engine repairs and maintenance.
- Refer to the provided image to ensure correct part selection before ordering.

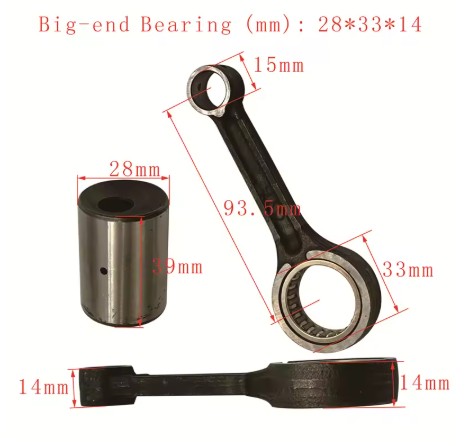

Specifications:
- Big-end Width: 14 mm
- Small-end Width: 14 mm
- Big-end Bore: 33 mm
- Small-end Bore: 15 mm
- Centre-to-Centre Length: 93.5 mm
- Overall Rod Length: 124 mm
- Pin Diameter: 28 mm
- Pin Length: 39 mm
- Big-end Bearing Size: 28 × 33 × 14 mm
OEM Cross-Reference Part Number:
- 13201-GY6-9000-1
