DISC BRAKE FRONT YAMAHA YFM350FG 07-8 4XE-F582T-10-00 MDS07052
The MotoDisc MDS216 Off-Road Brake Rotor is a premium replacement part manufactured using Japanese SUS420 stainless steel for superior strength and wear resistance. It features precision CNC machining and laser-cut technology with OEM-style lightening and drill hole patterns for efficient heat dissipation. This direct replacement rotor has an outside diameter of 200.0 mm, an inside diameter of 86.0 mm, and a bolt hole circumference of 104.0 mm with 4 bolt holes, each 10.5 mm in size. The rotor is 3.6 mm thick, with a minimum thickness of 3.0 mm, and has a straight bolt hole type and 0.0 mm offset. It is designed for the front left and front right installation positions. Part number 40-338.MD.OE.
- SKU
- 40-338.MD.OE
- Brand
- MTX Parts
- Availability
- Out of Stock
FULL DESCRIPTION

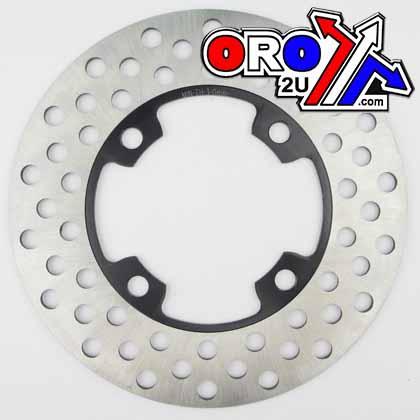

MotoDisc MDS216 Off-Road Front Brake Rotor
Upgrade your ATV's braking system with the MotoDisc MDS216 Off-Road Brake Rotor. This premium replacement part is engineered for exceptional braking performance and long-lasting durability, ensuring you have reliable stopping power when you need it most.
Key Features:
- High-Quality Material: Constructed from Japanese SUS420 stainless steel, providing superior strength and resistance to wear.
- Precision Manufacturing: Utilizes advanced CNC machining and laser-cut technology for precise dimensions and a perfect fit.
- Optimized Design: Features OEM-style lightening and drill hole patterns specifically designed to enhance heat dissipation, reducing the risk of brake fade.
- Direct Replacement: Designed as a direct fit for original equipment, making installation straightforward.

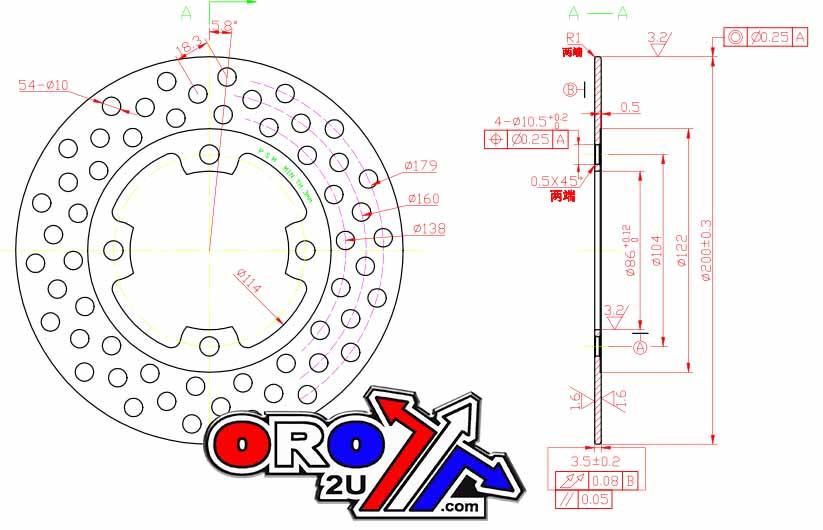

Brake Rotor Specifications:
- Outside Diameter: 200.0 mm
- Inside Diameter: 86.0 mm
- Bolt Hole Circumference: 104.0 mm
- Number of Bolt Holes: 4
- Bolt Hole Size: 10.5 mm
- Thickness: 3.6 mm
- Minimum Recommended Thickness: 3.0 mm
- Bolt Hole Type: Straight
- Offset: 0.0 mm
- Installation Position: Front Left, Front Right
Cross-Reference Numbers:
- AT-05790
- MD6215D
- 4XE-F582T-10-00
