FUEL TAP PETCOCK KLR250, 51023-1112, 51023-1346
Fuel Tank Shutoff Switch Valve Petcock Assembly with 34mm center-to-center holes and 6.20mm spacing. Features filters and a reserve position. Tested and inspected for quality with a 90° outlet pointing downward. Outlet size is 6mm OD, 4mm ID. Finish is natural aluminum and BZP plating. Includes sealing O-ring. This is a high-quality, durable, factory-tested, and easy-to-install aftermarket replacement part; manual gravity feed petcock with a bypassed vacuum port. Gas hose with a 3-position switch: ON, OFF, and RESERVE. ON allows normal fuel usage, OFF shuts off gas flow completely, and RESERVE accesses the lower portion of the tank when fuel is low. Mounting hole spacing is 34mm. Part No. 18-6042.FIR. Cross-Reference Numbers: TAP-ASSY, FUEL 51023-1112, 51023-1346.
- SKU
- 18-6042.FIR
- Brand
- Factory Image Racing
- Availability
- In Stock (93)
FULL DESCRIPTION

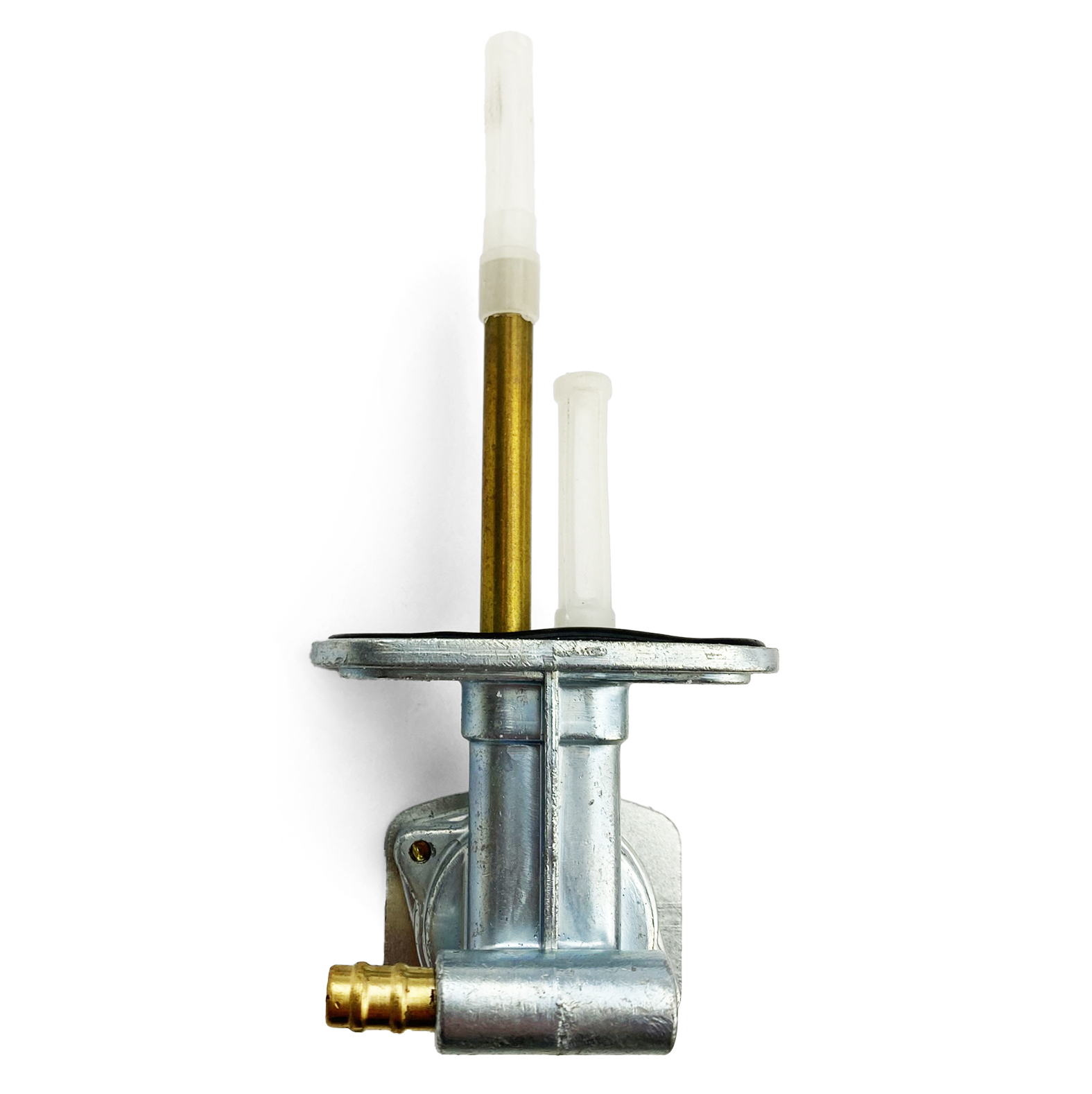

Fuel Tank Shutoff Switch Valve Petcock Assembly
Part Number:
This is an aftermarket fuel tank shutoff valve petcock assembly designed for manual gravity feed operation, bypassing any vacuum port. It is a direct replacement part, ensuring high quality, durability, and ease of installation. Each unit is factory tested and inspected for guaranteed quality.
Key Features:
- Fuel Control: Features a 3-position switch withON,OFF, andRESERVE settings for precise fuel management.
- ON Position: Allows for normal fuel flow to the engine.
- OFF Position: Completely shuts off the fuel supply.
- RESERVE Position: Enables access to the lower portion of the fuel tank, useful when the main fuel level is low.
- Outlet Configuration: A 90-degree outlet points downward for convenient hose connection.
- Outlet Dimensions: The outlet has an outer diameter (OD) of 6mm and an inner diameter (ID) of 4mm.
- Mounting: Designed with center-to-center mounting holes spaced at 34mm. A sealing O-ring is included for a secure fit. Please verify your fuel tank's bolt spacing matches the 34mm specification.
- Integrated Filtration: Includes filters to help prevent debris from reaching the carburetor.
- Materials and Finish: Constructed with natural aluminum and BZP plating for durability and corrosion resistance.
Cross-Reference Numbers:
- TAP-ASSY, FUEL 51023-1112
- TAP-ASSY, FUEL 51023-1346
