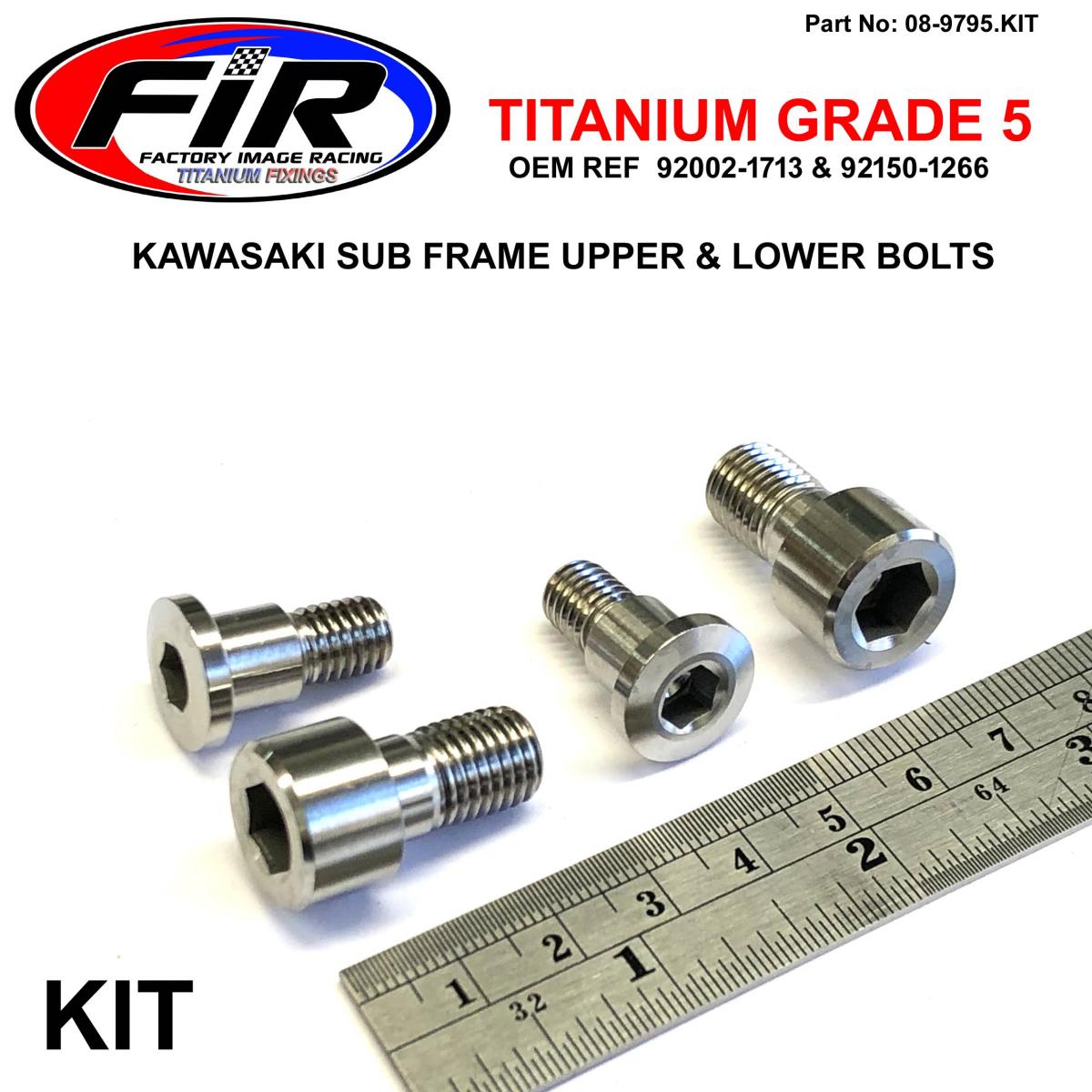

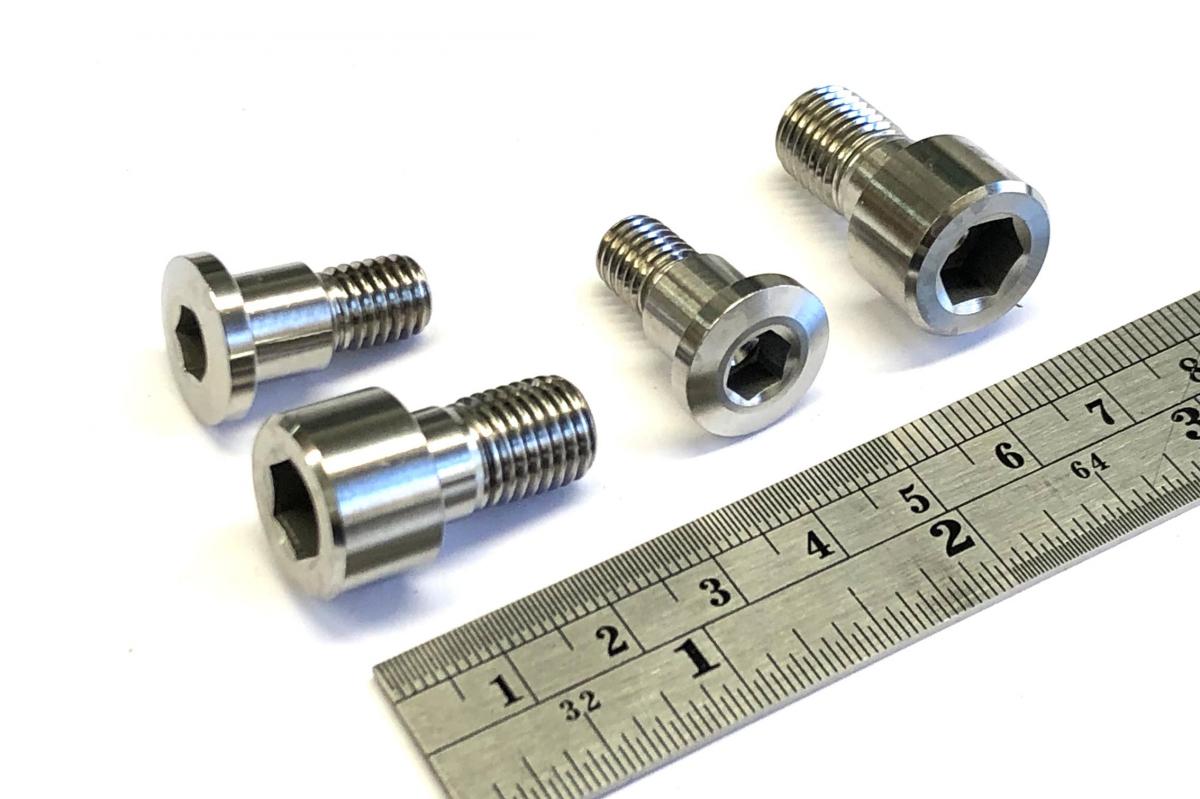

GR5 SUB FRAME BOLT KIT KX500, UPPER & LOWER FIXINGS, 92002-1713 & 92150-1266
Titanium Grade 5 sub frame bolts. Includes two M10x1.25mm bolts (Allen HEX #8mm, Flange OD 15.75mm, Thread length 11.00mm, Overall length 17.20mm, Qty 2, OEM Ref 92002-1713) and two M8x1.25mm bolts (Allen HEX #6mm, Flange OD 15.00mm, Boss OD 9.96mm, Boss L 8.00mm, Thread length 10.00mm, Overall length 19.10mm, Qty 2, OEM Ref 92150-1266). CNC machined with rolled threads from strong Grade 5 titanium alloy known for its high strength, light weight, and anti-corrosion properties. Used in applications such as motorcycles and cycles. Weight: 41 grams.
- SKU
- 08-9795.KIT
- Brand
- No Brand
- Availability
- In Stock (35)
FULL DESCRIPTION
Titanium Sub Frame Bolt Kit
Upgrade your vehicle's sub frame with this high-performance bolt kit. Crafted from super strong Grade 5 Titanium Alloy (6Al/4V), these bolts offer exceptional strength, incredibly light weight, and outstanding anti-corrosion properties. CNC machined with rolled threads for superior durability.
Upper Fixing Bolt Details:
- Material: Grade 5 Titanium (6Al/4V)
- Thread Diameter: M10
- Thread Pitch: 1.25mm
- Overall Length: 17.20mm
- Thread Length: 11.00mm
- Allen Hex Size: 8mm
- Flange Outer Diameter: 15.75mm
- Quantity: 2
- OEM Reference: 92002-1713
Lower Fixing Bolt Details:
- Material: Grade 5 Titanium (6Al/4V)
- Thread Diameter: M8
- Thread Pitch: 1.25mm
- Overall Length: 19.10mm
- Thread Length: 10.00mm
- Allen Hex Size: 6mm
- Flange Outer Diameter: 15.00mm
- Boss Outer Diameter: 9.96mm
- Boss Length: 8.00mm
- Quantity: 2
- OEM Reference: 92150-1266
