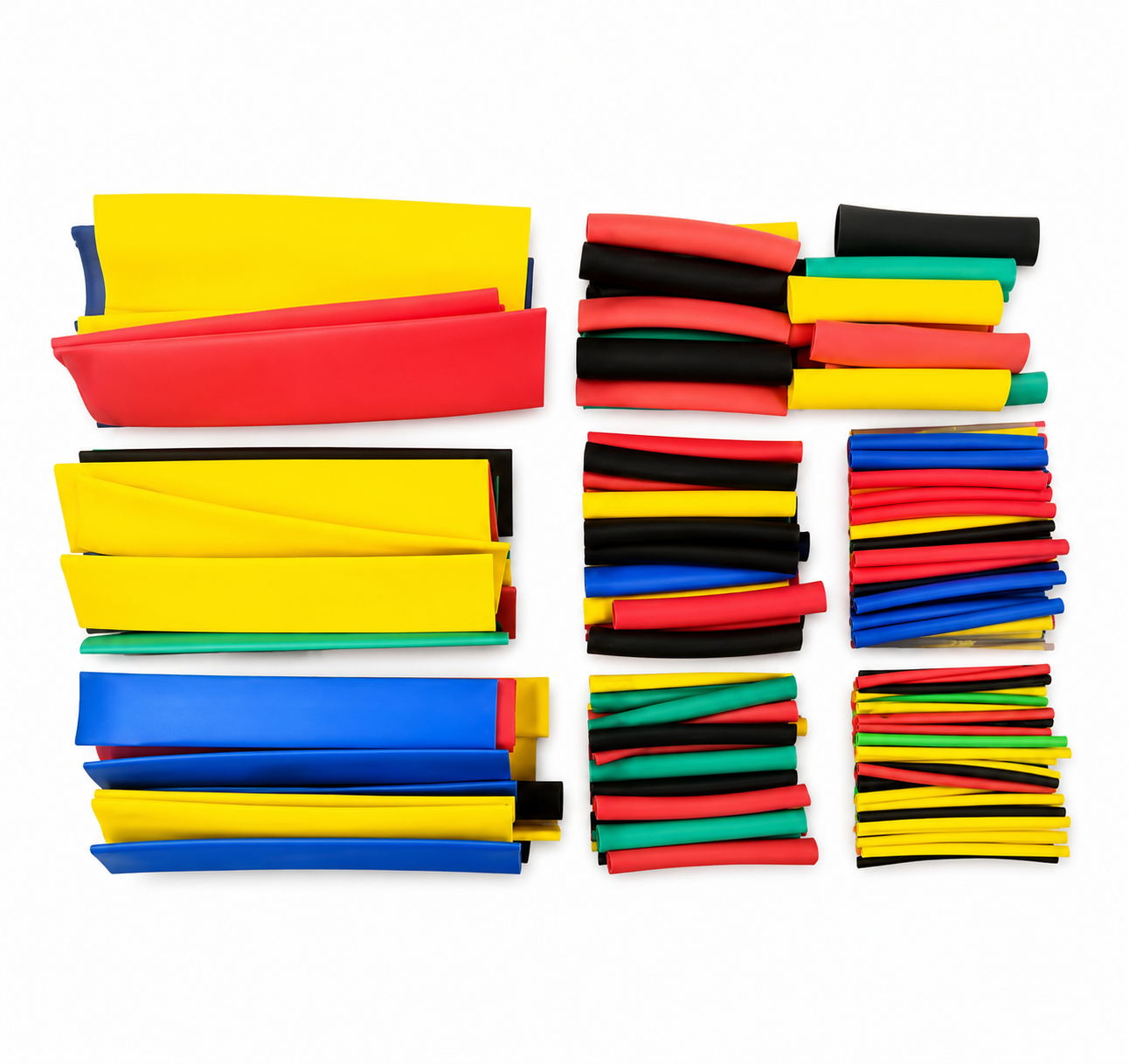

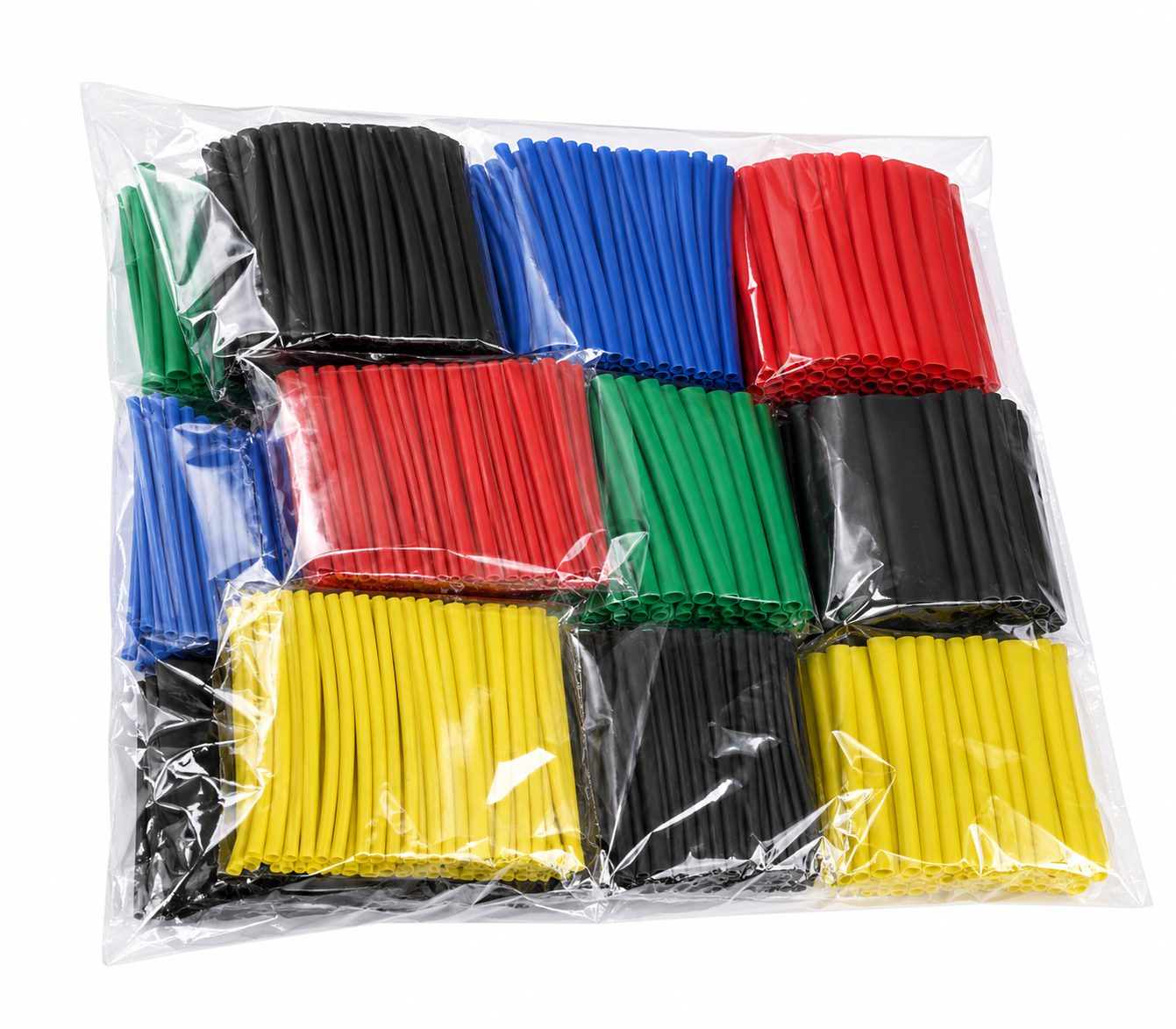

HEAT SHRINK TUBE KIT 530PC WIRE CABLE INSULATED POLYOLEFIN

This 530-piece heat-shrink tubing kit contains an assortment of polyolefin heat-shrink sleeves for insulating, protecting, bundling, and colour-coding wires, cables, terminals, and electrical connections. The kit includes pre-cut pieces in multiple diameters and colours, supplied flat and suitable for cutting or trimming. Kit colours may vary. Features include suitability for wire insulation, cable protection, bundling, and colour identification. The heat-shrink design reduces to half of the supplied diameter when fully shrunk. Supplied as a mixed assortment of 8 diameter specifications, including black, yellow, green, red, and blue tubing. Supplied in a box or bag. Specifications include 530 pieces, polyolefin material, and a 2:1 shrinkage ratio. Supplied internal diameters are 1.5 mm, 2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, and 10 mm. Fully shrunk internal diameters are 0.75 mm, 1 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm, and 5 mm. Minimum shrinkage temperature is greater than 84°C, full shrinkage temperature is greater than 120°C. Operating temperature is -55°C to +125°C. Tensile strength is 10.4 MPa, dielectric strength is 15 kV/mm. Manufacture specification is ISO 9001. Flammability is flame retardant. Approval is UL approved. Supplied format is flat and can be cut with scissors or a sharp knife. Exact quantities and sizes included: 80 pcs x 1.5 mm x 45 mm yellow, 80 pcs x 2.0 mm x 45 mm blue, 80 pcs x 2.0 mm x 45 mm black, 60 pcs x 3.0 mm x 45 mm green, 50 pcs x 4.0 mm x 45 mm red, 50 pcs x 4.0 mm x 45 mm black, 30 pcs x 5.0 mm x 45 mm black, 20 pcs x 6.0 mm x 45 mm yellow, 20 pcs x 8.0 mm x 45 mm red, 20 pcs x 10.0 mm x 45 mm green, 20 pcs x 10.0 mm x 45 mm blue, 20 pcs x 10.0 mm x 45 mm black.
