MAGURA HYDRAULIC CLUTCH 10.5, 2700186 ASSEMBLY SERIE 167

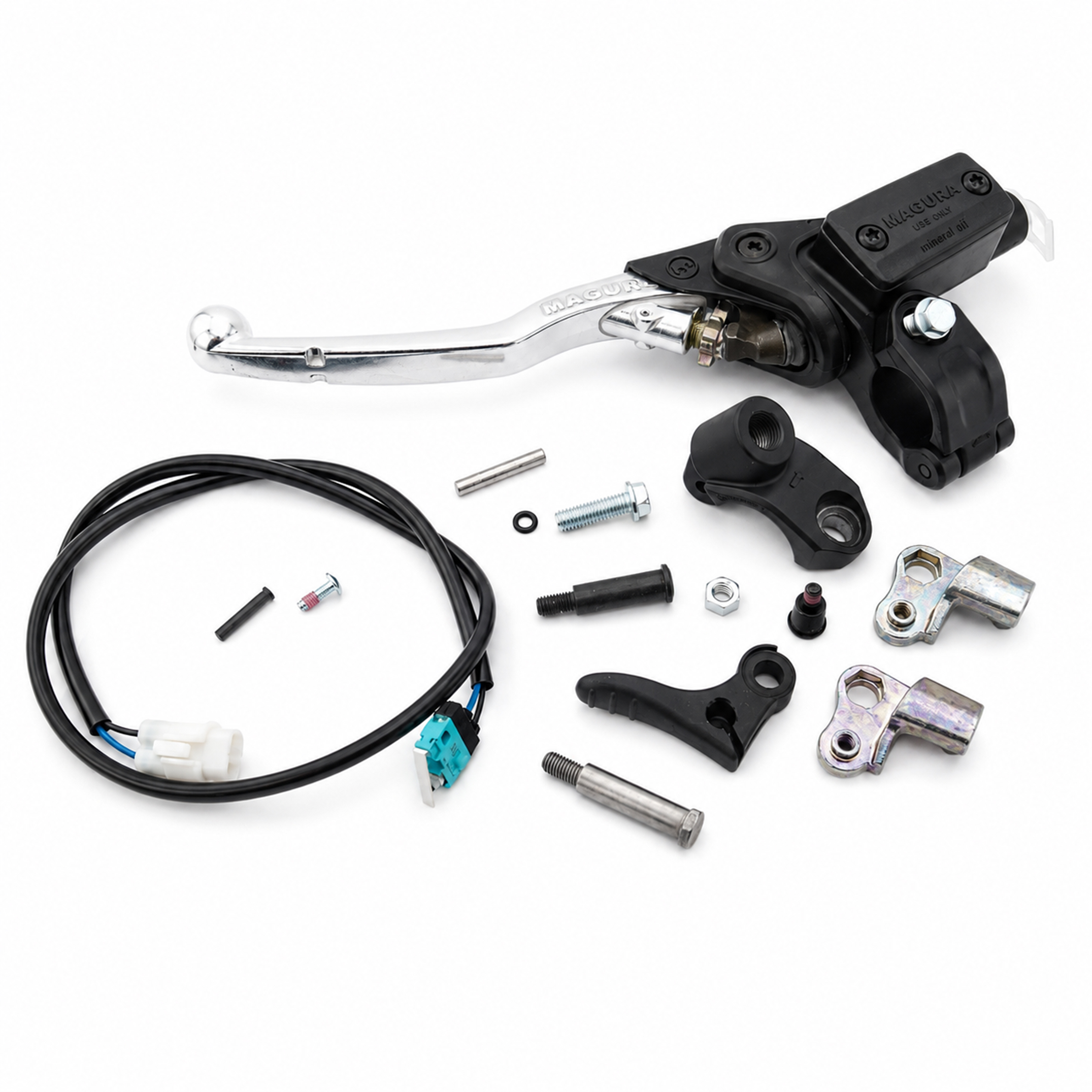

MAGURA 2700186 167 Series Hydraulic Clutch Master Cylinder. 10.5mm piston bore for mineral oil use only. Universal fit with a folding, spring-loaded, unbreakable style silver clutch lever featuring a steel reach adjust screw. Includes hot start lever with cable socket plate and threaded cable socket plate. One piece aluminum cylinder with reservoir. Max stroke 13.8mm. Lever ratio 1:4. Tubing fitting M10x1. Black body with silver lever blade measuring 146mm. Includes optional mirror mounting bracket and switch. Part No. 13-7940.MA.
- SKU
- 13-7940.MA
- Brand
- Magura
- Availability
- Out of Stock
FULL DESCRIPTION
Magura Hydraulic Clutch Master Cylinder Assembly - 10.5mm Bore
Upgrade your motorcycle's clutch system with the Magura Hydraulic Clutch Master Cylinder Assembly. Engineered for superior performance and durability, this master cylinder is designed for use with mineral oil exclusively.
Key Features:
- Piston Bore Size: 10.5mm, providing optimal hydraulic pressure for smooth clutch engagement.
- Material: Constructed with an ultra-strong, forged, one-piece aluminum cylinder for exceptional resilience.
- Lever Design: Features a spring-loaded, fold-back clutch lever designed for break-away strength and includes a steel reach adjust screw for personalized comfort.
- Hot Start Lever: Includes a hot start lever with a cable socket plate, specifically designed for threaded hot start cables found on select models.
- Reservoir: Integrated reservoir for a clean and streamlined appearance.
- Stroke: Maximum stroke of 13.8mm ensures full clutch disengagement.
- Lever Ratio: 1:4 lever ratio for efficient hydraulic operation.
- Tubing Fitting: Standard M10x1 tubing fitting for easy connection.
- Aesthetics: Features a sleek black body with a distinct silver lever blade measuring 146mm.
- Included Accessories: Comes with an optional mirror mounting bracket and switch for added convenience.
- Mineral Oil Only: Crucially, this master cylinder is designed and intended for use with mineral oil only.
This Magura master cylinder assembly is built to withstand the demands of off-road riding and provides a reliable and responsive clutch control experience.
