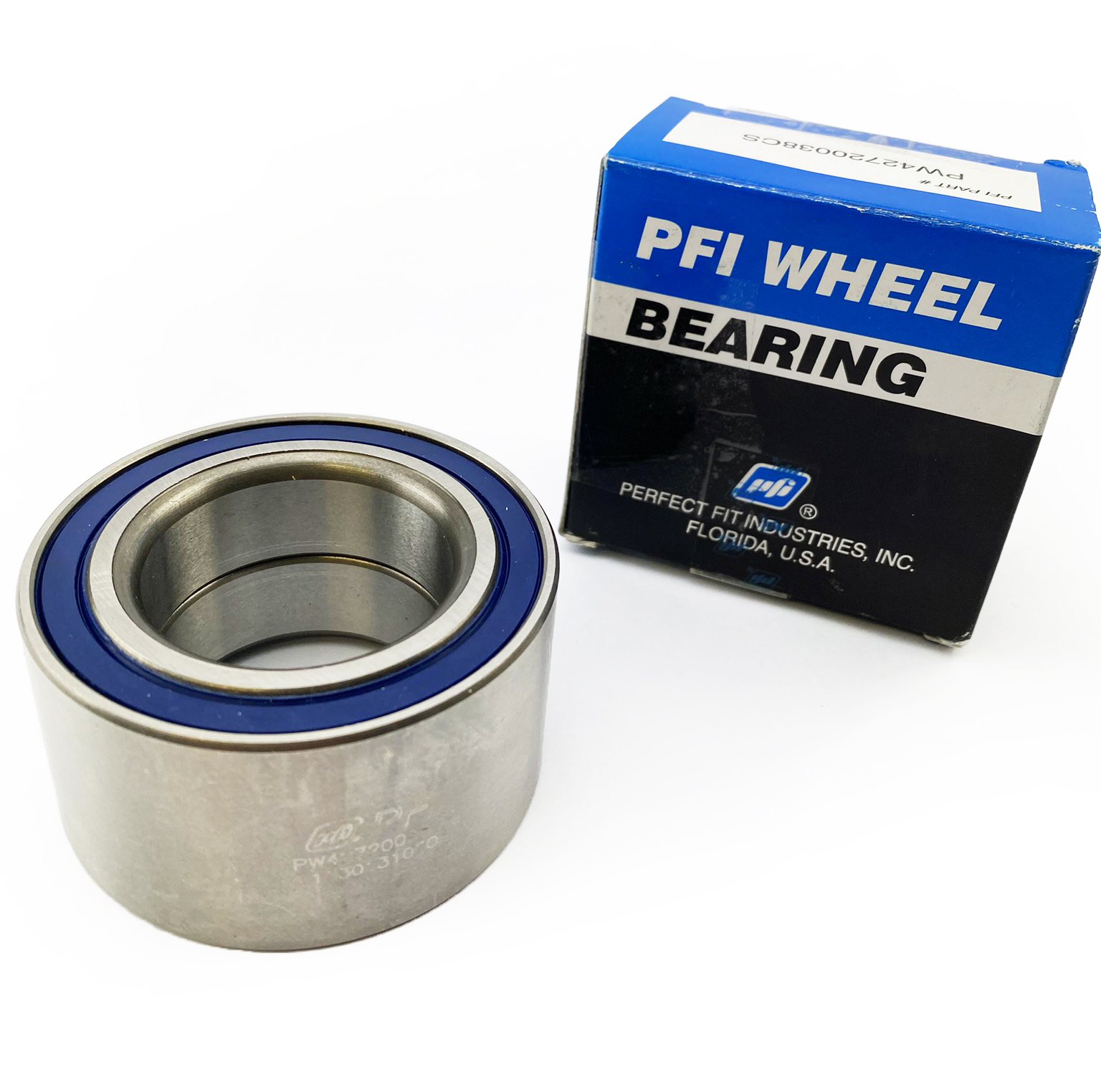

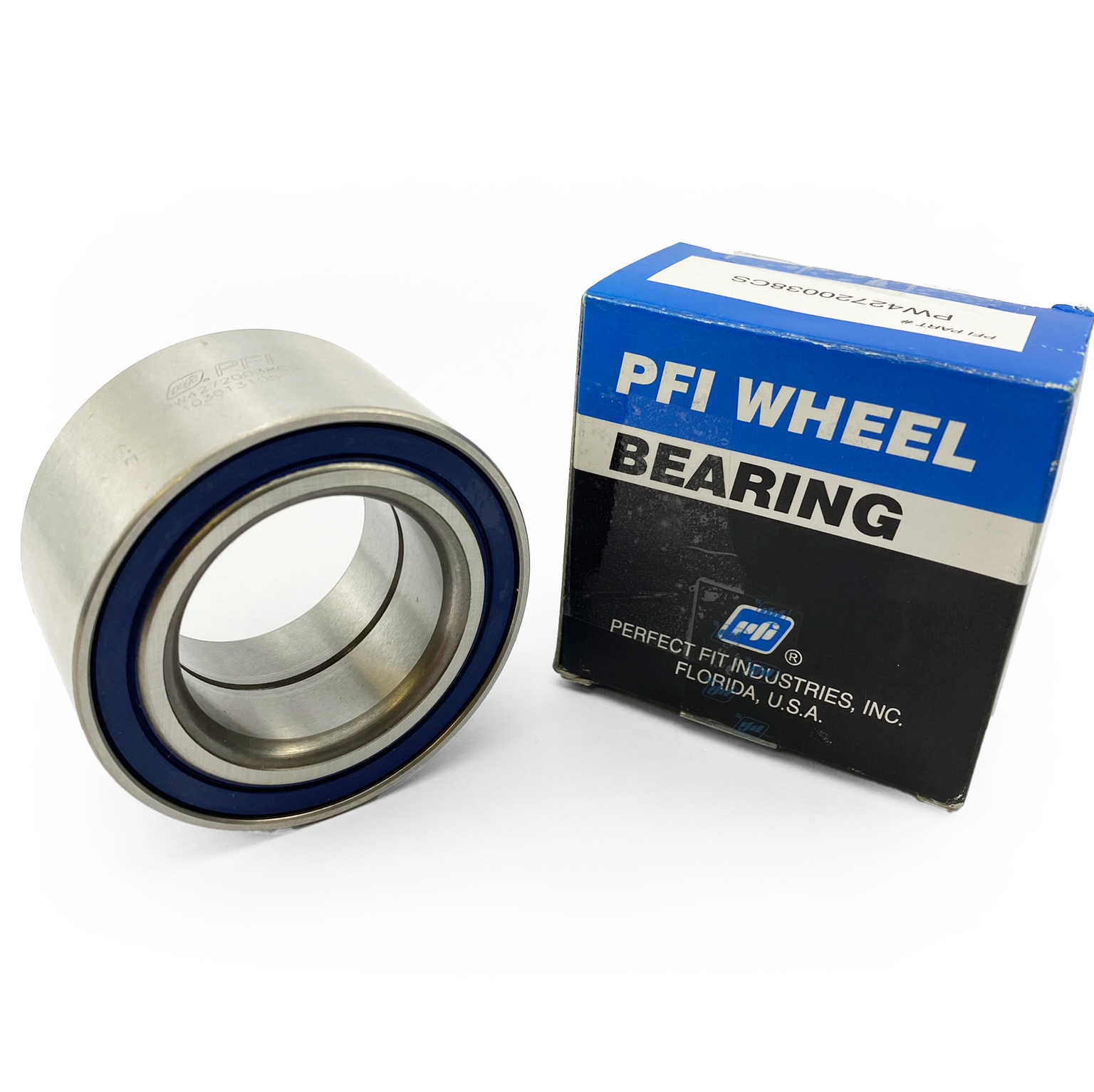

PFI WHEEL BEARING SEALED PW42720038CS 42x72x38mm EACH
PFI PW42720038CS is a double row deep groove ball bearing with contact seals on both sides. It is pre-lubricated with high-performance grease for extended service intervals. The bearing is made of hardened and ground bearing steel, typically AISI 52100 Chrome steel, with a reinforced polyamide or steel cage depending on application requirements. Its dimensions are a bore diameter of 42 mm, outer diameter of 72 mm, and width of 38 mm. It offers an approximate dynamic load rating of 42,000 - 48,000 N and a static load rating of 34,000 - 39,000 N. The limiting speed with grease is up to 7,000 RPM, and the operating temperature range is -30°C to +120°C. This bearing is suitable for automotive wheel hubs, electric motors, gearboxes, transmissions, conveyor systems, agricultural and construction machinery, and industrial pumps and compressors. It provides a compact design, enhanced load capacity, reduced maintenance, high precision, and reliability.
- SKU
- 09-8061.DR
- Brand
- Dirt Racing
- Availability
- In Stock (4)
FULL DESCRIPTION
PFI PW42720038CS Double Row Deep Groove Ball Bearing
The PFI PW42720038CS is a high-precision double row deep groove ball bearing engineered for demanding applications requiring superior load capacity, extended durability, and high-speed operation. This bearing is constructed to strict quality specifications, making it suitable for automotive, industrial, and general mechanical systems where compact size and unwavering reliability are critical.
Key Features:
- Bearing Type: Double Row Deep Groove Ball Bearing
- Manufacturer: PFI Bearings
- Model Number: PW42720038CS
- Design: Features a double row configuration to effectively distribute radial and axial loads.
- Sealing: Equipped with contact seals on both sides, typically made of rubber or nitrile, to prevent ingress of dust and contaminants and to retain internal lubricant.
- Lubrication: Comes pre-lubricated with a high-performance grease to ensure extended service intervals.
- Material: Manufactured from hardened and ground bearing steel (commonly AISI 52100 / Chrome steel) for enhanced wear resistance and a long operational life.
- Cage Material: The cage is constructed from reinforced polyamide or steel, chosen to suit specific application demands.
Technical Specifications:
- Bore Diameter: 42 mm
- Outer Diameter: 72 mm
- Width: 38 mm
- Dynamic Load Rating: Approximately 42,000 to 48,000 N (exact value may vary with design).
- Static Load Rating: Approximately 34,000 to 39,000 N.
- Limiting Speed (Grease): Up to 7,000 RPM, contingent on the specific application.
- Operating Temperature Range: -30°C to +120°C (this range can be influenced by the lubricant and sealing used).
Common Applications:
- Automotive wheel hubs
- Electric motors
- Gearboxes and transmissions
- Conveyor systems
- Agricultural and construction machinery
- Industrial pumps and compressors
Benefits:
- Offers a compact design ideal for installations with limited space.
- Provides increased load-carrying capability due to its dual-row design.
- Reduces maintenance requirements through sealed and pre-lubricated features.
- Delivers high precision and reliability under combined axial and radial loads.
- Ensures a long service life, even in challenging environmental conditions.
The PFI PW42720038CS bearing offers a superior combination of performance, robustness, and operational efficiency, positioning it as a preferred component for both original equipment manufacturers and maintenance specialists.
