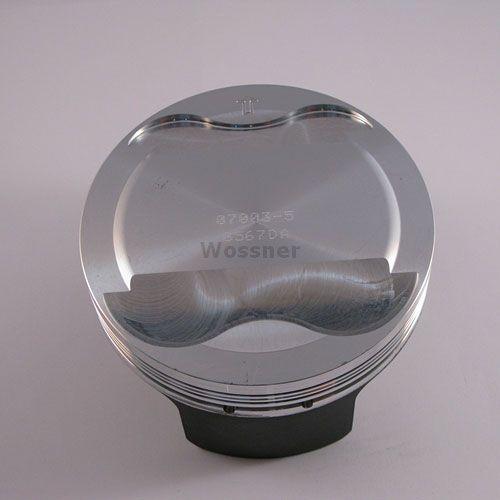

PISTON 00-14 DRZ400 90.00 HC, FORGED WOSSNER KIT 8567DA 13001-S006, 12111-29F00-0F0
Wossner forged piston kit with a 90.00 mm piston size and high compression design. Engineered for superior strength and optimal heat transfer. The elliptical design ensures uniform bearing surface under heat expansion, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany. Features forged construction, optimized heat transfer, elliptical design, and high compression. Specifications include a bore of 89.94 mm, displacement of 398 cm³, stroke of 62.60 mm, clearance of 0.06 mm, Wossner compression ratio of 13.50:1, OEM compression ratio of 12.50:1, dome volume of +0.50 cm³, compression height of 25.30 mm, and a theoretical weight of 247.00 g. Cross-reference OEM part numbers: Lock CW20, Pin WP029, Ring Set 900XSY, OEM Part Numbers 13001-S006, 4714M09000, 12111-29F00-0F0.
- SKU
- 56-W030.A.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner Forged Piston Kit for High Compression Performance
Enhance your vehicle's performance with this Wossner forged piston kit, meticulously engineered for superior strength and high compression. This piston is designed to optimize heat transfer from the combustion chamber to the cylinder walls, ensuring efficient operation. Its advanced elliptical design actively works to provide a uniform bearing surface even under heat expansion. This intelligent design minimizes localized pressure and distributes thrust loads evenly, effectively preventing piston collapse and maintaining integrity under stress.
Key Features:
- Forged Construction: Delivers exceptional strength and enhanced durability for demanding applications.
- Optimized Heat Transfer: Promotes efficient cooling by channeling heat away from the combustion chamber.
- Elliptical Design: Prevents localized pressure points and reduces the risk of piston collapse by ensuring even load distribution.
- High Compression: Engineered for a higher compression ratio, boosting engine efficiency and power output.
Specifications:
- Bore: 89.94 mm
- Piston Size: 90.00 mm
- Displacement: 398 cm³
- Stroke: 62.60 mm
- Clearance: 0.06 mm
- Wossner Compression Ratio: 13.50:1
- OEM Compression Ratio: 12.50:1
- Dome Volume: +0.50 cm³
- Compression Height: 25.30 mm
- Theoretical Weight: 247.00 g
Included Components:
- Lock: CW20
- Pin: WP029
- Ring Set: 900XSY
Cross-Reference OEM Part Numbers:
- 13001-S006
- 4714M09000
- 12111-29F00-0F0
