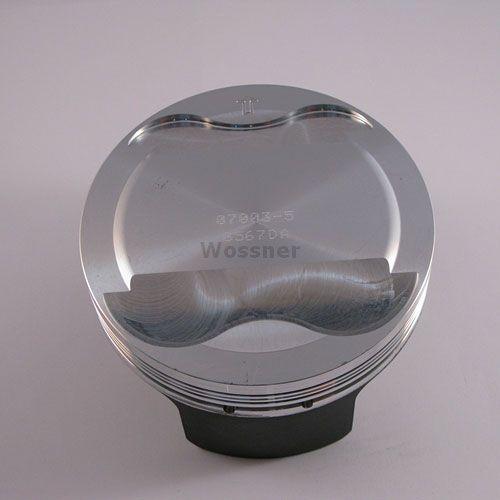

PISTON 00-14 DRZ400 95.50 HC, FORGED WOSSNER KIT 8567D550
Wossner forged piston kit 8567D550 with 95.50 mm piston size and 13.50:1 compression ratio. Engineered for superior strength and high compression performance, with optimal heat transfer from the combustion chamber to cylinder walls. Features an elliptical design for uniform bearing surface under heat expansion, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany. Bore 94.44 mm, displacement 398 cm³, stroke 62.60 mm, clearance 0.06 mm. OEM compression ratio 12.50:1, dome volume +0.50 cm³, compression height 25.30 mm, theoretical weight 247.00 g. Includes lock CW20, pin WP029, and ring set 900XSY.
- SKU
- 56-W030+550.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner High Compression Forged Piston Kit
Enhance your motorcycle's performance with this Wossner forged piston kit. Engineered for superior strength and high compression, this piston is designed to optimize heat transfer from the combustion chamber to the cylinder walls. Its innovative elliptical design ensures a uniform bearing surface even under heat expansion, effectively reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured in Germany for exceptional quality and reliability.
Key Features:
- Forged construction for superior durability and strength.
- Optimized heat transfer for improved engine cooling and performance.
- Elliptical piston design to prevent localized pressure and piston collapse.
- High compression ratio for increased engine efficiency and power output.
Specifications:
- Piston Diameter: 95.50 mm
- Bore Size: 94.44 mm
- Theoretical Weight: 247.00 g
- Compression Height: 25.30 mm
- Dome Volume: +0.50 cm³
- Clearance: 0.06 mm
- Wossner Compression Ratio: 13.50:1
- OEM Compression Ratio: 12.50:1
- Stroke: 62.60 mm
- Displacement: 398 cm³

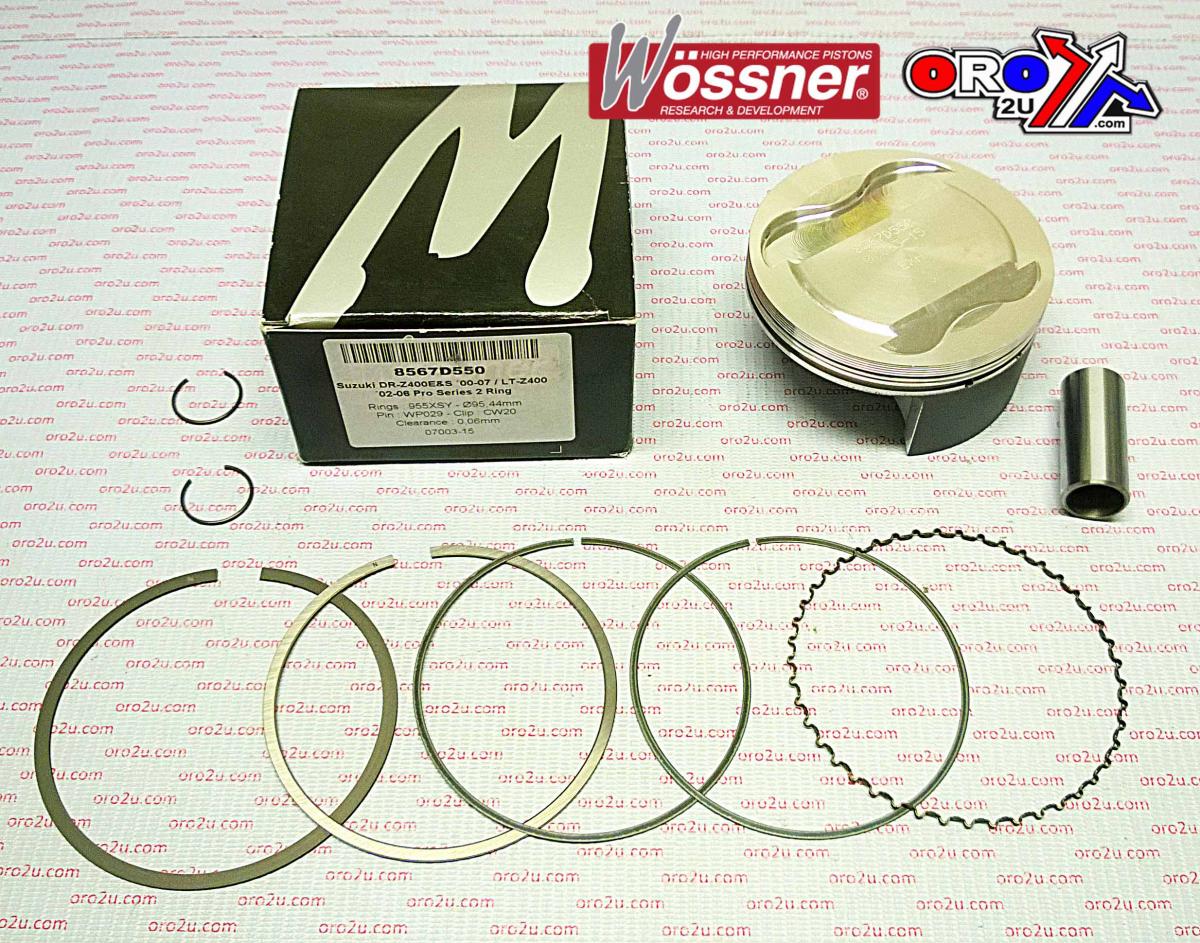

Included Components:
- Piston
- Lock: CW20
- Pin: WP029
- Ring Set: 900XSY
