PISTON 92-94 KTM350 89.00 B, 8506DB WOSSNER FORGED
Wossner 89.01mm forged piston kit for durability and high performance. Engineered to optimize heat transfer and ensure uniform bearing surface expansion, it minimizes localized pressure and distributes thrust loads evenly, preventing piston collapse. Manufactured in Germany, this piston kit is built for reliability and precision. Features include a forged piston for superior strength and durability, optimized heat transfer for efficient combustion, elliptical design for even pressure distribution, and German manufacturing. Specifications: Bore Size 89.01mm, Actual Bore 88.95mm, Stroke 64.00mm, Piston Clearance 0.06mm, Compression Ratio 10.00:1 (OEM), Dome Volume +13.60cm³, Compression Height 26.50mm. Included Parts & Part Numbers: Lock CW22, Pin WP017, Ring Set 890XSY. Weight 486g.
- SKU
- 56-W013.B
- Brand
- Wossner
- Availability
- In Stock (2)
FULL DESCRIPTION

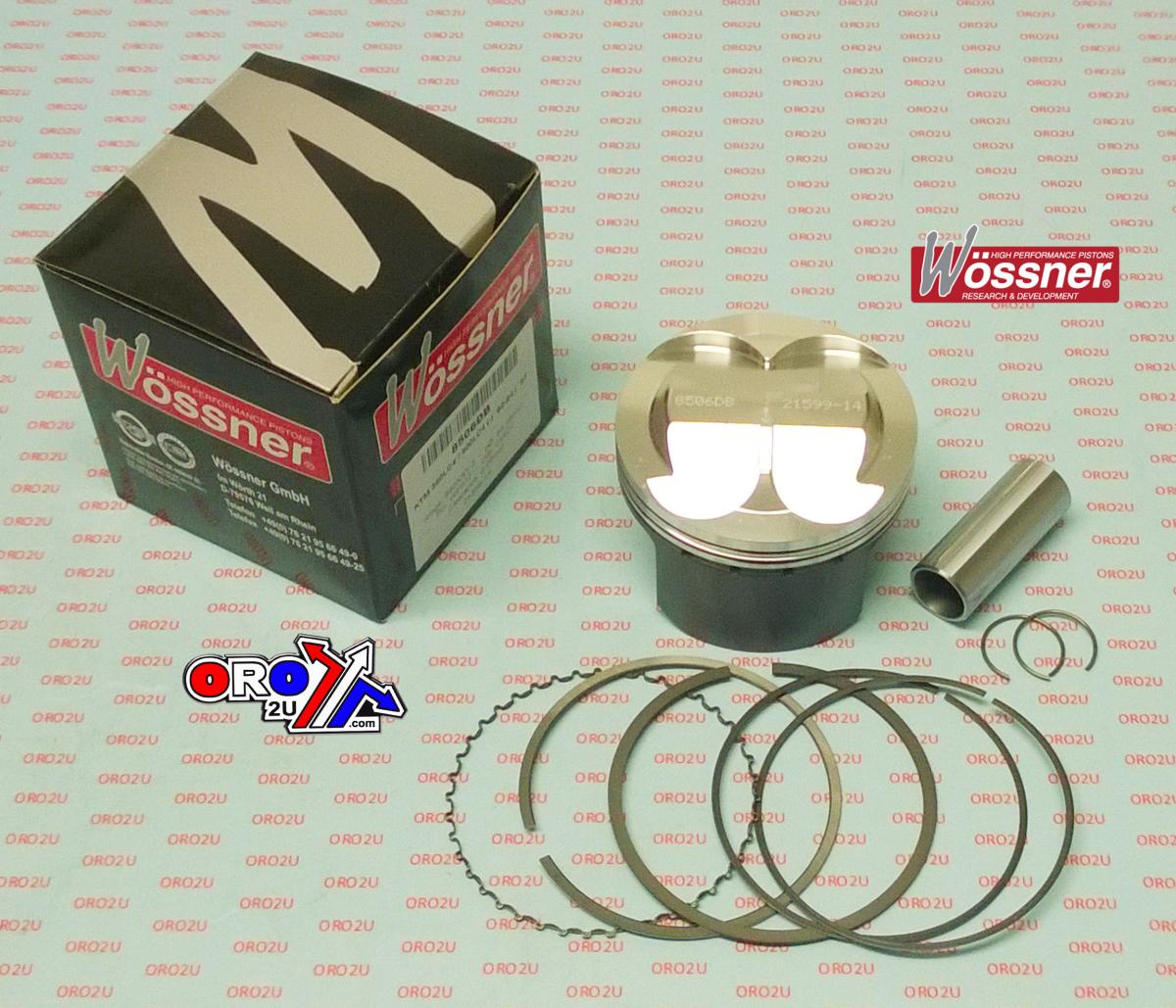

Wossner Forged Piston Kit 89.01mm
Experience superior strength and durability with this Wossner 89.01mm forged piston kit. Engineered in Germany, this high-performance piston is designed to optimize heat transfer for efficient combustion and minimize localized pressure by distributing thrust loads evenly. Its elliptical design ensures uniform bearing surface expansion, preventing piston collapse and guaranteeing reliability.
Key Features
- Forged piston construction for enhanced strength.
- Optimized heat transfer for improved combustion efficiency.
- Elliptical design promotes even pressure distribution and bearing expansion.
- Precision manufactured in Germany for superior quality.
- Designed to minimize localized pressure and prevent piston collapse.
Specifications
- Bore Size: 89.01mm
- Actual Bore: 88.95mm
- Stroke: 64.00mm
- Piston Clearance: 0.06mm
- Compression Ratio: 10.00:1 (OEM equivalent)
- Dome Volume: +13.60cm³
- Compression Height: 26.50mm
Included Components
- Lock: CW22
- Pin: WP017
- Ring Set: 890XSY
