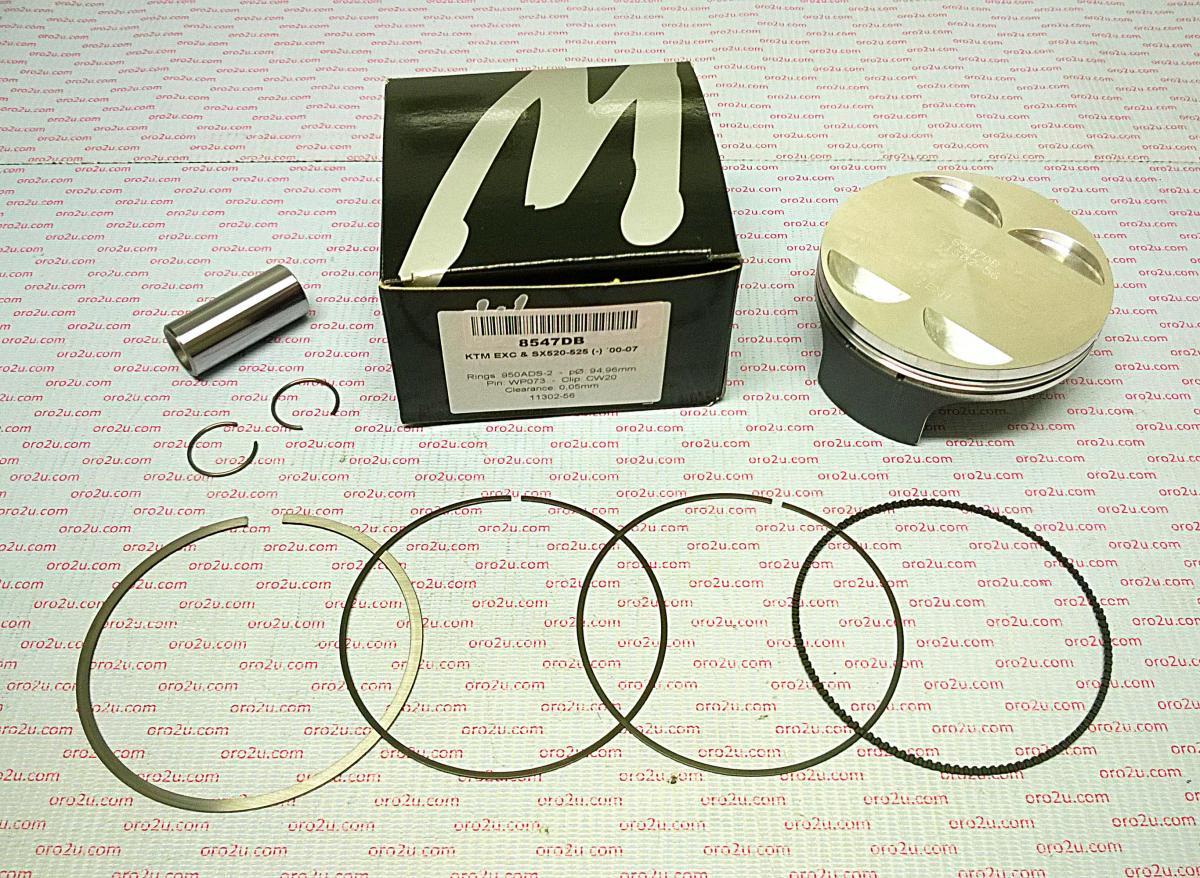

PISTON KIT 00-07 KTM520 525 96, WOSSNER 8547D100 BETA RR525

Wossner Forged Piston Kit 96mm Bore

Upgrade your engine's performance and durability with the Wossner forged piston kit. Engineered for high-performance applications, this piston kit offers superior strength and optimized heat transfer for improved engine efficiency and longevity. The advanced elliptical design ensures uniform bearing surface distribution under heat expansion, effectively reducing localized pressure and preventing piston collapse. Precision manufactured in Germany, Wossner pistons are built to the highest standards for exceptional reliability and performance.

Key Features:

• Forged Construction: Provides enhanced strength and durability over cast pistons, making it ideal for demanding applications.
• Optimized Heat Transfer: Designed to efficiently transfer heat to cylinder walls, contributing to better engine performance and cooling.
• Elliptical Design: Ensures even thrust load distribution across the bearing surface, minimizing wear and preventing deformation.
• German Engineering: Manufactured in Germany, guaranteeing precision, quality, and robust construction.

Specifications:

• Bore Size: 96mm
• Actual Bore: 95.95mm
• Display (cm³): 510
• Stroke (mm): 54.80
• Clearance (mm): 0.04
• Wossner Compression Ratio: 12.90:1
• OEM Compression Ratio: 12.80:1
• Dome Volume (cm³): 1.20
• Compression Height (mm): 19.50
• Lock Part Number: CW20
• Pin Part Number: WP038
• Ring Set Part Number: 960ADS-23
