PISTON KIT 00-07 XR650R 102.00, FORGED WOSSNER 8575D200
Wossner forged piston kit with a 102mm bore (101.94mm actual) is designed for the Honda XR650R (2000-2007). Engineered for strength and optimal heat transfer, the piston features an elliptical design that ensures even load distribution, reducing localized pressure and preventing piston collapse. Manufactured in Germany, it maintains OEM compression specifications. Features include forged construction for durability and high performance, optimized heat transfer to cylinder walls for improved efficiency, and an elliptical design that ensures a uniform bearing surface and prevents piston collapse. Specifications: Bore Size 102mm (101.94mm actual), Displacement 644 cm³, Stroke 82.60mm, Clearance 0.06mm, Compression Ratio OEM specification (10.00:1), Dome Volume -3.60 cm³, Compression Height 29.00mm. Cross-reference OEM part numbers: Piston Kit 8575D200, Lock CW23, Pin WP024, Ring Set 1020XSY.
- SKU
- 56-W4715.200.WO
- Brand
- Wossner
- Availability
- In Stock (2)
FULL DESCRIPTION

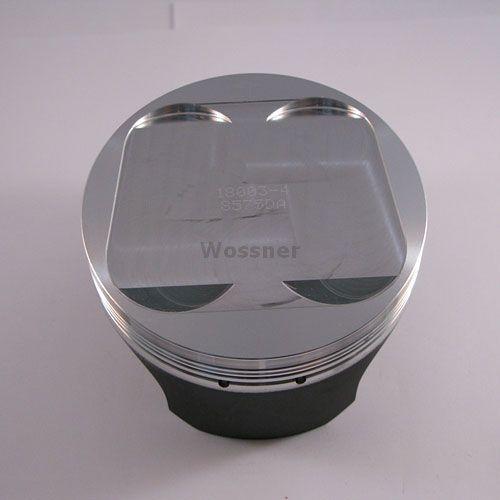

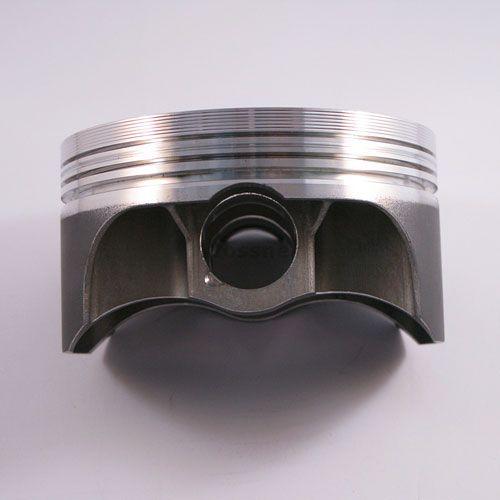

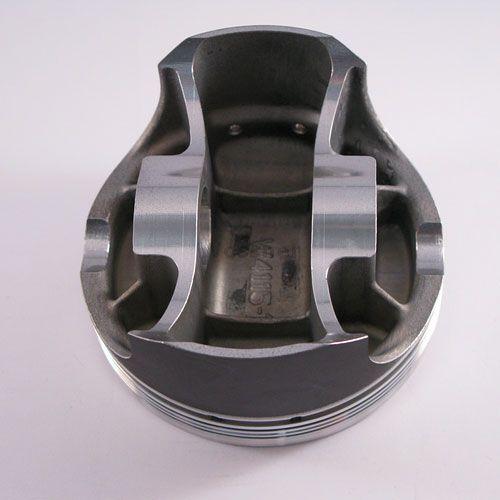

Wossner Forged Piston Kit for Honda XR650R
Elevate your Honda XR650R's performance with this high-quality Wossner forged piston kit. Engineered for durability and optimal heat transfer, this kit features a 102mm bore (actual 101.94mm) and an elliptical design to ensure even load distribution, reducing localized pressure and preventing piston collapse. Manufactured to exacting standards in Germany, this piston kit maintains OEM compression specifications for a reliable and powerful upgrade.
Key Features:
- Forged construction for superior strength and high-performance operation.
- Designed for optimized heat transfer to cylinder walls, enhancing efficiency.
- Elliptical piston design promotes a uniform bearing surface, preventing piston collapse.
- Precision manufactured in Germany, adhering to high-quality automotive standards.
- Maintains original equipment manufacturer (OEM) compression ratio and specifications.
Specifications:
- Bore Size: 102.00mm (101.94mm actual)
- Stroke: 82.60mm
- Clearance: 0.06mm
- Compression Ratio: 10.00:1 (OEM Specification)
- Dome Volume: -3.60 cm³
- Compression Height: 29.00mm

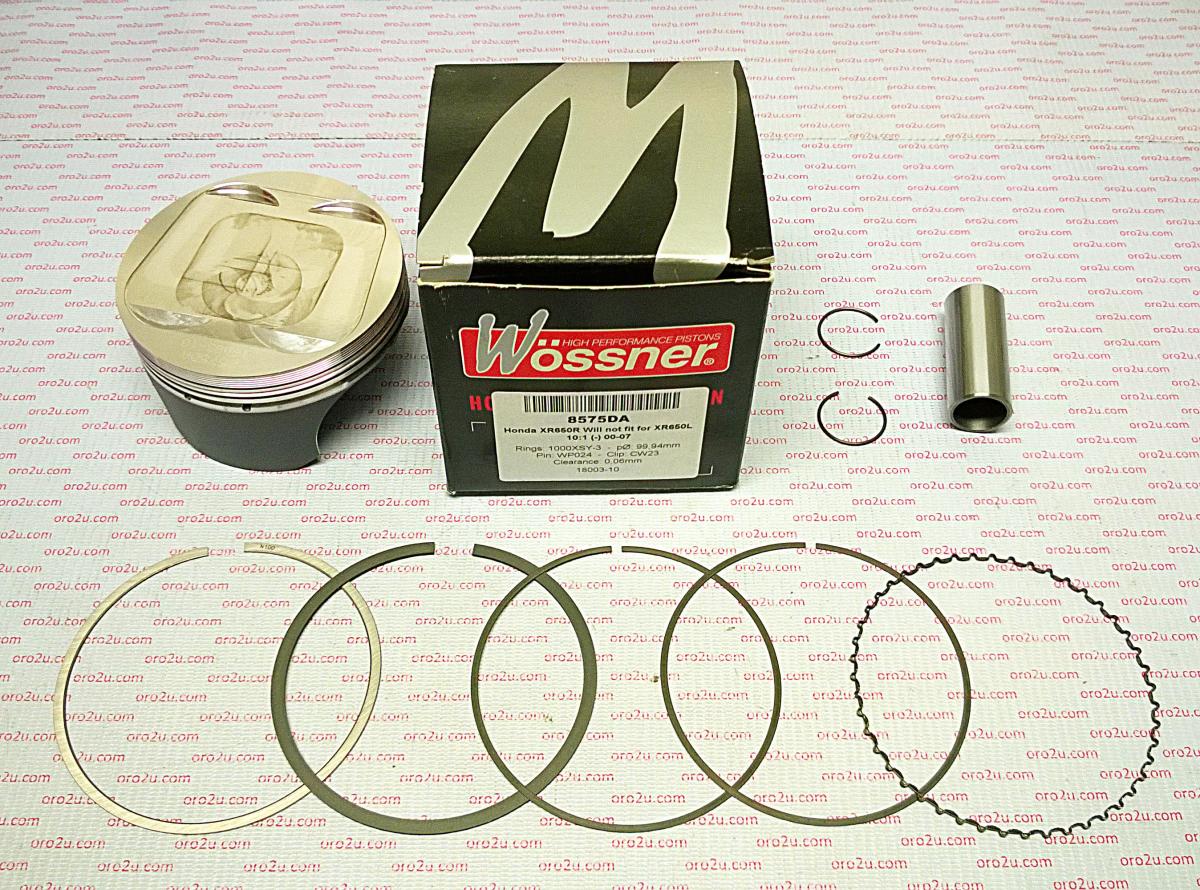

Included Components:
- Wossner Piston Kit
- Lock Ring (Part Number: CW23)
- Piston Pin (Part Number: WP024)
- Ring Set (Part Number: 1020XSY)
