PISTON KIT 02-05 TC TE 250 76, WOSSNER 8576DC HUSQVARNA
Wossner 76.00mm (75.98mm) forged piston kit designed for Husqvarna TE 250 and TC 610 models from 2002 to 2005. This piston ensures efficient heat transfer to the cylinder walls, providing uniform expansion and reducing localized pressure. The elliptical design distributes thrust loads evenly, preventing piston collapse. It features a hard Teflon skirt coating for improved fit and conformability to the cylinder bore. Manufactured in Germany, this piston meets high-quality standards for reliable performance. Features include superior strength and durability, optimized heat transfer for improved combustion efficiency, an elliptical design for uniform bearing surface and reduced localized pressure, and a hard Teflon skirt coating for enhanced fit and conformability. Precision-engineered to prevent piston collapse. Specifications include a bore size of 76.00mm (75.98mm), oversize +0.02mm, displacement 249cc, stroke 55.00mm, clearance 0.04mm, Wossner compression ratio 12.90:1, OEM compression ratio 12.50:1, dome volume -3.10cm³, compression height 23.50mm, lock part number CW16, pin part number WP059, and ring set part number 760XAS. The theoretical weight is not specified.
- SKU
- 56-W117.C
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION

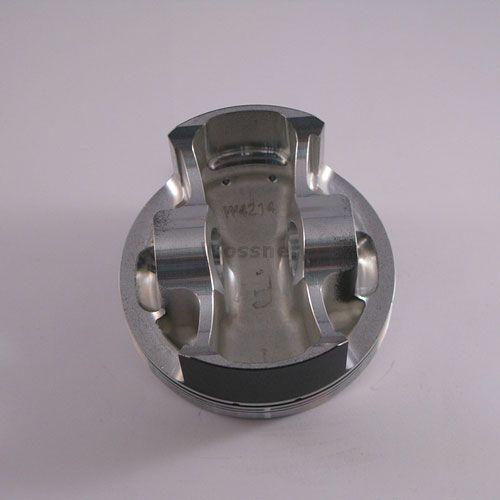

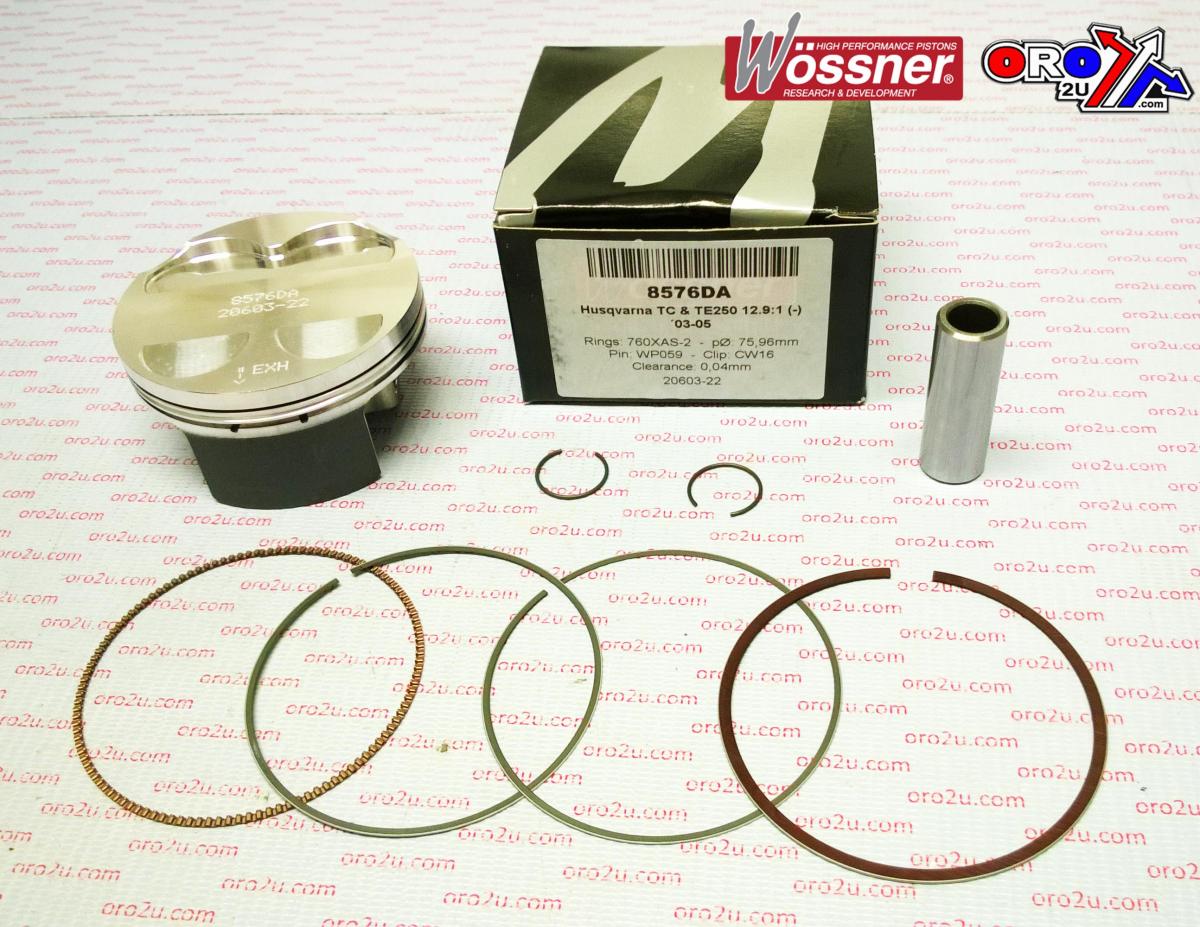

Wossner Forged Piston Kit 76.00mm
Enhance your motorcycle's performance and durability with this Wossner forged piston kit. Engineered for precision and strength, this 76.00mm piston is designed to optimize combustion efficiency and ensure reliable operation. Its advanced design promotes uniform heat transfer and reduces localized pressure, contributing to a longer lifespan for your engine components.
Key Features:
- Forged Construction: Crafted from high-quality forged materials for superior strength and resistance to wear.
- Optimized Heat Transfer: Facilitates efficient heat dissipation to the cylinder walls, reducing hot spots and promoting consistent performance.
- Elliptical Design: Distributes thrust loads evenly, creating a uniform bearing surface and minimizing localized pressure for enhanced durability.
- Teflon Skirt Coating: Features a hard Teflon coating on the skirt for improved fit and conformability to the cylinder bore, reducing friction and noise.
- Precision Engineering: Designed to prevent piston collapse under demanding conditions, ensuring reliable engine operation.
- High Compression Ratio: Offers an increased compression ratio (12.90:1) compared to OEM (12.50:1) for a noticeable boost in power.
- German Manufacturing: Produced in Germany, adhering to rigorous quality standards for exceptional performance and reliability.
Specifications:
- Bore Size: 76.00mm (75.98mm)
- Oversize: +0.02mm
- Displacement: 249cc
- Stroke: 55.00mm
- Clearance: 0.04mm
- Wossner Compression Ratio: 12.90:1
- OEM Compression Ratio: 12.50:1
- Dome Volume: -3.10cm³
- Compression Height: 23.50mm
- Lock Part Number: CW16
- Pin Part Number: WP059
- Ring Set Part Number: 760XAS
