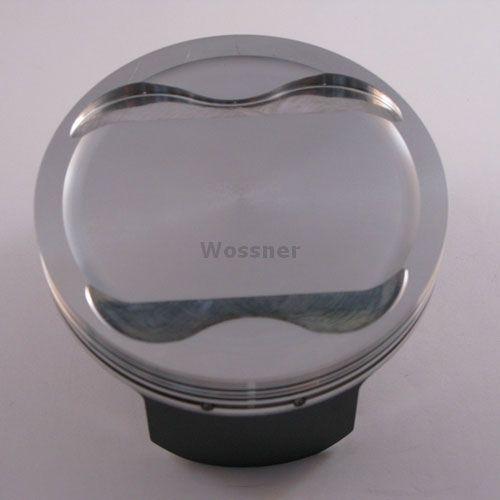

PISTON KIT 03-04 GAS GAS 450, WOSSNER 8585DA FORGED
Wossner forged piston kit with superior strength and performance. Engineered for optimal heat transfer from the combustion chamber to cylinder walls. The elliptical design ensures a uniform bearing surface under heat expansion, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany. Features: Forged construction for enhanced durability. Optimized heat transfer for improved performance. Elliptical design prevents localized pressure and piston collapse. OEM compression ratio for direct replacement. Specifications: Bore 94.95 mm, Piston Size 95.00 mm, Displacement 449 cm³, Stroke 62.60 mm, Clearance 0.05 mm, Wossner Compression Ratio OEM, OEM Compression Ratio Not specified, Dome Volume -6.40 cm³, Compression Height 25.50 mm. Cross-Reference OEM Part Numbers: Lock CW20, Pin WP038, Ring Set 950XSY.
- SKU
- 56-W025.WO.A
- Brand
- Wossner
- Availability
- In Stock (3)
FULL DESCRIPTION
Wossner Forged Piston Kit
Upgrade your engine's performance and durability with this Wossner forged piston kit. Engineered in Germany, this piston is designed for superior strength and optimal heat transfer from the combustion chamber to the cylinder walls. Its advanced elliptical design ensures uniform bearing surface under heat expansion, effectively reducing localized pressure and evenly distributing thrust loads to prevent piston collapse under extreme conditions.
Key Features:
- Forged Construction: Provides enhanced strength and longevity compared to cast pistons.
- Optimized Heat Transfer: Facilitates efficient heat dissipation for improved engine performance and reliability.
- Elliptical Design: Prevents localized pressure points and ensures even distribution of thrust loads, mitigating the risk of piston collapse.
- OEM Compression Ratio: Designed for a direct replacement experience, maintaining original engine performance characteristics.
Specifications:
- Bore: 94.95 mm
- Piston Size: 95.00 mm
- Displacement: 449 cm³
- Stroke: 62.60 mm
- Clearance: 0.05 mm
- Dome Volume: -6.40 cm³
- Compression Height: 25.50 mm

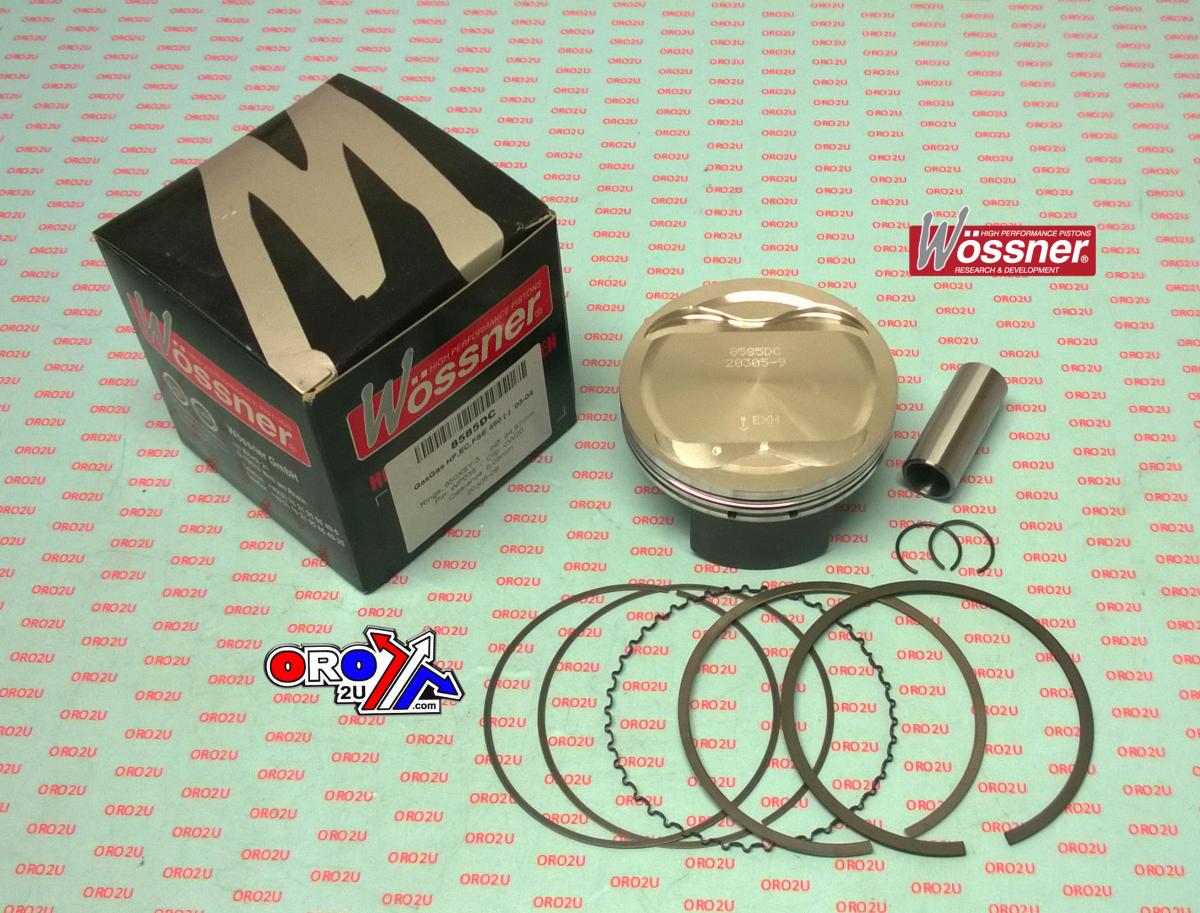

Included Components:
- Lock: CW20
- Pin: WP038
- Ring Set: 950XSY
