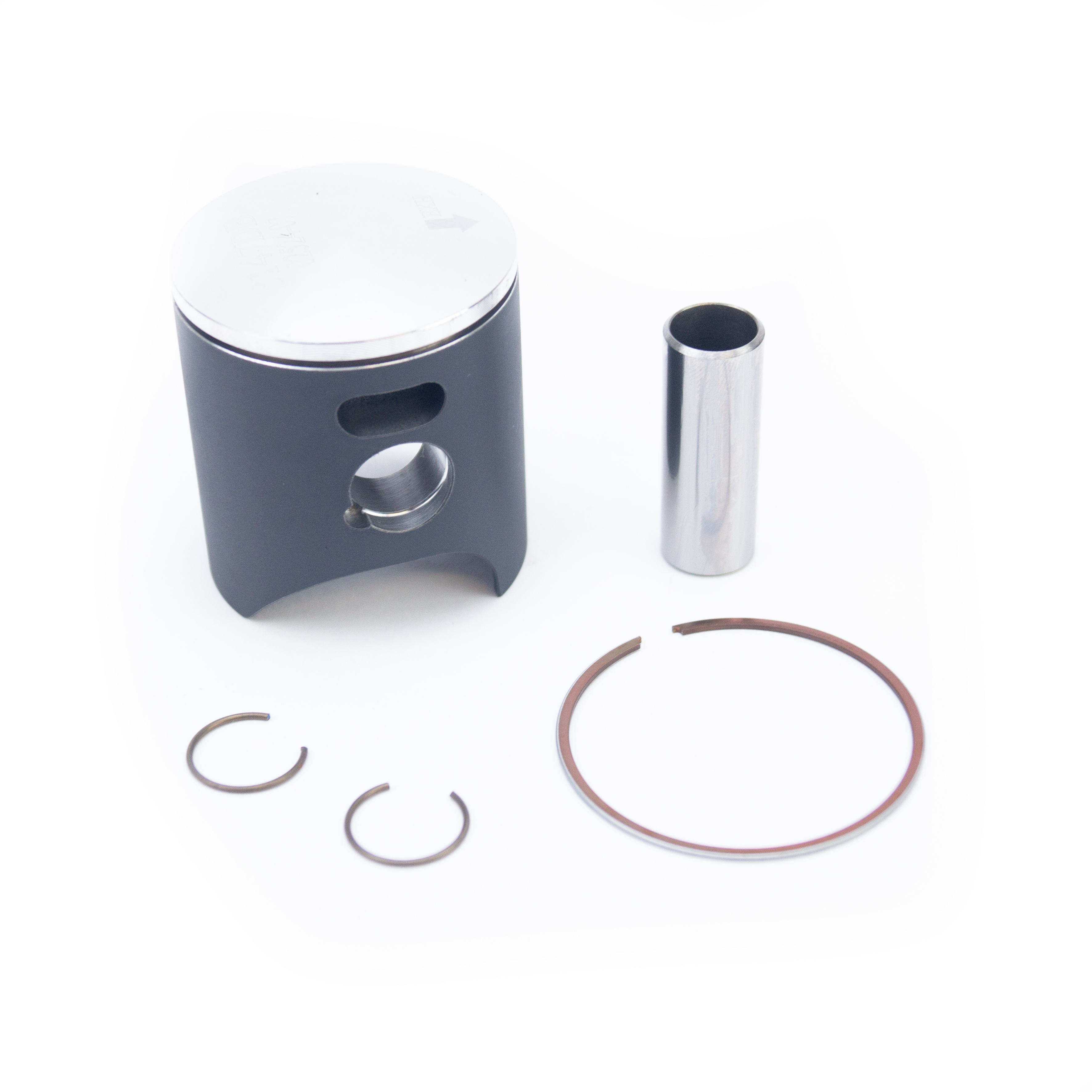

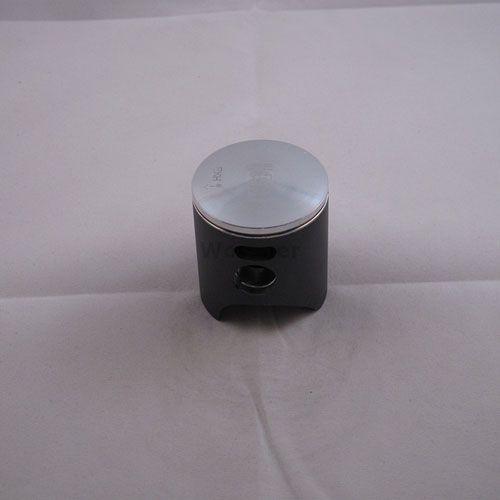

PISTON KIT 03-23 SX85 47.00 C, WOSSNER 8147DC FORGED KIT
Wossner 8147DC forged piston kit with a 47mm bore and 46.97mm specification. This kit features a +0.02 clearance. Wossner forged pistons are designed for superior strength and optimal heat transfer from the combustion chamber to the cylinder walls. They are elliptically designed to ensure a uniform bearing surface under heat expansion, preventing piston collapse by distributing thrust loads evenly. Made in Germany. This piston kit includes lock part number CW14, pin part number WP058, ring set part number RSV4700, rod part number P2065 2014 onwards, needle bearing N1006, and two main bearings MB6304C3. The engine displacement is 84 cm3, hub stroke is 48.95mm, and clearance is 0.05mm. Compression height is 24.00mm. Cross reference numbers: 47030007100 I / 47030007100 II. Weight is 122 grams.
- SKU
- 56-W012.C.WO
- Brand
- Wossner
- Availability
- In Stock (3)
FULL DESCRIPTION
Wossner 8147DC Forged Piston Kit 47.00mm Bore
Upgrade your engine's performance and durability with the Wossner 8147DC Forged Piston Kit. Engineered in Germany, Wossner pistons are renowned for their superior strength and advanced design, offering an optimal path for combustion chamber heat transfer to cylinder walls.
This kit features an elliptical design that provides a more uniform bearing surface as the piston heats and expands. This eliminates localized pressure, distributes thrust loads more evenly, and helps prevent piston collapse, ensuring consistent performance and longevity.
Key Features:
- Forged piston construction for exceptional strength and durability.
- Elliptically designed for uniform bearing surface and even thrust load distribution.
- Engineered for optimal combustion chamber heat transfer.
- Precision manufacturing ensures high quality and performance.
- Made in Germany.
Specifications:
- Bore Size: 47.00mm
- Oversize: +0.02mm
- Kit Part Number: 8147DC
- Display Displacement: 84 cm3
- Stroke: 48.95 mm
- Clearance: 0.05 mm
- Compression Height: 24.00 mm
