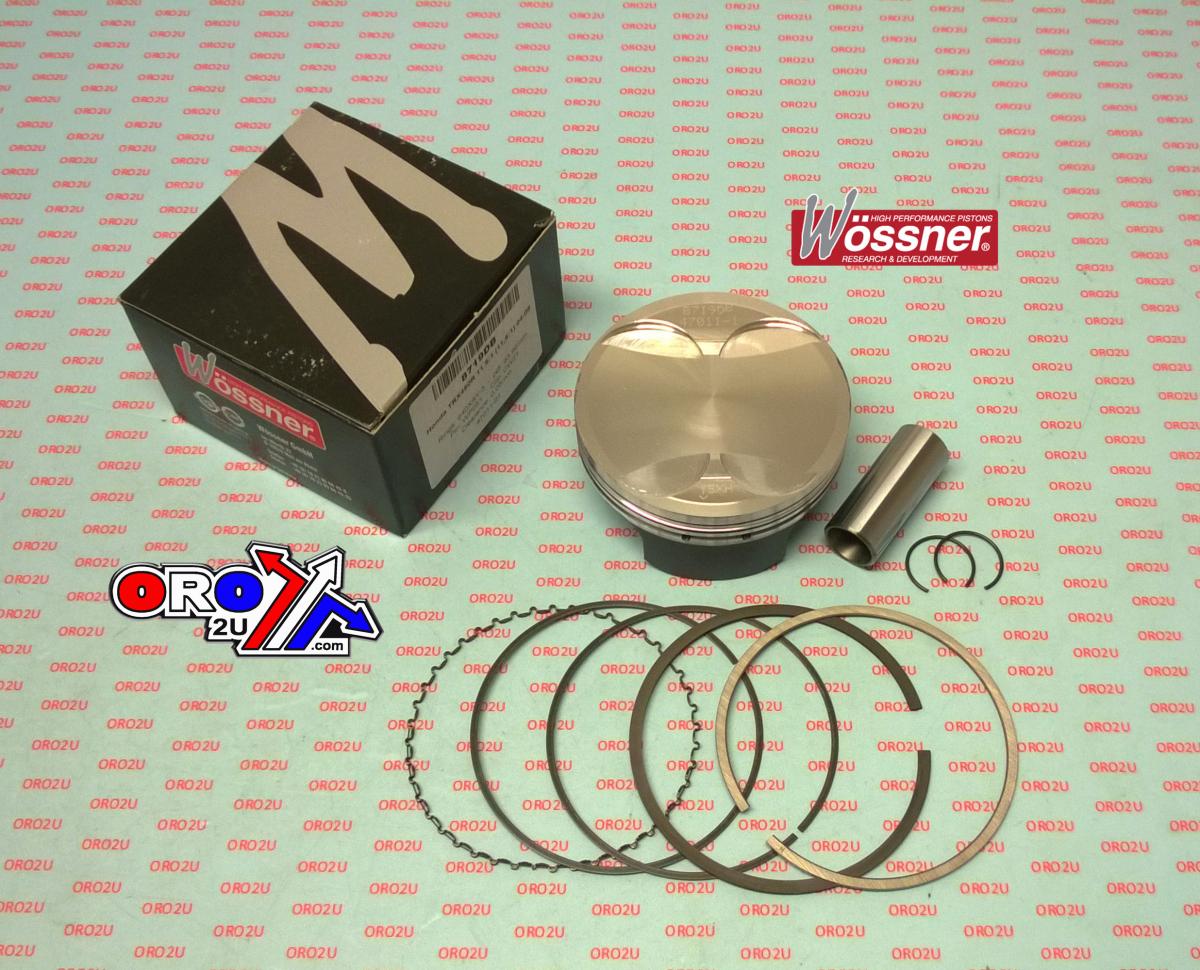

PISTON KIT 04-05 TRX450R HC, FORGED WOSSNER 8719DB 11.5
Wossner 94.01mm high-compression forged piston kit is designed for enhanced engine performance. Engineered for optimal heat transfer, it ensures efficient cooling of the combustion chamber. The elliptical design provides a uniform bearing surface, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany for precision and reliability. Features include high-compression design for increased engine performance, forged construction for enhanced strength and longevity, optimized heat transfer for efficient cooling, and elliptical design to prevent piston collapse and ensure even load distribution. Specifications: Bore Size: 94.01mm, Actual Bore Diameter: 93.96mm, Displacement: 450 cm³, Stroke: 64.80mm, Clearance: 0.05mm, Wossner Compression Ratio: 11.50:1, OEM Compression Ratio: 10.50:1, Dome Volume: +3.60 cm³, Compression Height: 26.00mm. Gasket Part Number: D4009, Lock Part Number: CW21, Pin Part Number: WP051, Ring Set Part Number: 940XSY, Rod Part Number: P4022. Wossner Part No: 8719DB.
- SKU
- 56-W4849.B.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION

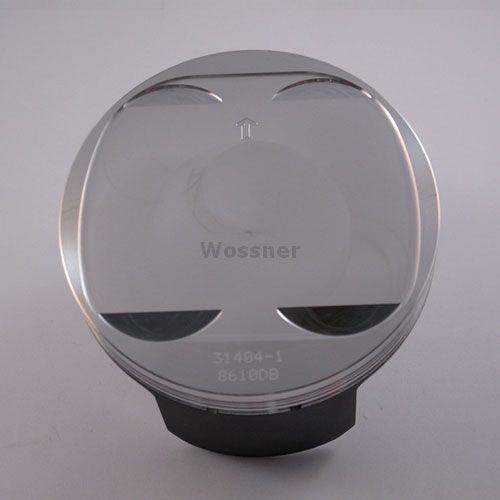

Wossner 94.01mm High-Compression Forged Piston Kit
Enhance your engine's performance with the Wossner high-compression forged piston kit. This precision-engineered piston is designed for optimal heat transfer, ensuring efficient cooling of the combustion chamber. Its advanced elliptical design creates a uniform bearing surface, which minimizes localized pressure and distributes thrust loads evenly to prevent piston collapse. Manufactured in Germany, this piston kit offers superior precision and reliability for your vehicle.
Key Features:
- High-compression design for increased engine performance.
- Forged construction provides exceptional strength and longevity.
- Optimized heat transfer for efficient combustion chamber cooling.
- Elliptical design prevents piston collapse and ensures even load distribution.
- Made in Germany to exacting quality standards.
Specifications:
- Bore Size: 94.01mm
- Actual Bore Diameter: 93.96mm
- Displacement: 450 cm³
- Stroke: 64.80mm
- Clearance: 0.05mm
- Wossner Compression Ratio: 11.50:1
- OEM Compression Ratio: 10.50:1
- Dome Volume: +3.60 cm³
- Compression Height: 26.00mm
