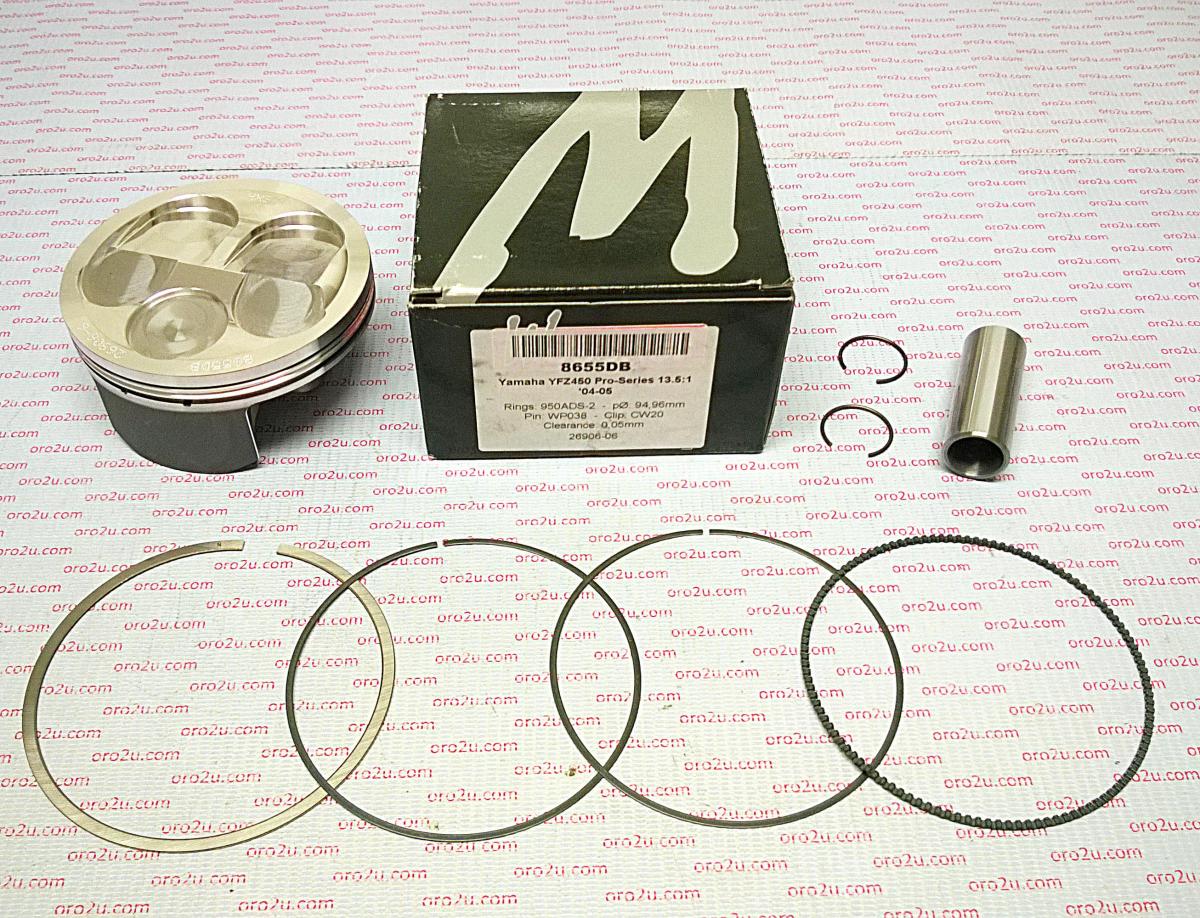

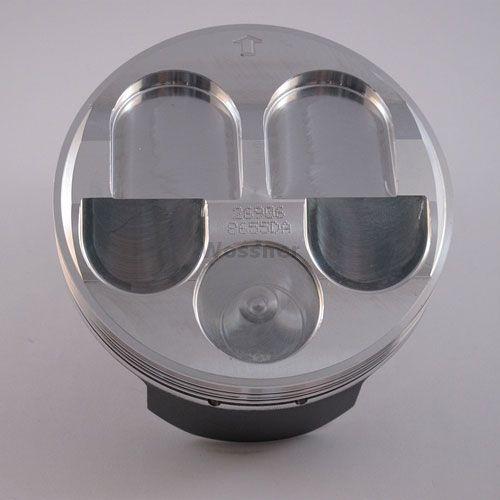

PISTON KIT 04-05 YFZ450 95.00, FORGED WOSSNER 8655DB
Wossner 95.01mm high-compression forged piston kit. Engineered for optimal heat transfer, it ensures efficient cooling of the combustion chamber. The elliptical design provides a uniform bearing surface, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany. High-compression design for increased engine performance. Forged construction for enhanced strength and longevity. Optimized heat transfer for efficient cooling. Elliptical design prevents piston collapse and ensures even load distribution. Manufactured in Germany for high-quality standards. Bore Size: 95.01mm. Actual Bore Diameter: 94.96mm. Displacement: 449 cm³. Stroke: 62.00mm. Clearance: 0.05mm. Wossner Compression Ratio: 12.60:1. OEM Compression Ratio: 11.90:1. Dome Volume: -2.80 cm³. Compression Height: 25.00mm. Gasket Part Number: D4032. Lock Part Number: CW20. Pin Part Number: WP038. Ring Set Part Number: 950ADS-2. Rod Part Number: P4029. Part No: 56-W4835+00B.WO. Wossner Part No: 8655DB.
- SKU
- 56-W4835+00B.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner 95.01mm High-Compression Forged Piston Kit
Elevate your engine's performance with this Wossner high-compression forged piston kit. Engineered in Germany for precision and reliability, this piston features an optimized design for enhanced heat transfer, ensuring efficient cooling of the combustion chamber. Its unique elliptical shape creates a uniform bearing surface, which reduces localized pressure and evenly distributes thrust loads. This design prevents piston collapse and contributes to overall engine longevity.
Key Features:
- High-compression design for increased engine power output.
- Forged construction provides superior strength and durability.
- Optimized heat transfer for effective combustion chamber cooling.
- Elliptical piston design ensures uniform bearing surface and even load distribution, preventing collapse.
- Manufactured to high-quality German engineering standards.
Specifications:
- Bore Size: 95.01mm
- Actual Bore Diameter: 94.96mm
- Displacement: 449 cm³
- Stroke: 62.00mm
- Clearance: 0.05mm
- Wossner Compression Ratio: 12.60:1
- OEM Compression Ratio: 11.90:1
- Dome Volume: -2.80 cm³
- Compression Height: 25.00mm
- Gasket Part Number: D4032
- Lock Part Number: CW20
- Pin Part Number: WP038
- Ring Set Part Number: 950ADS-2
- Rod Part Number: P4029
