PISTON KIT 06-13 YFZ450 94 A, FORGED WOSSNERS 8784DA
Wossner forged piston kit with a 95.00mm bore and 94.95mm diameter. Manufactured in Germany, this piston offers superior strength and design, ensuring optimal heat transfer to cylinder walls. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Features forged construction for superior strength, optimized heat transfer for efficient combustion, and an elliptical design for uniform load distribution. Specifications include a 95.00mm bore, 94.95mm diameter, 449 cm³ display, 63.40mm stroke, 0.05mm clearance, 11.60:1 Wossner compression ratio, 11.40:1 OEM compression ratio, -8.50 cm³ dome volume, and 25.10mm compression height. Cross-reference OEM part numbers include Wossner Piston Yamaha YFZ450 (PN# 8784DA), Lock P/N: CW20, Pin P/N: WP029, and Ring Set P/N: 950XDS.
- SKU
- 56-W250.A.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner Forged Piston Kit - 95.00mm Bore
Upgrade your vehicle's performance with this high-quality forged piston kit from Wossner. Engineered for superior strength and durability, this piston kit is designed to optimize heat transfer to cylinder walls, ensuring efficient combustion and reliable power output.
The innovative elliptical design of this piston provides a uniform bearing surface even under extreme heat expansion. This reduces localized pressure and evenly distributes thrust loads, effectively preventing piston collapse and extending the lifespan of your engine components.
Key Features:
- Forged Construction: Offers exceptional strength and resistance to wear, ideal for high-performance applications.
- Optimized Heat Transfer: Promotes efficient thermal management within the combustion chamber.
- Elliptical Design: Ensures uniform load distribution and reduces stress for enhanced durability.
- German Engineering: Manufactured in Germany, guaranteeing precision and quality craftsmanship.
Specifications:
- Bore Size: 95.00mm
- Piston Diameter: 94.95mm
- Display Volume: 449 cm³
- Stroke: 63.40mm
- Clearance: 0.05mm
- Wossner Compression Ratio: 11.60:1
- OEM Compression Ratio: 11.40:1
- Dome Volume: -8.50 cm³
- Compression Height: 25.10mm

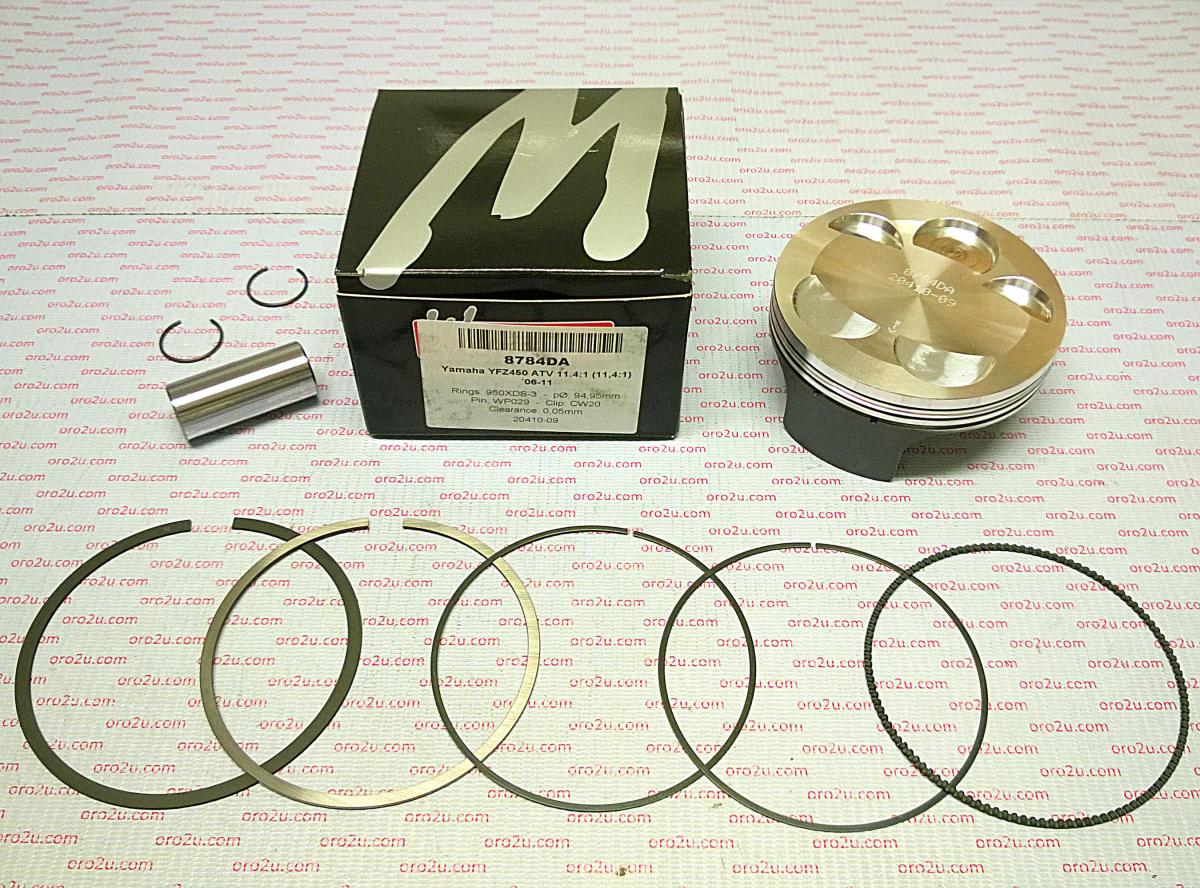

Included Components:
- Piston Kit (Part #: 8784DA)
- Lock Ring Part Number: CW20
- Pin Part Number: WP029
- Ring Set Part Number: 950XDS
