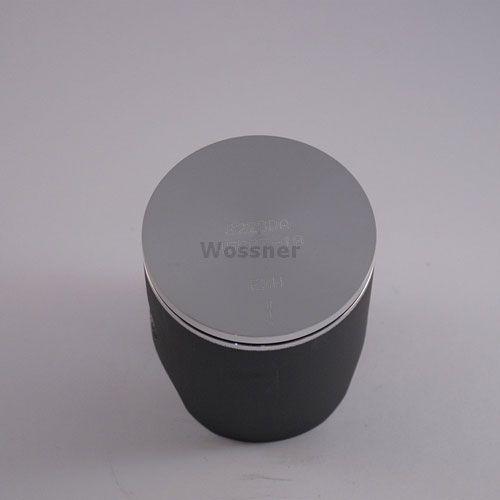

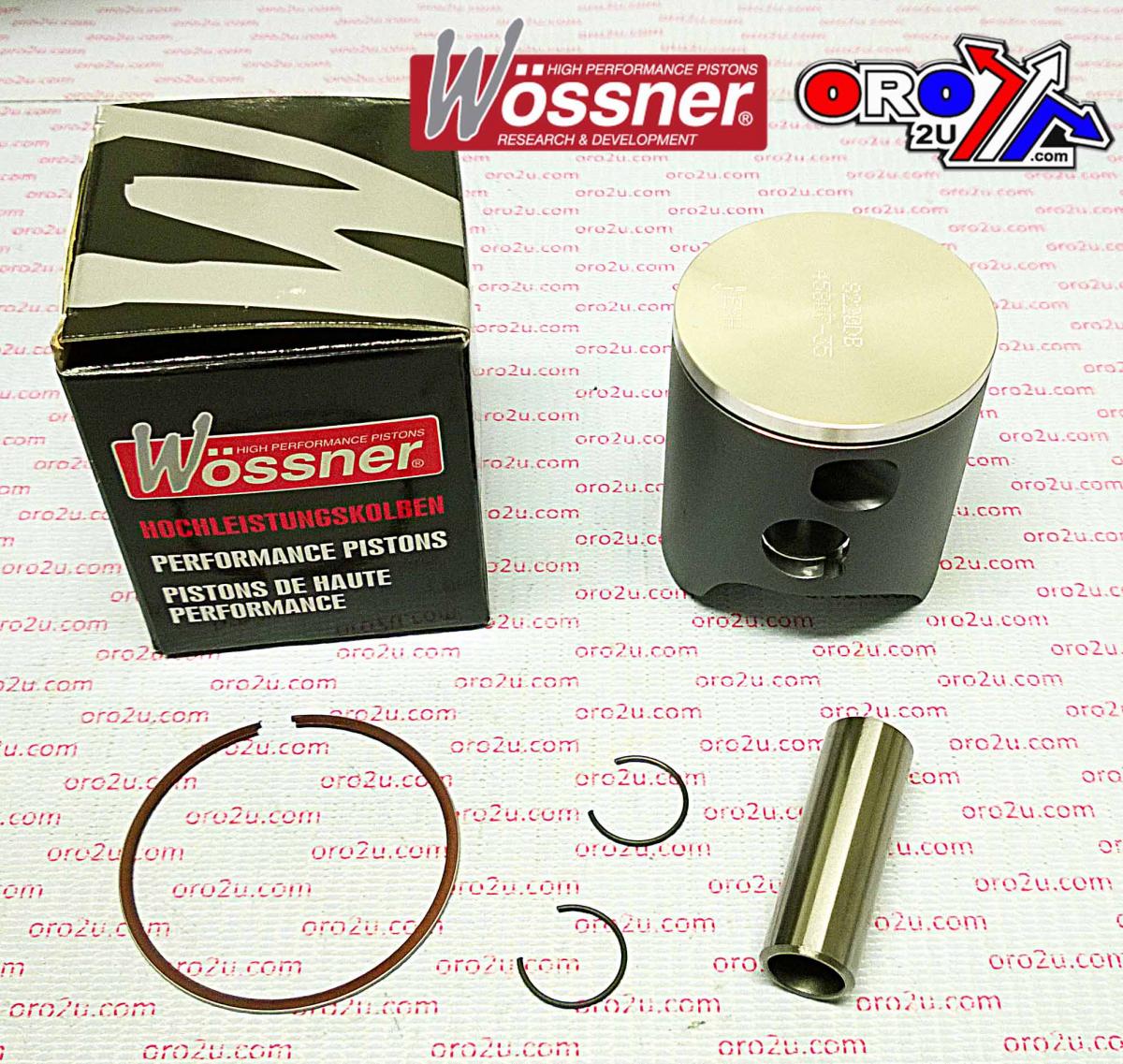

PISTON KIT 07-18 KTM SX125 54, FORGEDWOSSNER 8220DB
Wossner forged piston kit designed for superior strength and performance in 2-stroke engines. Engineered for optimal heat transfer from the combustion chamber to cylinder walls. The elliptical design ensures uniform bearing surface under heat expansion, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany. Features forged construction for enhanced durability, optimized heat transfer for improved performance, elliptical design prevents localized pressure and piston collapse, and single-ring configuration for reduced friction and improved performance. Specifications include a bore of 53.96 mm, piston size of 54.01 mm, displacement of 125 cm³, stroke of 54.50 mm, clearance of 0.05 mm, 2-stroke Wossner compression ratio, 2-stroke OEM compression ratio, and compression height of 29.50 mm.
- SKU
- 56-W035.B.WO
- Brand
- Wossner
- Availability
- In Stock (3)
FULL DESCRIPTION
Wossner Forged Piston Kit for 2-Stroke Engines
Enhance the strength and performance of your 2-stroke engine with this Wossner forged piston kit. Expertly engineered in Germany, this piston is designed for superior heat transfer from the combustion chamber directly to the cylinder walls. Its unique elliptical design ensures a consistent bearing surface even under extreme heat expansion, effectively reducing localized pressure and distributing thrust loads evenly to prevent piston collapse.
Key Features:
- Forged construction for exceptional durability and longevity.
- Optimized for efficient heat transfer, leading to improved engine performance.
- Innovative elliptical design minimizes localized pressure and guards against piston collapse.
- Single-ring configuration is incorporated to reduce friction and boost overall performance.
Specifications:
- Bore: 53.96 mm
- Piston Size: 54.01 mm
- Displacement: 125 cm³
- Stroke: 54.50 mm
- Clearance: 0.05 mm
- Compression Height: 29.50 mm
