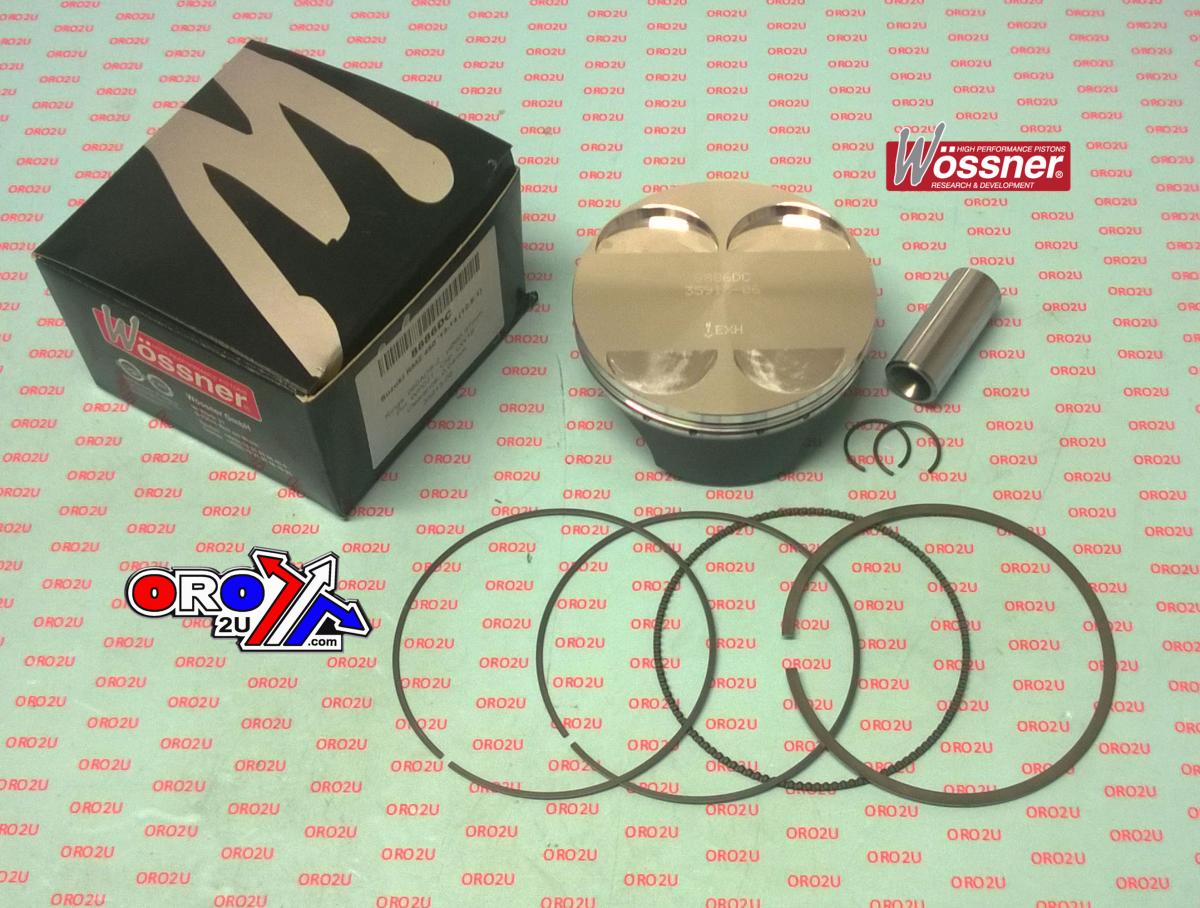

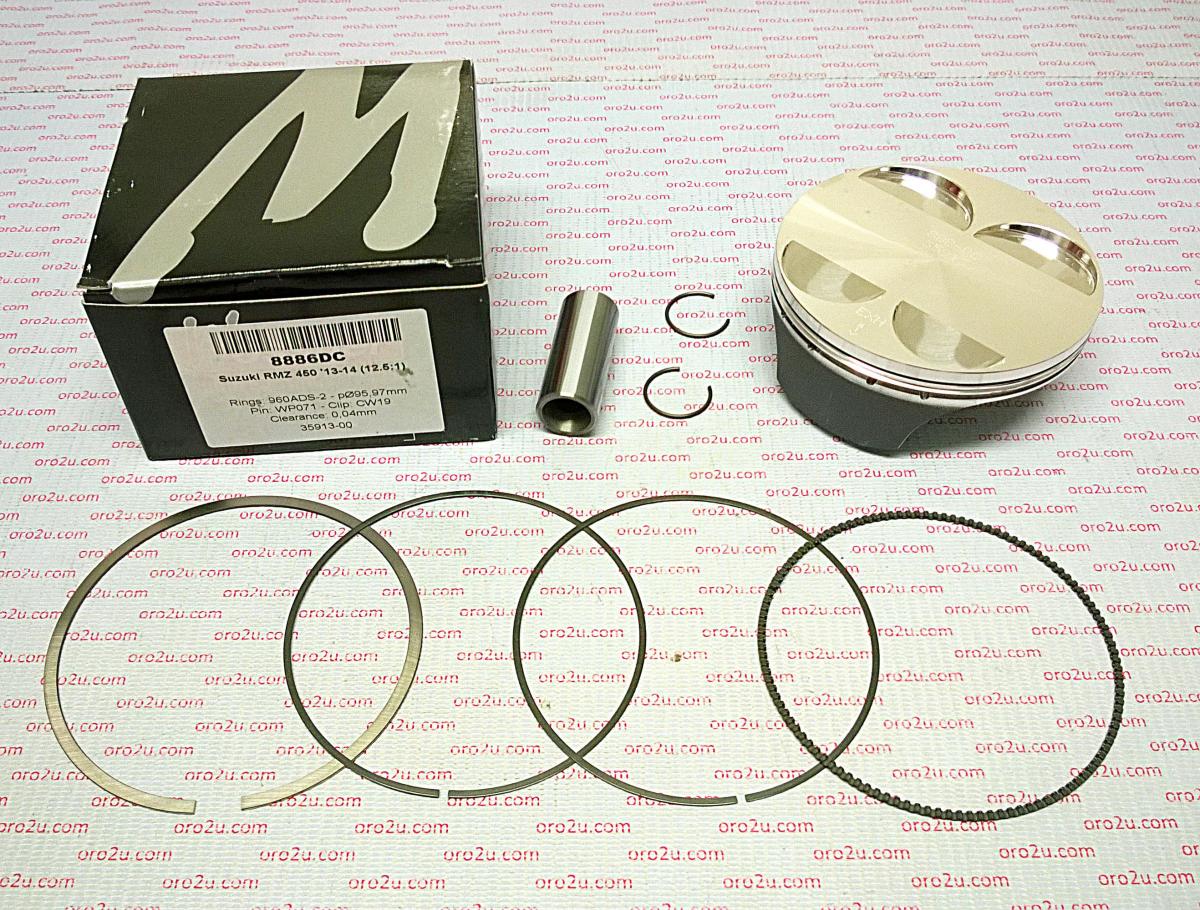

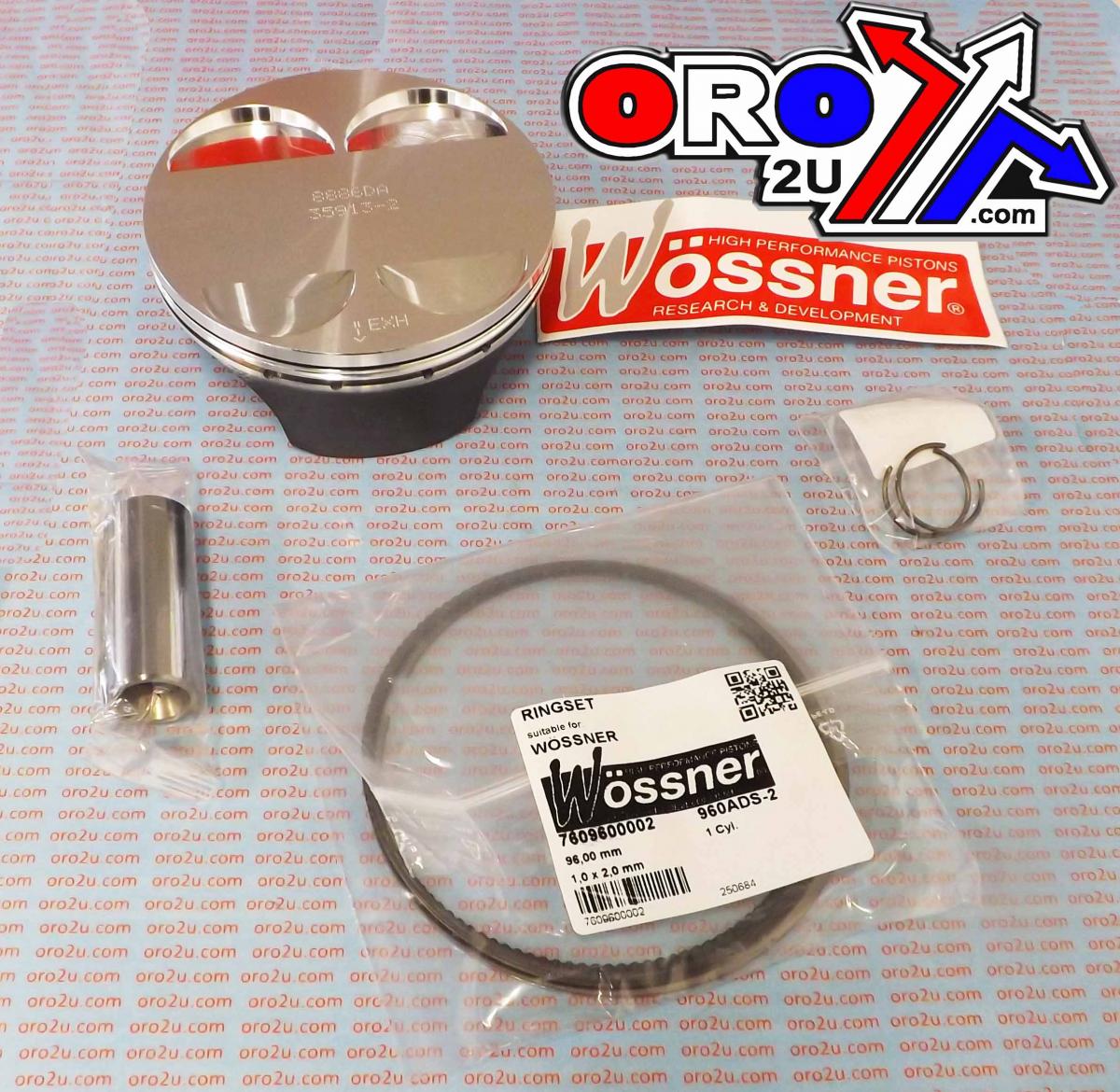

PISTON KIT 13-17 RMZ450 96.00, WOSSNER 8886DC SUZUKI
Wossner forged piston kit with a 96.02mm bore and 95.98mm actual bore size, offering a +0.02mm oversize. Engineered for optimal strength, heat transfer efficiency, and uniform load distribution with an elliptical profile to prevent stress and piston failure under thermal expansion. Features forged piston construction, elliptical design for uniform expansion and thrust load distribution, and engineered for optimal combustion heat transfer. Made in Germany, this piston is a direct OEM replacement and is easy to install. Specifications include a 449cm³ displacement, 62.10mm stroke, 0.04mm clearance, -1.00cm³ dome volume, 12.50:1 compression ratio (OEM), and 22.90mm compression height. Cross-reference OEM part numbers include CW19 (Lock), WP071 (Pin), 960ADS-2 (Ring Set), P4013 (Rod), MB83C072C (Main Bearing Right), and MB830053-4 (Main Bearing Left).
- SKU
- 56-W4955.C.WO
- Brand
- Wossner
- Availability
- In Stock (2)
FULL DESCRIPTION
Wossner Forged Piston Kit for Suzuki RM-Z450 (2013-2017)
This Wossner forged piston kit is engineered for high performance and durability in Suzuki RM-Z450 motorcycles. Designed and manufactured in Germany, this piston features a 96.02mm bore with an actual bore size of 95.98mm, providing a +0.02mm oversize for optimal fitment. Its advanced elliptical profile ensures uniform load distribution and prevents localized stress, contributing to enhanced strength and heat transfer efficiency even under demanding thermal conditions.
Key Features:
- Forged Piston Construction: Offers superior strength and longevity compared to cast pistons.
- Elliptical Design: Promotes uniform expansion and efficient thrust load distribution, reducing the risk of piston failure.
- Optimized Heat Transfer: Engineered for effective combustion heat management.
- German Engineering: Manufactured to high standards in Germany.
- Direct OEM Replacement: Designed for straightforward installation as a replacement for original equipment.
- Professional Installation Recommended: While designed for direct replacement, professional installation is advised if you are unsure.
Specifications:
- Bore Size: 96.02mm
- Actual Bore: 95.98mm
- Displacement: 449cm³
- Stroke: 62.10mm
- Clearance: 0.04mm
- Dome Volume: -1.00cm³
- Compression Ratio: 12.50:1 (OEM)
- Compression Height: 22.90mm
