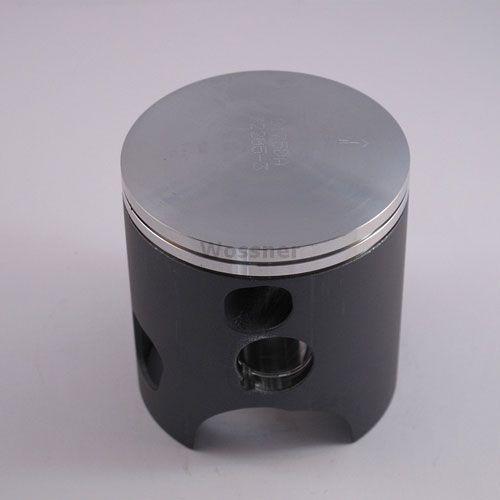

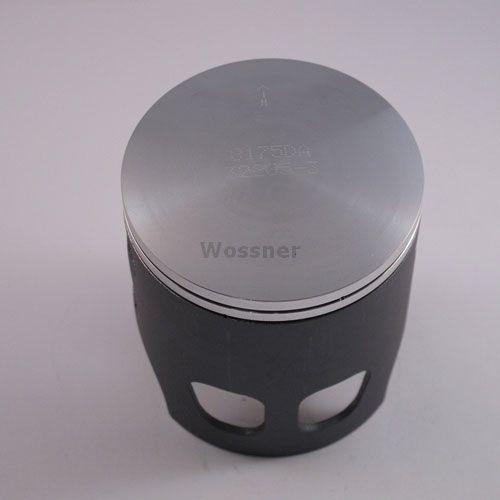

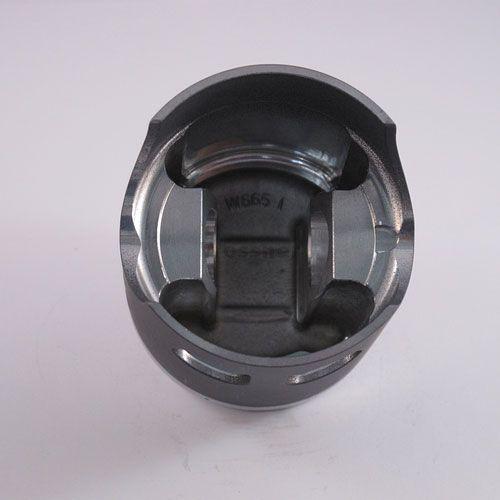

PISTON KIT 1983 IT250 70.00, FORGED WOSSNER 8175D200
Wossner forged piston kit with bore size 70.00mm. This kit is engineered for superior strength and performance with optimal heat transfer to cylinder walls for efficient combustion. The elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured in Germany. Specifications include actual bore diameter of 69.94mm, displacement of 246 cm³, stroke of 68.00mm, clearance of 0.06mm, 2-stroke compression ratios for both Wossner and OEM, and compression height of 35.80mm. Included components are lock part number CW18, pin part number WP033, and two ring sets with part number RSB7000.
- SKU
- 56-W196+200.WO
- Brand
- Wossner
- Availability
- Out of Stock
FULL DESCRIPTION
Wossner Forged Piston Kit for Enhanced Motorcycle Performance
Experience superior strength and durability with this Wossner forged piston kit. Engineered for optimal heat transfer, this piston ensures efficient combustion and consistent performance. Its advanced elliptical design promotes a uniform bearing surface, even under extreme heat expansion. This design effectively reduces localized pressure and evenly distributes thrust loads, preventing potential piston collapse and ensuring a longer lifespan for your engine. Manufactured to exacting standards in Germany, this piston kit represents the pinnacle of quality and engineering.
Key Features:
- Forged Piston Construction: Offers enhanced strength and superior durability for demanding applications.
- Optimized Heat Transfer: Designed for efficient heat management, leading to improved combustion cycles.
- Elliptical Design: Prevents piston collapse by ensuring uniform bearing surfaces under heat expansion and distributing thrust loads evenly.
- German Manufacturing: Built with precision and quality control synonymous with German engineering.
Specifications:
- Bore Size: 70.00mm
- Actual Bore Diameter: 69.94mm
- Displacement: 246 cm³
- Stroke: 68.00mm
- Clearance: 0.06mm
- Compression Height: 35.80mm

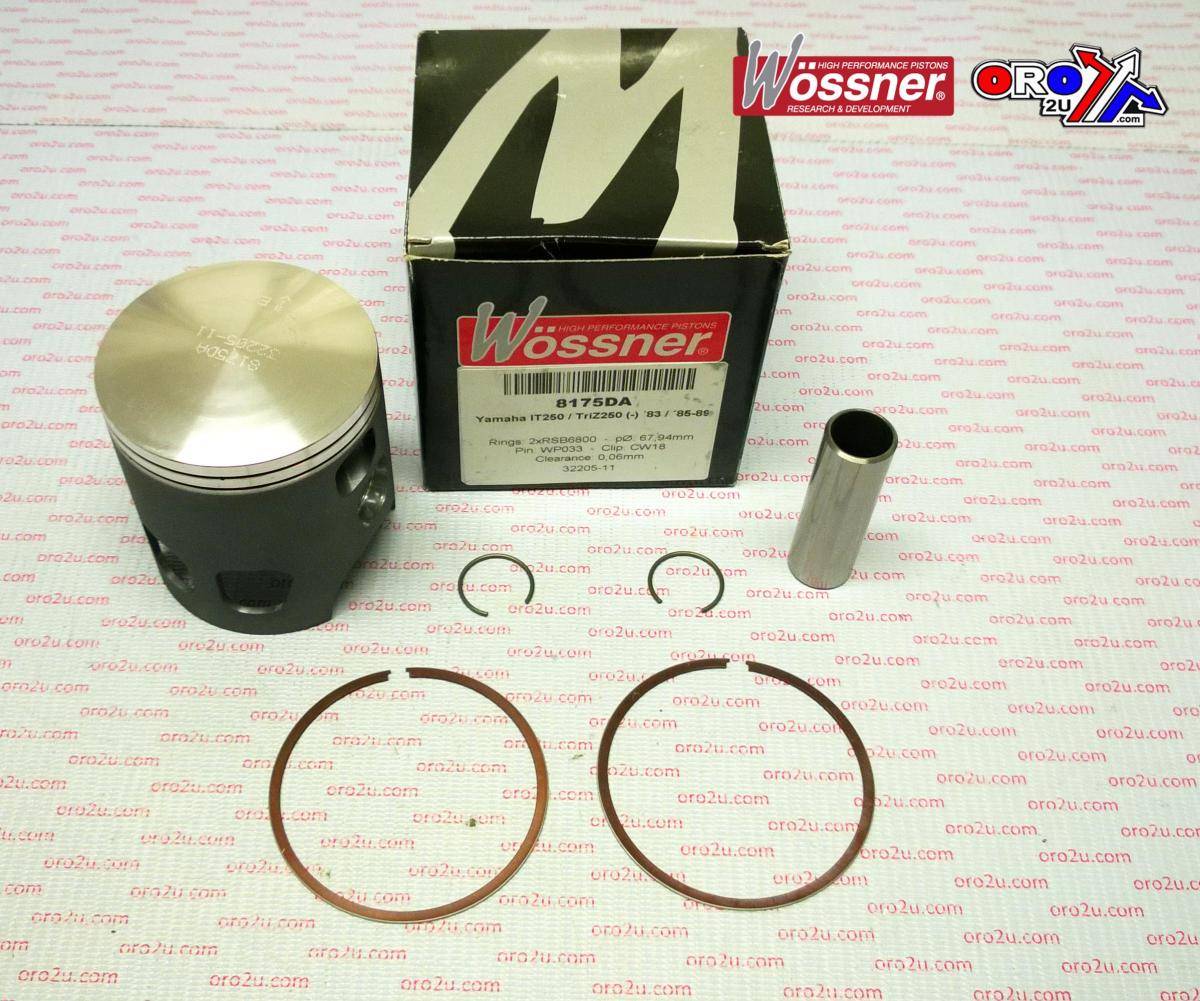

Included Components:
- Lock Part Number: CW18
- Pin Part Number: WP033
- Ring Set Part Number: RSB7000 (Quantity: 2)
