PISTON KIT 1986 KX125 56.00, WOSSNER 8211DA KAWASAKI MX 13001-1231
Wossner forged piston kit with a 56mm bore (55.94mm actual) for 2-stroke engines. Engineered for high performance, this piston features efficient heat transfer and an elliptical design for uniform load distribution, reducing localized pressure. Manufactured in Germany, this kit includes essential components for assembly and is built to precise specifications. Features include a forged piston design, optimized heat transfer, an elliptical shape for even thrust load distribution, and German design and manufacturing. Specifications include a bore size of 56mm (actual 55.94mm), compression height of 29.70mm, clearance of 0.06mm, stroke of 50.60mm, display displacement of 211 cm³, and a 2-stroke compression ratio. Cross-reference OEM part numbers: 13001-1231, 540M05400. Included components: Piston Wossner 8211DA, Lock CW16, Pin WP036, Ring Set RSB5600, Rod P2037. Weight: 202g.
- SKU
- 56-W540.00A.WO
- Brand
- Wossner
- Availability
- Out of Stock
FULL DESCRIPTION
Wossner Forged Piston Kit - High Performance 2-Stroke Power
Elevate your motorcycle's performance with this Wossner forged piston kit. Engineered for demanding 2-stroke applications, this kit is precision-crafted in Germany to deliver superior strength, durability, and efficiency.
The piston features a 56mm bore (actual 55.94mm) and an advanced elliptical design. This shape is crucial for promoting uniform load distribution across the piston surface, which significantly reduces localized pressure points and minimizes the risk of piston collapse under extreme conditions. Its design also optimizes heat transfer, moving heat efficiently from the combustion chamber to the cylinder walls, contributing to better thermal management and performance.
This Wossner piston kit is built to exacting standards, ensuring a reliable and compatible upgrade for your motorcycle's engine. It includes all necessary components for a complete installation, providing a hassle-free way to enhance your machine's power and longevity.
Key Features:
- Forged piston construction for exceptional strength and resilience.
- Elliptical piston design for even thrust load distribution and reduced stress.
- Optimized heat transfer for improved thermal efficiency and performance.
- Designed and manufactured in Germany for premium quality.
- Direct replacement for standard bore size, ensuring compatibility.
Specifications:
- Bore Size: 56mm (actual 55.94mm)
- Compression Height: 29.70mm
- Clearance: 0.06mm
- Stroke: 50.60mm
- Displacement: 211 cm³
- Compression Ratio: 2-stroke (compatible with Wossner and OEM specifications)

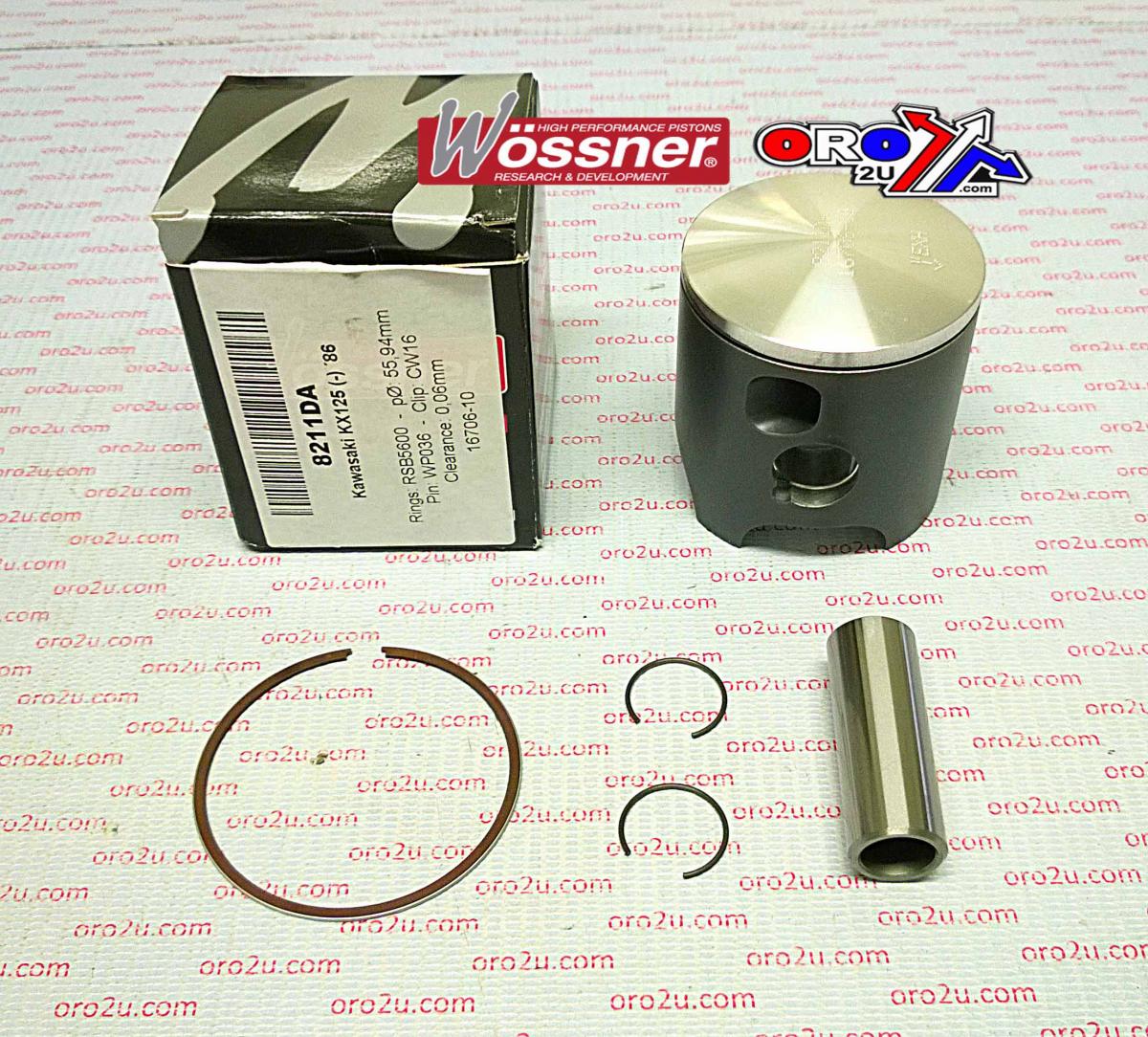

Included Components:
- Piston: Wossner 8211DA
- Lock: CW16
- Pin: WP036
- Ring Set: RSB5600
- Rod: P2037
Cross-Reference OEM Part Numbers:
- 13001-1231
- 540M05400
