PISTON KIT 76-82 YZ125 56.50, FORGED WOSSNER 8115D050
Wossner forged piston kit. Bore Size: 56.50 mm, Actual Bore: 56.44 mm, Stroke: 56.50 mm, Clearance: 0.06 mm, Compression Height: 25.40 mm, Dome Volume: +6.40 cm³, Compression Ratio: 10.50:1 (OEM), Displacement: 123 cm³. Features forged construction for enhanced durability and strength, optimized heat transfer for improved performance, and an elliptical design for uniform bearing surface and reduced wear. Designed for 2-stroke engines. Made in Germany. Wossner Part No.: 8115D050. Lock P/N: CW16. Pin P/N: WP036. Ring Set P/N: RSB5650.
- SKU
- 56-W435+050.WO
- Brand
- Wossner
- Availability
- Out of Stock
FULL DESCRIPTION

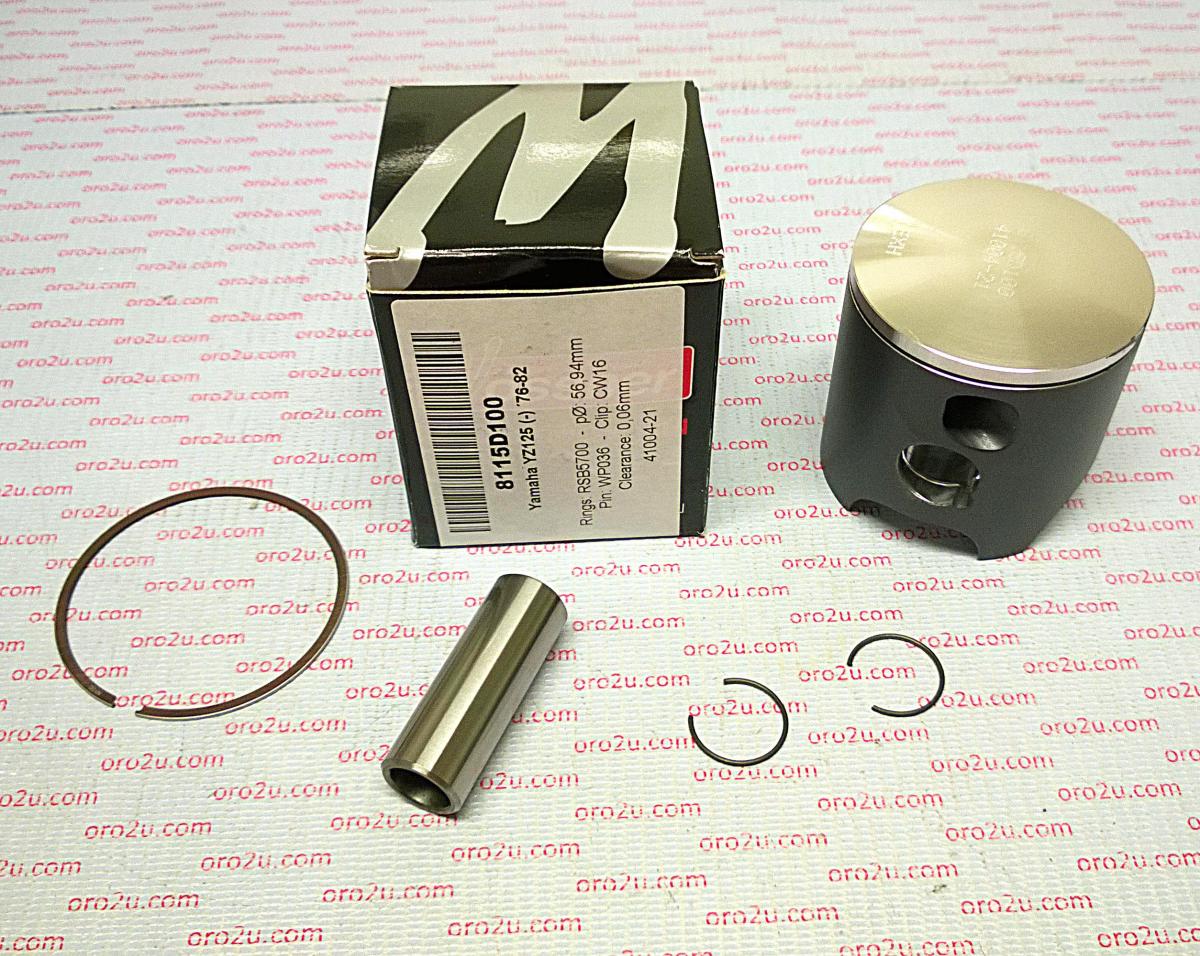

Wossner Forged Piston Kit for Yamaha YZ125 (1976-1982)
Upgrade your Yamaha YZ125's performance and durability with this premium forged piston kit from Wossner. Manufactured in Germany, this high-quality piston is engineered for superior strength and efficient heat transfer, crucial for demanding 2-stroke applications. Its advanced elliptical design ensures even load distribution across the bearing surface, minimizing localized pressure points and preventing premature wear or piston collapse.
Key Features:
- Forged Construction: Provides exceptional strength and resistance to extreme operating conditions.
- Optimized Heat Transfer: Enhances engine cooling for sustained performance.
- Elliptical Design: Promotes a uniform bearing surface, reducing wear and extending piston life.
- 2-Stroke Engine Specific: Designed to meet the unique demands of 2-stroke powerplants.
- Made in Germany: Guarantees precision engineering and high manufacturing standards.
Specifications:
- Bore Size: 56.50 mm
- Actual Bore: 56.44 mm
- Stroke: 56.50 mm
- Clearance: 0.06 mm
- Compression Height: 25.40 mm
- Dome Volume: +6.40 cm³
- Compression Ratio: 10.50:1 (OEM)
- Displacement: 123 cm³
Cross-Reference Part Numbers:
- Wossner Part No.: 8115D050
- Lock P/N: CW16
- Pin P/N: WP036
- Ring Set P/N: RSB5650
