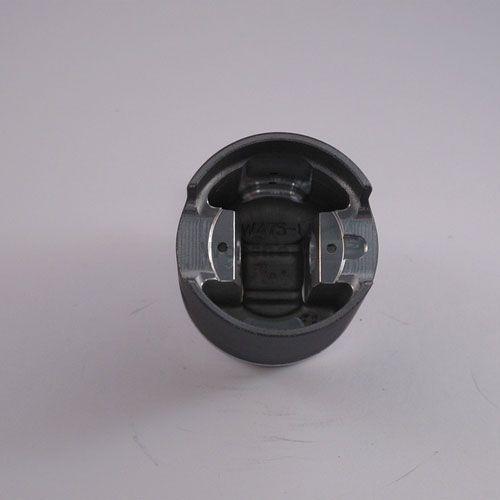

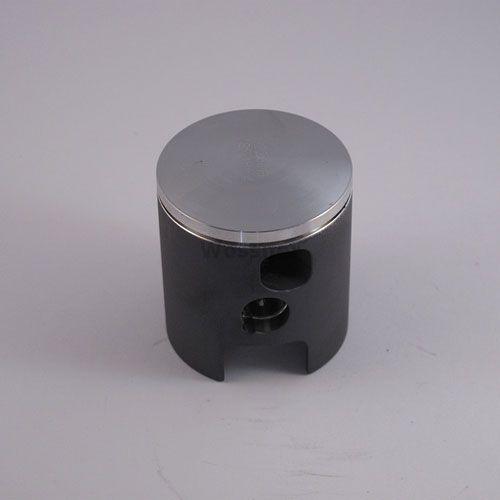

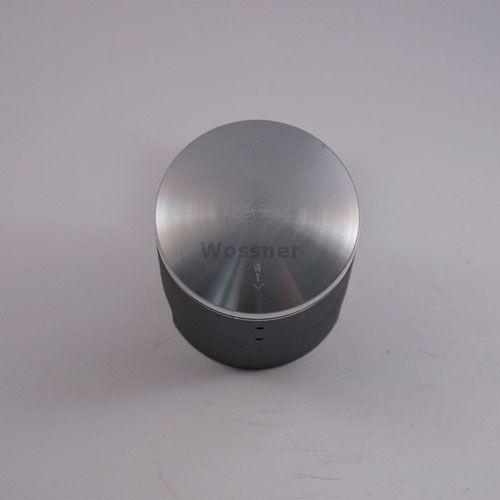

PISTON KIT 77-81 RM80 50.50, FORGED WOSSNER 8226D150
Wossner forged piston kit 8226D150. Bore size 50.50 mm (+1.50 mm oversize), actual bore 50.45 mm. Stroke 42.00 mm. Clearance 0.05 mm. Compression height 27.50 mm. Compression ratio 2-stroke. Displacement 80 cm³. Forged construction for enhanced durability and strength. Optimized heat transfer for improved performance. Elliptical design for uniform bearing surface and reduced wear. Designed for 2-stroke engines. Made in Germany. Wossner part number 8226D150. Lock P/N CW12. Pin P/N WP091. Ring set P/N RSB4950.
- SKU
- 56-W456+150.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner Forged Piston Kit 77-81 RM80 50.50
Experience enhanced durability and performance with this Wossner forged piston kit, engineered for 2-stroke engines. Manufactured in Germany, this high-quality piston is designed to offer superior strength and efficient heat transfer. Its innovative elliptical design ensures even load distribution across the bearing surface, significantly reducing localized pressure and preventing premature wear or piston collapse.
Key Features:
- Forged Construction: Provides exceptional durability and strength for demanding applications.
- Optimized Heat Transfer: Promotes efficient cooling, leading to improved engine performance and reliability.
- Elliptical Design: Ensures uniform load distribution and a consistent bearing surface, minimizing wear.
- 2-Stroke Specific: Precisely engineered for 2-stroke engine requirements.
Specifications:
- Bore Size: 50.50 mm (+1.50 mm oversize)
- Actual Bore: 50.45 mm
- Stroke: 42.00 mm
- Clearance: 0.05 mm
- Compression Height: 27.50 mm
- Displacement: 80 cm³
- Origin: Made in Germany

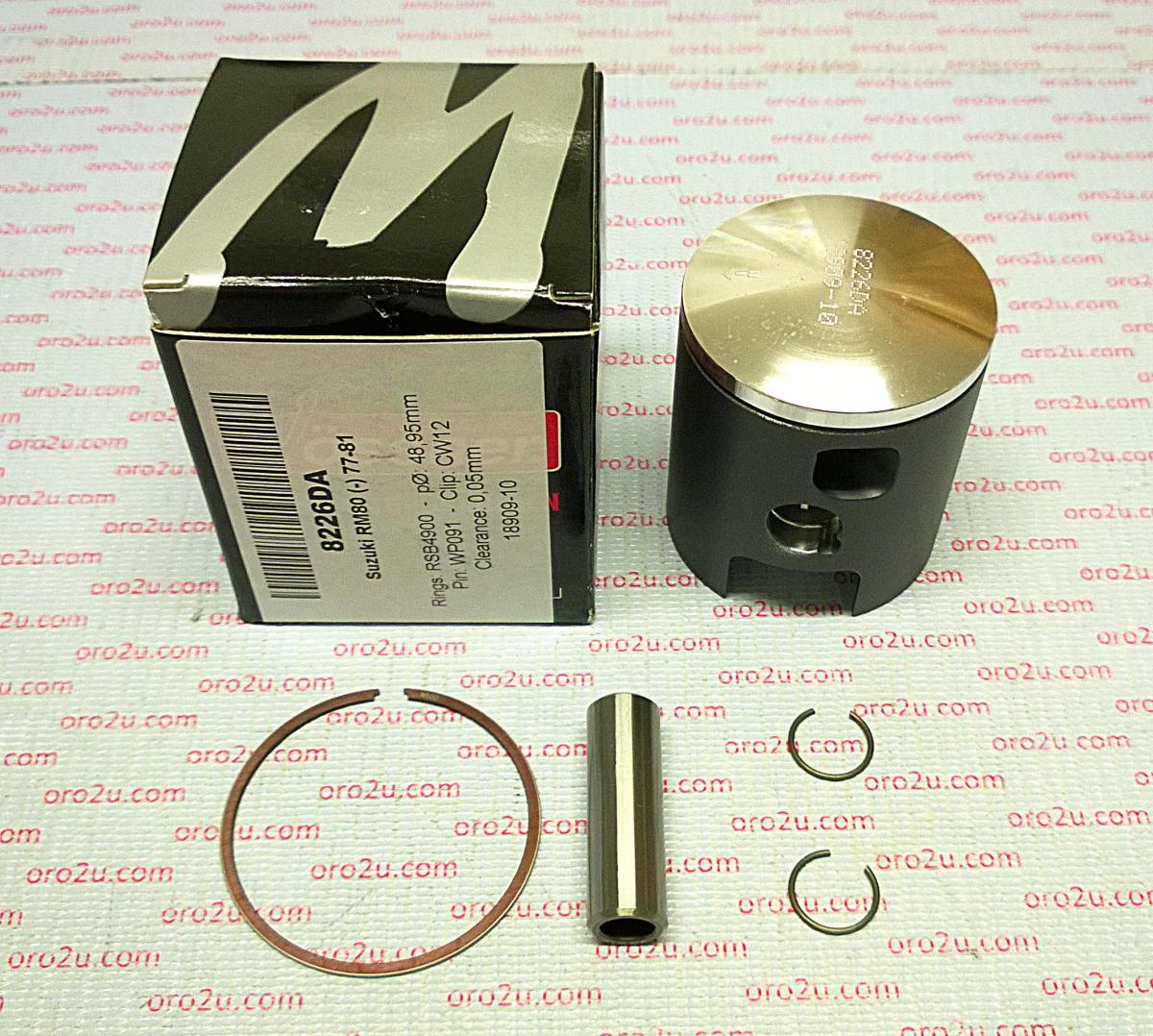

Included Components:
- Wossner Piston Kit (Part No.: 8226D150)
- Lock Ring (Lock P/N: CW12)
- Piston Pin (Pin P/N: WP091)
- Ring Set (Ring Set P/N: RSB4950)
