PISTON KIT 85-00 XR600R 98.00, FORGED WOSSNER 8574D100
Wossner 98mm forged piston kit designed for optimal combustion chamber heat transfer and uniform load distribution, reducing localized pressure and preventing piston collapse. Made in Germany for durability and performance. Features forged construction for superior strength and durability, optimized heat transfer to cylinder walls, elliptical design for uniform bearing surface under heat expansion, reduced localized pressure, and even distribution of thrust loads preventing piston collapse under high-stress conditions. Specifications include a bore size of 98.00mm (Actual Size: 97.94mm), Wossner Part Number: 8574D100, Lock Part Number: CW23, Pin Part Number: WP057, Ring Set Part Number: 980XSY, Rod Part Number: P4028, Displacement: 654 cm³, Stroke: 80.00mm, Clearance: 0.06mm, Compression Ratio: 9.30:1, OEM Compression Ratio: 9.00:1, Dome Volume: -4.80 cm³, Compression Height: 29.70mm, and Theoretical Weight: 348.00g.
- SKU
- 56-W4577.P4.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION

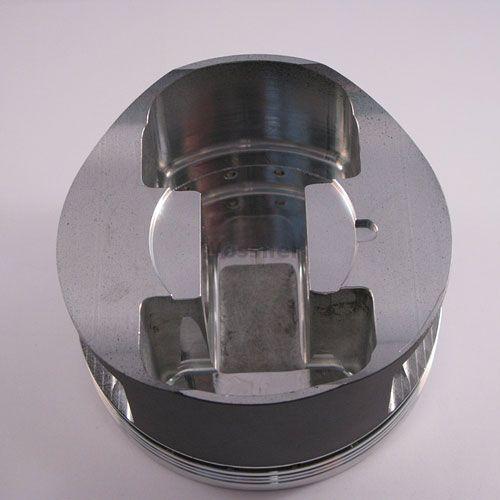

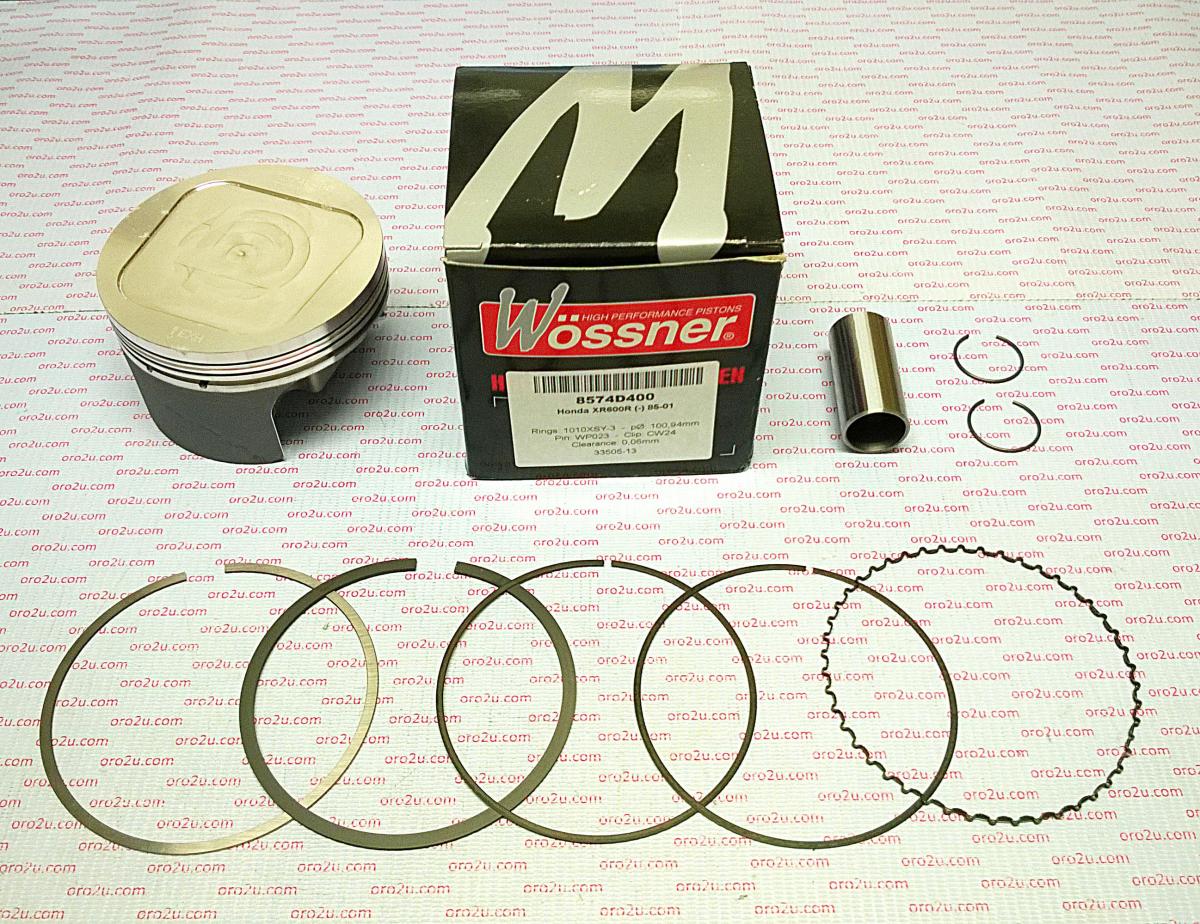

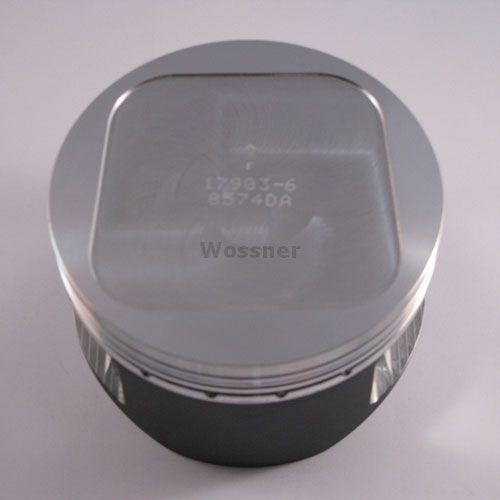

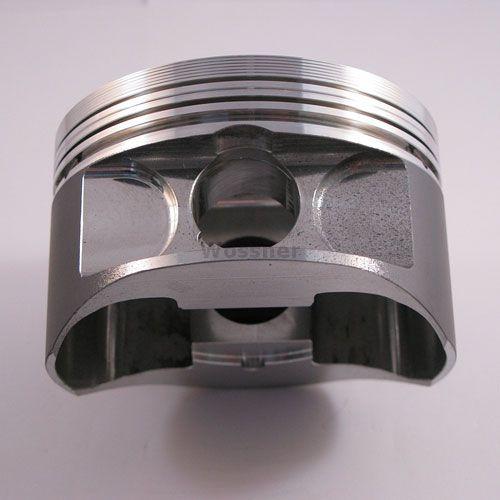

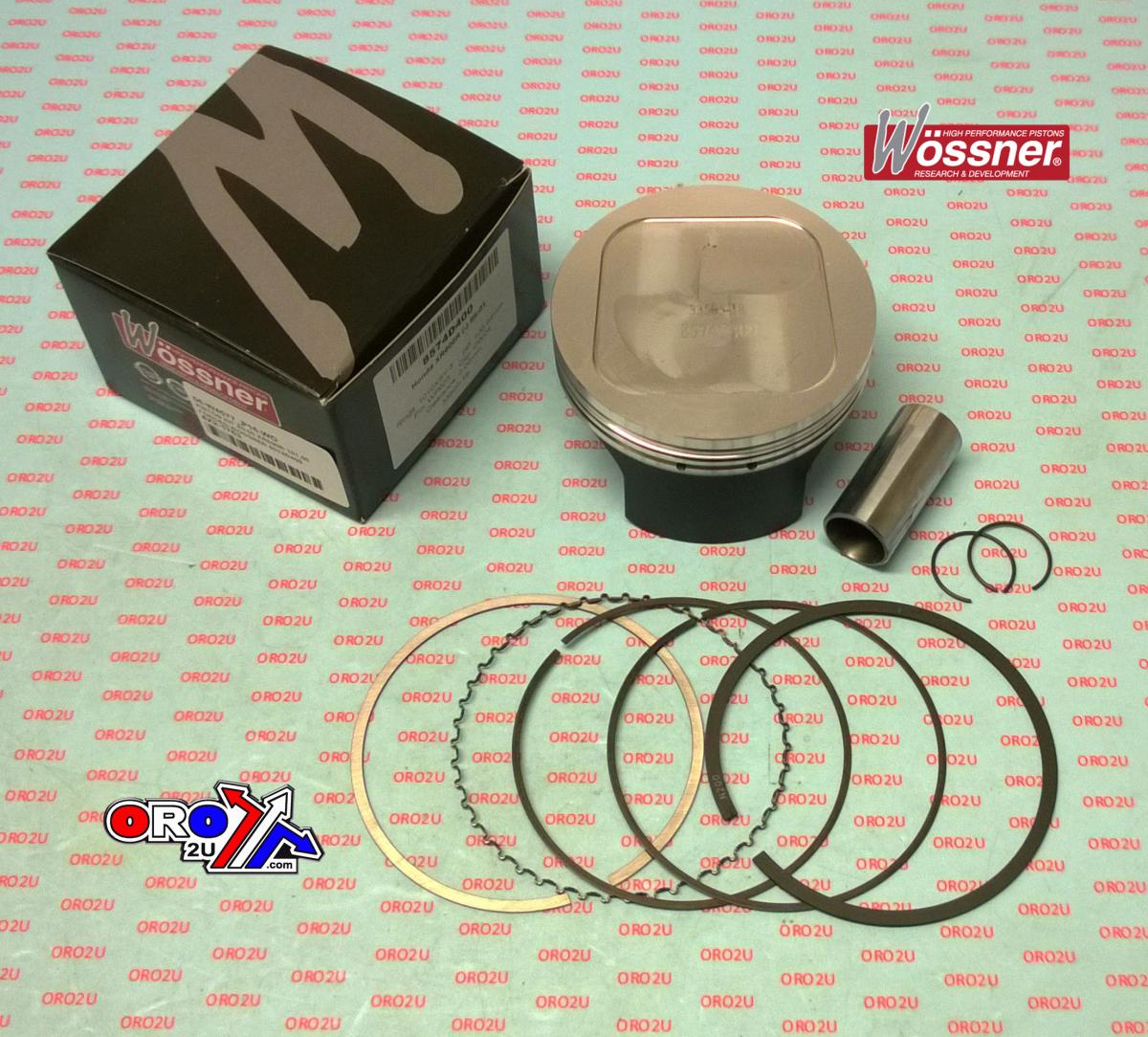

Wossner 98mm Forged Piston Kit for Honda XR600R
Upgrade your Honda XR600R's performance and durability with this high-quality forged piston kit from Wossner. Engineered in Germany, this kit is designed for optimal combustion chamber heat transfer and uniform load distribution, effectively reducing localized pressure and preventing piston collapse under demanding conditions. Experience enhanced reliability and power with precision-crafted components.
Key Features:
- Forged Construction: Provides superior strength and exceptional durability for extended engine life.
- Optimized Heat Transfer: Efficiently transfers heat to cylinder walls, promoting consistent operating temperatures.
- Elliptical Design: Ensures a uniform bearing surface even under extreme heat expansion, maintaining optimal piston-to-cylinder wall contact.
- Even Load Distribution: Reduces localized pressure points and evenly distributes thrust loads for smoother operation and reduced wear.
- Prevents Piston Collapse: Engineered to withstand high-stress conditions, preventing catastrophic engine failure.
Specifications:
- Bore Size: 98.00mm (Actual Size: 97.94mm)
- Wossner Part Number: 8574D100
- Lock Part Number: CW23
- Pin Part Number: WP057
- Ring Set Part Number: 980XSY
- Rod Part Number: P4028
- Displacement: 654 cm³
- Stroke: 80.00mm
- Clearance: 0.06mm
- Compression Ratio: 9.30:1
- OEM Compression Ratio: 9.00:1
- Dome Volume: -4.80 cm³
- Compression Height: 29.70mm
- Theoretical Weight: 348.00g
