PISTON KIT 85-86 LT250 71.50, WOSSNER 8257D150 SUZUKI ATV, MUST USE STOCK THRUST WASHERS
Wossner forged piston kit 71.50mm bore. Features forged piston construction for enhanced strength and durability, engineered for optimal combustion chamber heat transfer, and an elliptical design that improves load distribution and reduces pressure points. Designed for 2-stroke engines and made in Germany. Specifications: Bore Size 71.50mm (+1.50 oversize), Actual Bore 71.44mm, Compression Height 33.00mm, Clearance 0.06mm, Stroke 64.80mm, Displacement 249 cm³. Includes Wossner Piston 8257D150, Ring Set RSB7150 (x2), Lock CW18, Pin WP033, Rod P2045.
- SKU
- 56-W576+1.50.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION

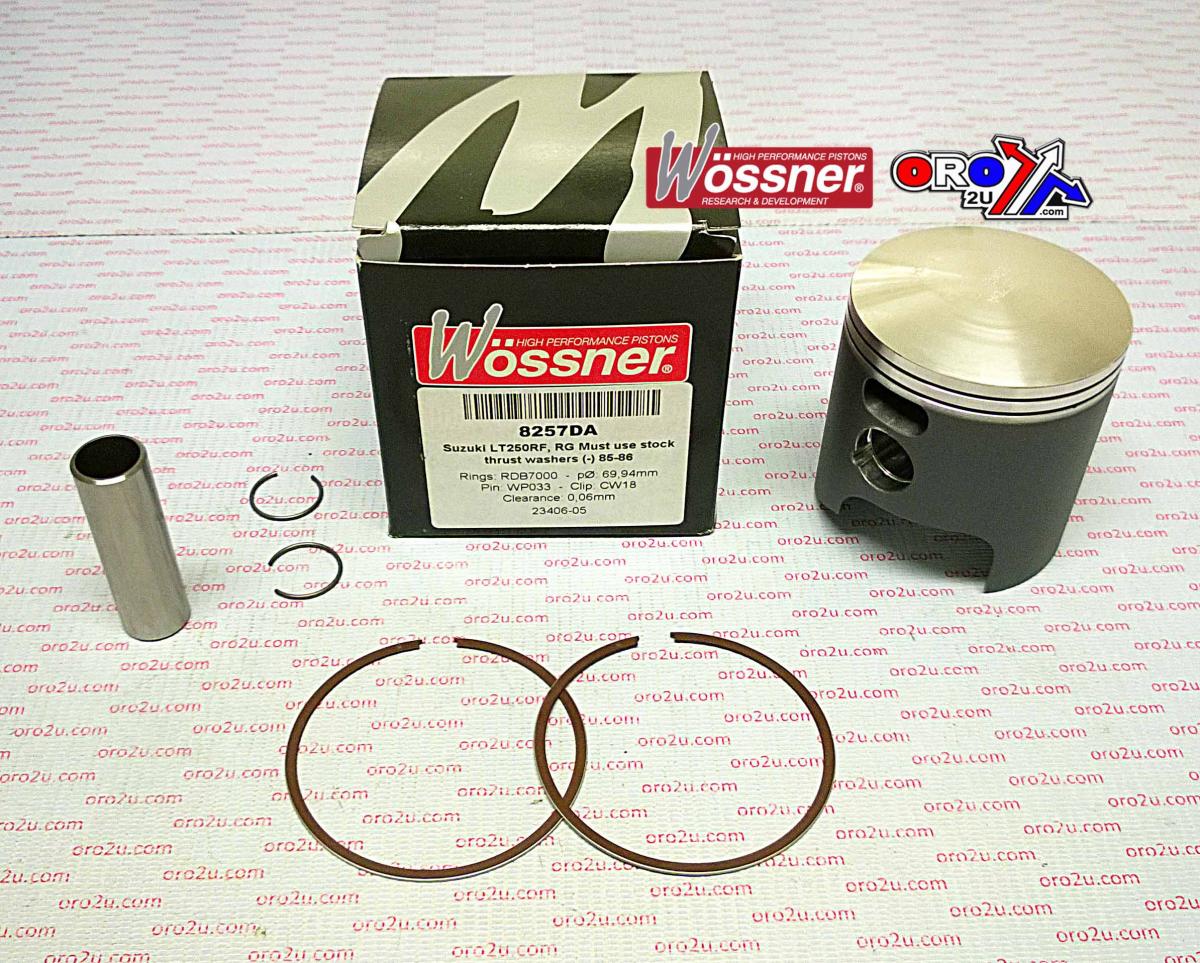

Wossner Forged Piston Kit 71.50mm Bore
This Wossner forged piston kit is engineered for specific Suzuki ATV models. With a bore size of 71.50mm (+1.50 oversize), this high-performance component offers superior durability and efficient heat transfer. Designed with an elliptical profile, the piston ensures even distribution of thrust loads and minimizes the risk of piston collapse under high thermal stress. Manufactured in Germany to high precision standards. Must use stock thrust washers.
Key Features
- Forged piston construction for enhanced strength and durability
- Engineered for optimal combustion chamber heat transfer
- Elliptical design improves load distribution and reduces pressure points
- Designed for 2-stroke engines
- Made in Germany
Specifications
- Bore Size: 71.50mm (+1.50 oversize)
- Actual Bore: 71.44mm
- Compression Height: 33.00mm
- Clearance: 0.06mm
- Stroke: 64.80mm
- Displacement: 249 cm³
- Wossner Compression Ratio: 2-stroke
- OEM Compression Ratio: 2-stroke
Component Details
- Wossner Piston: 8257D150
- Ring Set: RSB7150 (x2)
- Lock: CW18
- Pin: WP033
- Rod: P2045
