PISTON KIT 86-05 KMX125 55.00, FORGED WOSSNER 8007D100
Wossner piston kit 8007D100 features a 55.00mm bore size (+1.00mm oversize) for the Kawasaki KMX 125 (1986-2005). This forged piston is built for strength, reliability, and efficient thermal performance, manufactured in Germany. The piston has an elliptical profile for a consistent bearing surface under heat expansion, minimizing collapse risk. Specifications include a 125 cm³ displacement, 54.40mm stroke, 0.06mm clearance, and 32.80mm compression height. The kit includes piston 8007D100, two rings (RSB5500), wrist pin (WP036), and locks (CW16). Weight is 210 grams.
- SKU
- 56-W150_1.00
- Brand
- Wossner
- Availability
- Out of Stock
FULL DESCRIPTION
Wossner Forged Piston Kit - 55.00mm Oversize
This Wossner piston kit, part number 8007D100, is a high-performance component designed to enhance the engine of your motorcycle. Crafted with precision in Germany, this kit features a forged piston known for its superior strength, reliability, and efficient thermal management.

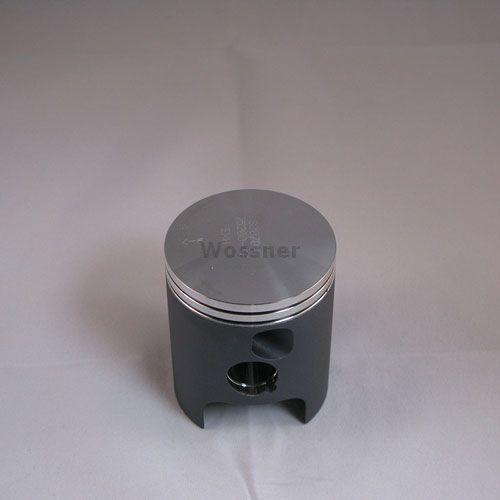

The piston boasts an elliptical profile, engineered to maintain a consistent bearing surface even under the stresses of thermal expansion. This design minimizes the risk of component failure during operation, providing peace of mind and optimal performance.
Key Features:
- Wossner forged piston for exceptional strength and durability.
- Designed for effective heat transfer from the combustion chamber to cylinder walls.
- Elliptical piston profile ensures a uniform bearing surface during thermal expansion.
- Precision engineered for high-performance two-stroke applications.
- Manufactured in Germany to exacting standards.
Specifications:
- Bore Size: 55.00mm (+1.00mm oversize)
- Displacement: 125 cm³
- Stroke: 54.40mm
- Clearance: 0.06mm
- Compression Height: 32.80mm

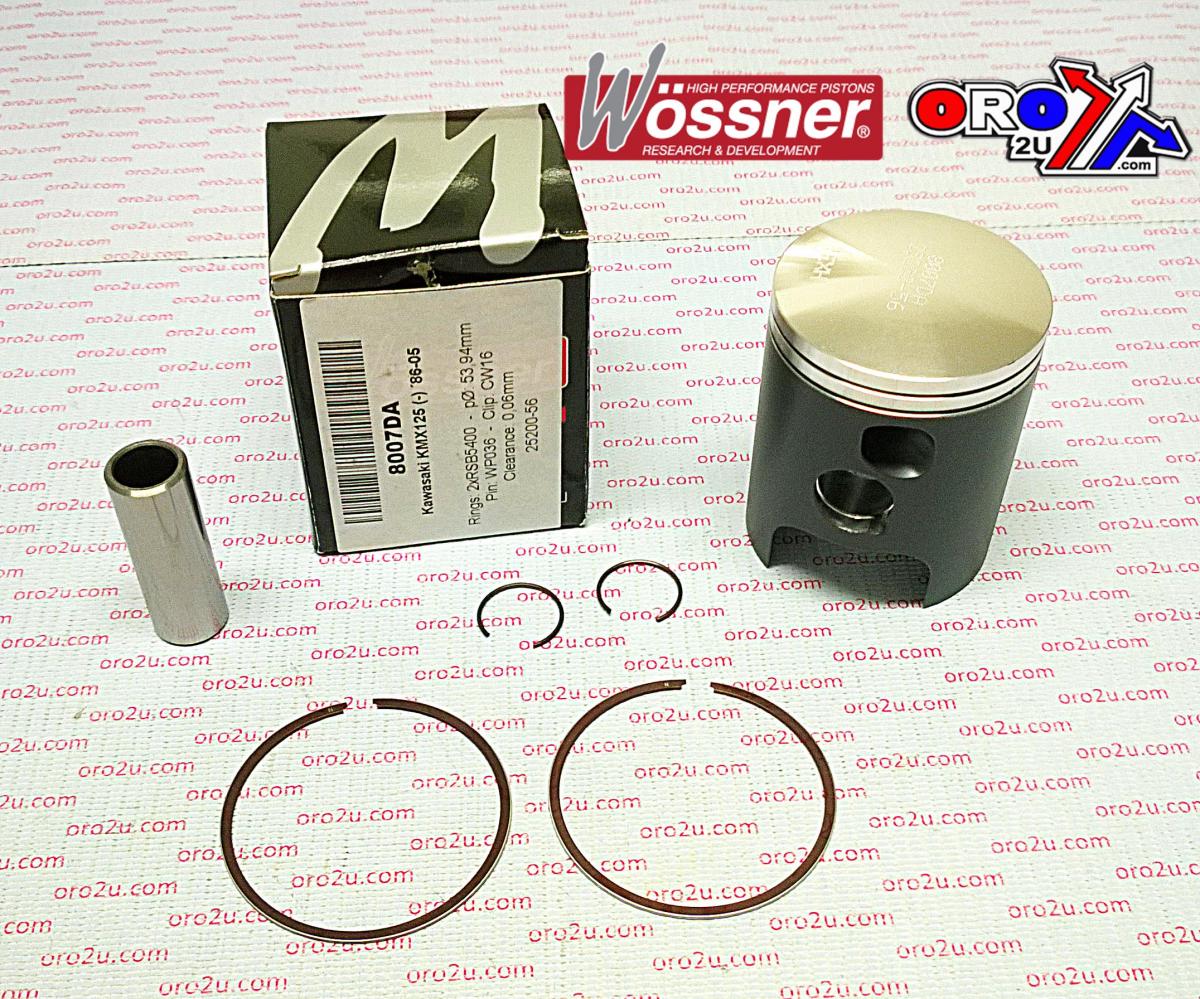

Included Parts:
- Piston: 8007D100
- Rings: RSB5500 (Quantity: 2)
- Wrist Pin: WP036
- Locks: CW16
