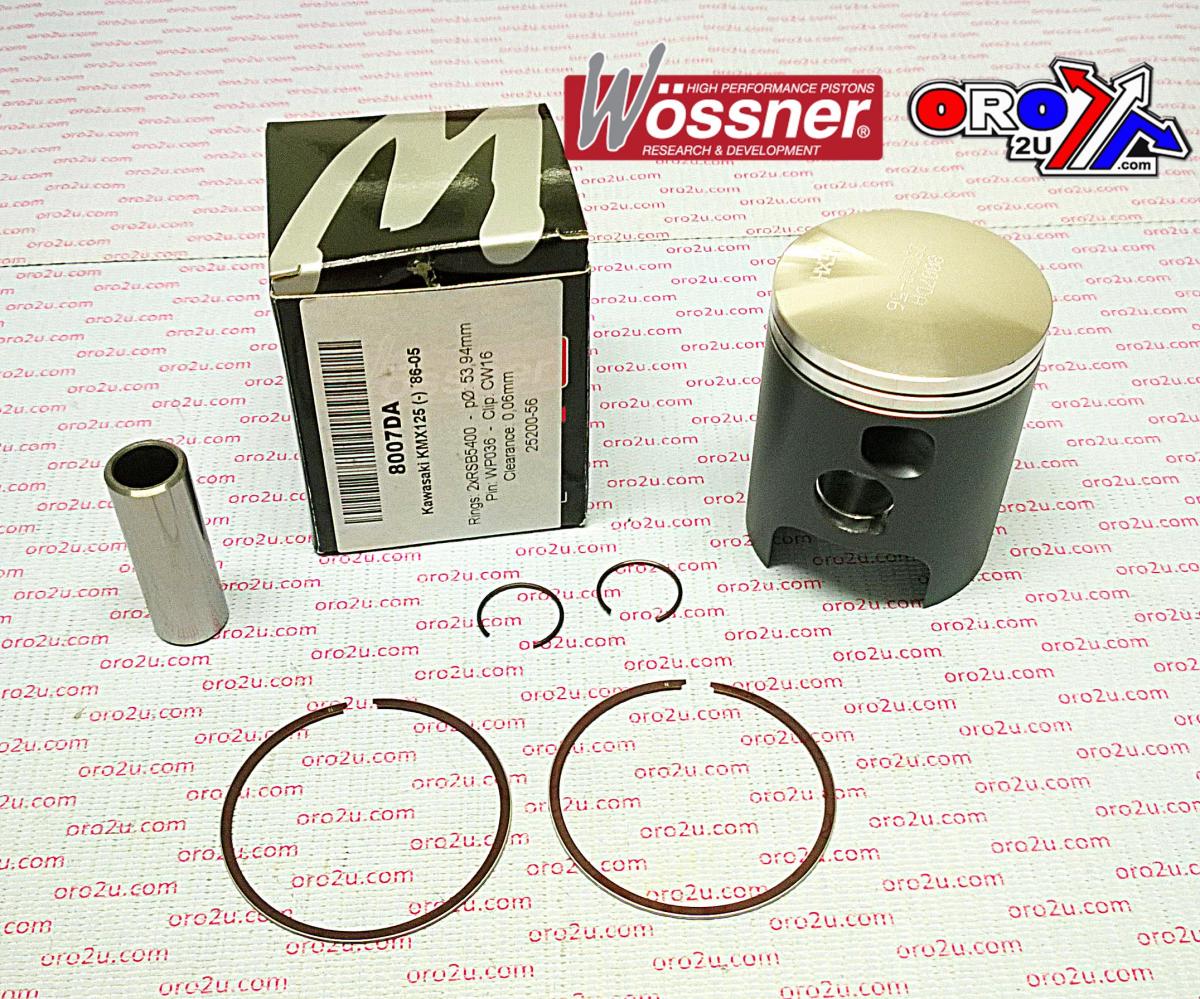

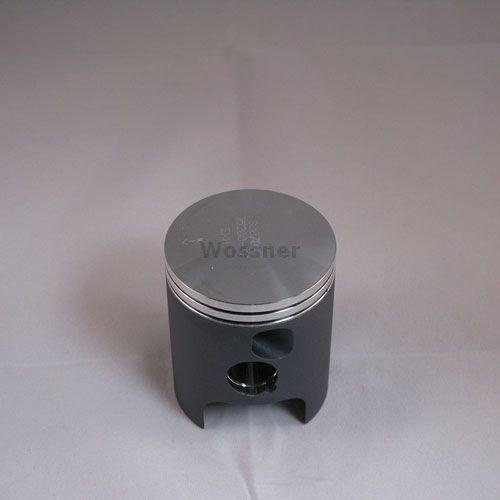

PISTON KIT 86-05 KMX125 56.00, FORGED WOSSNER 8007D200
Wossner forged piston kit with 56.00mm bore size. Features optimized heat transfer and uniform bearing surface distribution to prevent piston collapse. Forged construction offers superior strength and durability. Elliptical design ensures even pressure distribution, reducing localized stress. Manufactured in Germany for high-quality performance. Specifications: Bore Size: 56.00mm, Actual Bore: 55.94mm, Displacement: 125 cm³, Stroke: 54.40mm, Clearance: 0.06mm, Compression Ratio: 2-Stroke, Compression Height: 32.80mm, Lock Part Number: CW16, Pin Part Number: WP036, Ring Set Part Number: RSB5600 (2x). Wossner Piston Part Number: 8007D200.
- SKU
- 56-W150_2.00
- Brand
- Wossner
- Availability
- In Stock (2)
FULL DESCRIPTION
Wossner Forged Piston Kit - 56.00mm Bore
This Wossner forged piston kit is engineered for enhanced engine performance and durability. Designed with optimal heat transfer in mind, it promotes uniform bearing surface distribution to prevent piston collapse under demanding conditions. Precision manufactured in Germany, this kit delivers high-quality performance for your vehicle.
Key Features:
- Forged Construction: Provides superior strength and longevity for extreme use.
- Optimized Heat Transfer: Enhances engine efficiency and performance by managing heat effectively.
- Elliptical Design: Ensures even pressure distribution across the piston, reducing localized stress points.
- German Manufacturing: Guarantees precision engineering and high-quality standards.
Specifications:
- Bore Size: 56.00mm
- Actual Bore: 55.94mm
- Displacement: 125 cm³
- Stroke: 54.40mm
- Clearance: 0.06mm
- Compression Ratio: 2-Stroke
- Compression Height: 32.80mm
- Lock Part Number: CW16
- Pin Part Number: WP036
- Ring Set Part Number: RSB5600 (2 pieces)
Manufacturer Part Number: 8007D200
