PISTON KIT 86-07 CR80 49.00, WOSSNER 8237D200 HONDA MX
Wossner forged piston kit with a 49mm bore size (48.95mm actual) and 47.80mm stroke. This piston kit features an elliptical design for uniform bearing surfaces during heat expansion, improving durability and heat transfer within the combustion chamber. This reduces localised pressure points and distributes thrust loads evenly, preventing piston collapse. Features forged piston construction for superior strength, optimised for efficient heat transfer, and is manufactured in Germany. Specifications include a bore size of 49mm (actual 48.95mm), displacement of 80 cm³, stroke of 47.80mm, clearance of 0.05mm, compression height of 24.00mm. This is a 2-stroke piston kit. Cross-reference OEM part numbers: Piston Kit 8237D200, Lock CW14, Pin WP058, Ring Set RSB4900.
- SKU
- 56-W643.P8.WO
- Brand
- Wossner
- Availability
- Out of Stock
FULL DESCRIPTION
Wossner Forged Piston Kit - 49mm Bore
Enhance the performance and durability of your Honda CR80 with this high-quality Wossner forged piston kit. Engineered in Germany, this piston features a precise 49mm bore (48.95mm actual) and an innovative elliptical design.

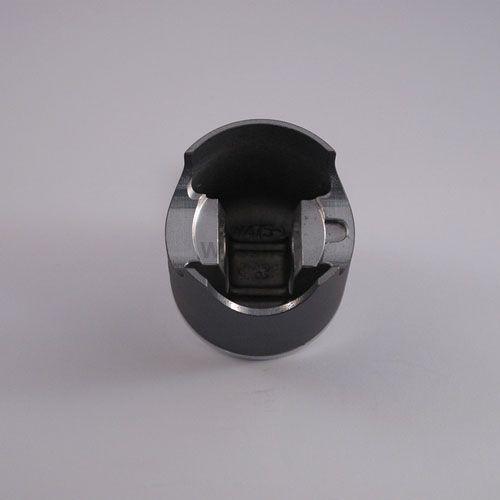

The elliptical shape is crucial for ensuring uniform bearing surfaces as the piston heats and expands during operation. This advanced design minimizes localised pressure points, distributing thrust loads evenly across the piston. The result is improved durability, better heat transfer from the combustion chamber to the cylinder walls, and a significant reduction in the risk of piston collapse.
Key Features
- Forged piston construction for superior strength and resilience.
- Elliptical design promotes uniform bearing surfaces under heat expansion.
- Optimised for efficient heat transfer, enhancing combustion chamber performance.
- Evenly distributes thrust loads, preventing piston collapse and extending service life.
- Precision manufactured in Germany for exceptional quality.
Specifications
- Bore Size: 49mm (actual 48.95mm)
- Displacement: 80 cm³
- Stroke: 47.80mm
- Clearance: 0.05mm
- Compression Height: 24.00mm
