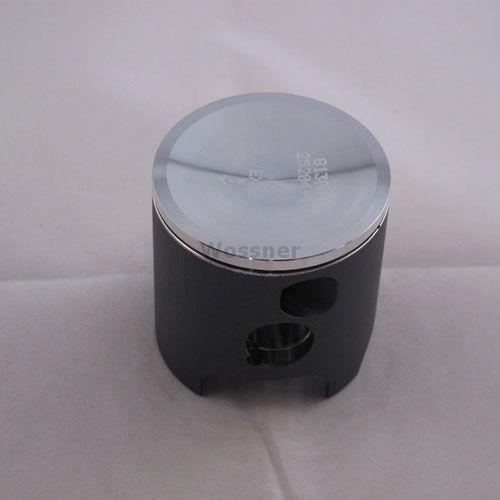

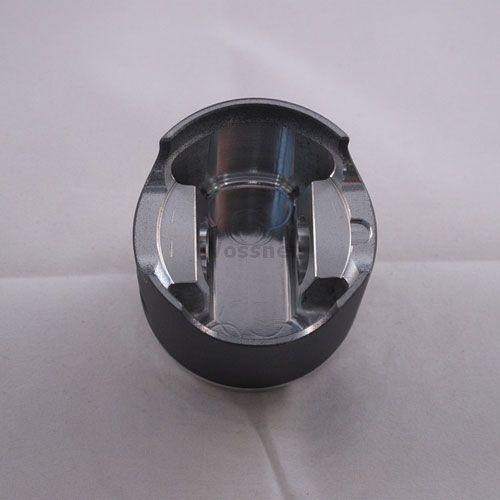

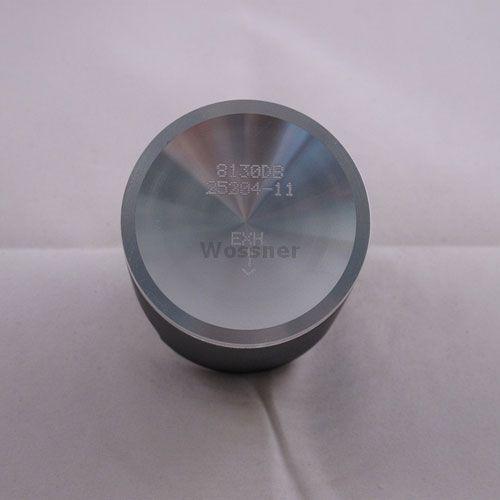

PISTON KIT 88-89 KX125 56.00, FORGED WOSSNER 8130DC
Wossner forged piston kit with a bore size of 56.02mm and an actual bore diameter of 55.96mm. Designed for durability and high performance, this piston kit is engineered for optimal heat transfer to cylinder walls, ensuring efficient combustion. The elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured in Germany to high-quality standards. Specifications include a displacement of 125 cm³, a stroke of 50.60mm, and a clearance of 0.06mm. Compression ratio is 2-Stroke for both Wossner and OEM. Compression height is 29.50mm. Included components are lock part number CW16, pin part number WP036, and ring set part number RSB5600. Weight is 198 grams.
- SKU
- 56-W208.C.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner Forged Piston Kit 56.00mm - High Performance and Durability
Enhance your motorcycle's performance and longevity with the Wossner Forged Piston Kit. This precision-engineered piston is designed for optimal heat transfer to cylinder walls, promoting efficient combustion and reliable operation. Its advanced elliptical design ensures a uniform bearing surface, even under extreme heat expansion, effectively preventing localized pressure and evenly distributing thrust loads to guard against piston collapse. Manufactured to exacting standards in Germany, this forged piston offers superior strength and durability.
Key Features:
- Forged Piston: Provides exceptional strength and enhanced durability for demanding applications.
- Optimized Heat Transfer: Engineered for efficient heat distribution to the cylinder walls, improving combustion performance.
- Elliptical Design: Prevents piston collapse by maintaining a uniform bearing surface under heat expansion and evenly distributing thrust loads.
- German Engineering: Manufactured in Germany, ensuring high-quality craftsmanship and materials.
Technical Specifications:
- Bore Size: 56.02mm
- Actual Bore Diameter: 55.96mm
- Displacement: 125 cm³
- Stroke: 50.60mm
- Clearance: 0.06mm
- Compression Height: 29.50mm

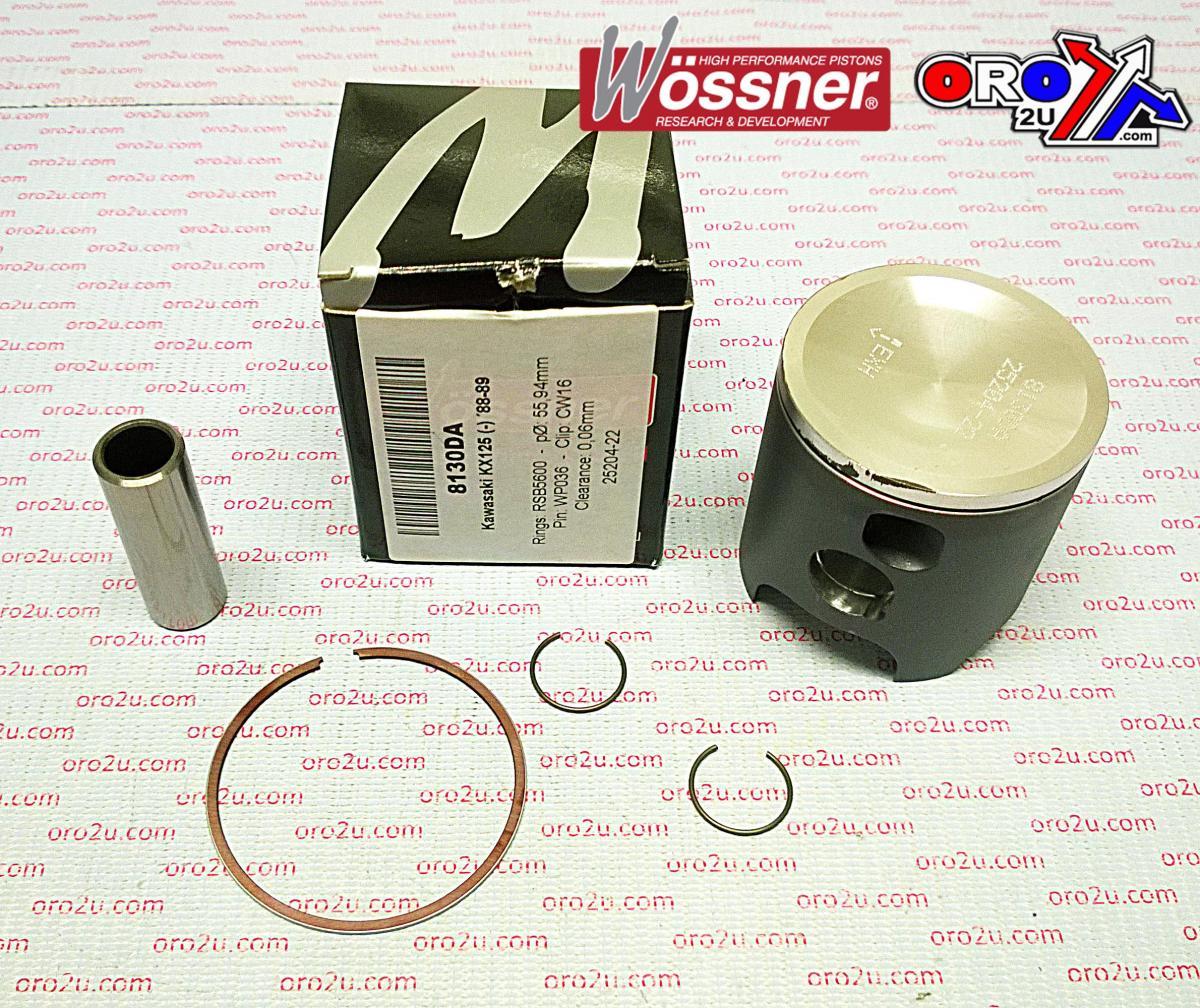

Included Components:
- Lock Part Number: CW16
- Pin Part Number: WP036
- Ring Set Part Number: RSB5600
