PISTON KIT 90-91 CR125 54.00, WOSSNER 8107DC HONDA MX
Wossner forged piston kit 54.02mm bore designed for Honda CR125 models from 1990 to 1991. Features include forged construction for enhanced strength, efficient heat dissipation, and an elliptical shape for consistent bearing surface and balanced thrust load distribution. Manufactured in Germany. Specifications include bore size 54.02 mm, piston diameter 53.96 mm, engine displacement 125 cm3, stroke 54.50 mm, clearance 0.06 mm, compression height 28.00 mm, and compression ratio 2-stroke. Cross-reference OEM part numbers: Piston Kit 8107DC, Lock CW15, Pin WP032, Ring Set RSB5400, Rod P2009. Weight 182g.
- SKU
- 56-W595+00C.WO
- Brand
- Wossner
- Availability
- Out of Stock
FULL DESCRIPTION
Wossner Forged Piston Kit - High Performance for Honda CR125
This Wossner forged piston kit is engineered for peak performance in Honda CR125 models. Manufactured in Germany to exacting standards, this piston is designed to handle the extreme demands of 2-stroke engine operation, offering superior heat transfer and robust structural integrity under thermal stress.
Key Features
- Forged Construction: Provides enhanced structural strength and improved performance capabilities.
- Optimized Heat Dissipation: Efficiently transfers heat away from the combustion chamber to the cylinder walls, aiding engine longevity and consistent power output.
- Elliptical Piston Design: Ensures a consistent bearing surface and balanced thrust load distribution for smoother operation and reduced wear.
- Precision Manufacturing: Made in Germany, guaranteeing high quality and reliability.
Specifications
- Bore Size: 54.02 mm
- Piston Diameter: 53.96 mm
- Engine Displacement: 125 cm³
- Stroke: 54.50 mm
- Clearance: 0.06 mm
- Compression Height: 28.00 mm
- Compression Ratio: 2-stroke (Wossner and OEM)

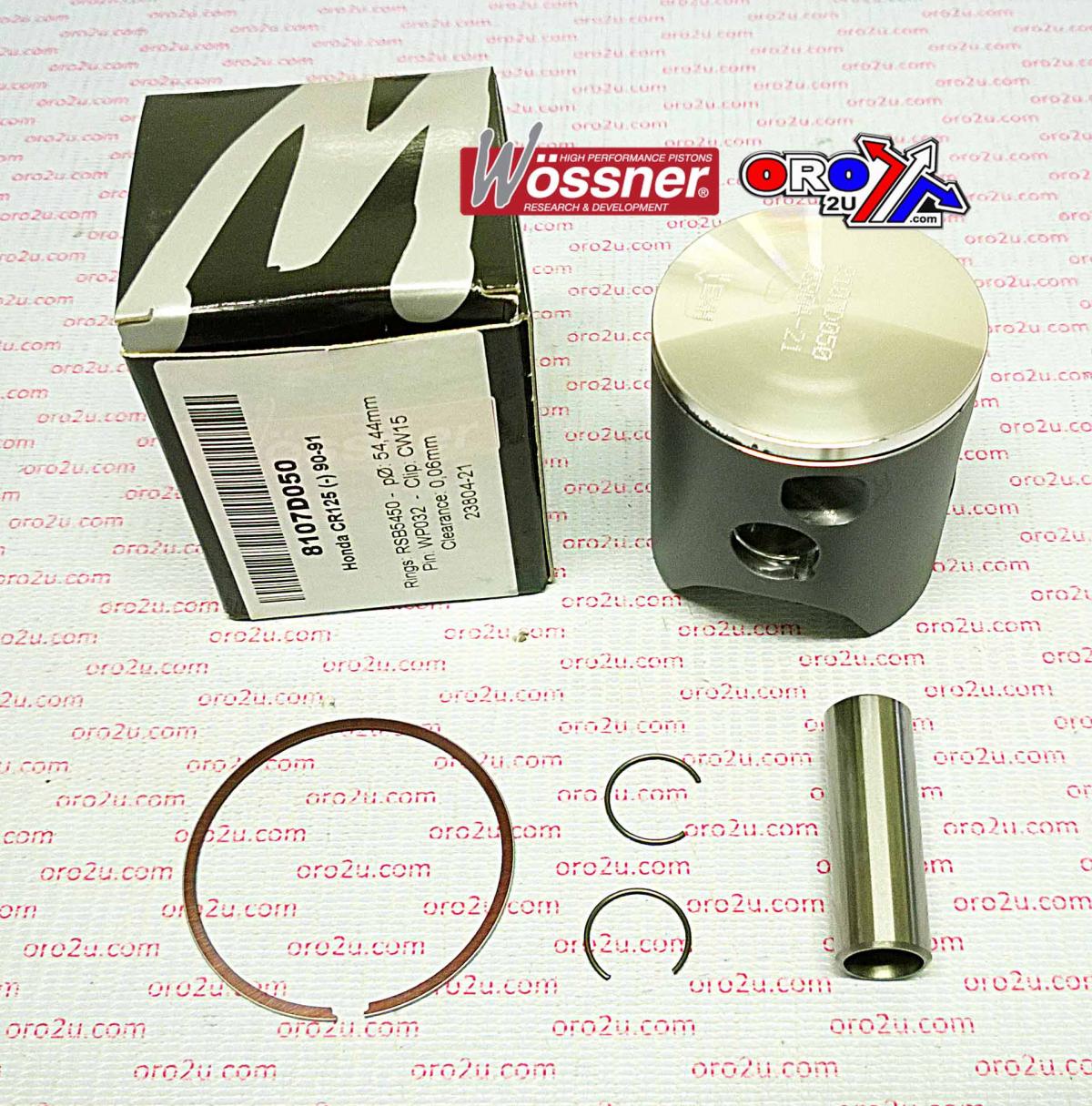

Included Components
- Piston Kit: 8107DC
- Lock: CW15
- Pin: WP032
- Ring Set: RSB5400
- Rod: P2009
