PISTON KIT 90-93 YZ125 56.00 C, WOSSNER 8114DC YAMAHA MX
Wossner 8114DC Piston Kit. Bore size 56.02mm (+0.02 oversize). Designed for Yamaha YZ125 two-stroke motorcycles 1990-1993. Features forged piston construction for strength and reliability, enhanced heat dissipation, and an elliptical profile for even load distribution. Manufactured in Germany. Specifications include 124 cm³ displacement, 50.70mm stroke, 0.06mm piston-to-wall clearance, 28.00mm compression height, and 2-stroke compression ratio. Includes Wossner piston, lock CW16, pin WP036, ring set RSB5600 x 2, and rod P2047.
- SKU
- 56-W629+00C.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner 56.02mm Piston Kit for Yamaha YZ125 (1990-1993)
This Wossner piston kit is engineered for high-performance Yamaha YZ125 two-stroke motorcycles. It features a forged construction for superior strength and durability, designed to withstand the rigors of demanding riding conditions. The precision elliptical geometry of the piston ensures consistent expansion and even distribution of thrust loads, contributing to optimal engine performance and longevity.
Key Features:
- Forged piston construction for enhanced strength and reliability.
- Optimized for improved heat dissipation from the combustion chamber to the cylinder wall.
- Elliptical piston profile reduces localized pressure and ensures even thrust load distribution.
- Manufactured in Germany to stringent quality and performance standards.
Specifications:
- Engine Displacement: 124 cm³
- Bore Size: 56.02mm (0.02mm oversize)
- Stroke: 50.70mm
- Piston-to-Wall Clearance: 0.06mm
- Compression Height: 28.00mm
- Compression Ratio: Compatible with 2-stroke Wossner and OEM specifications.

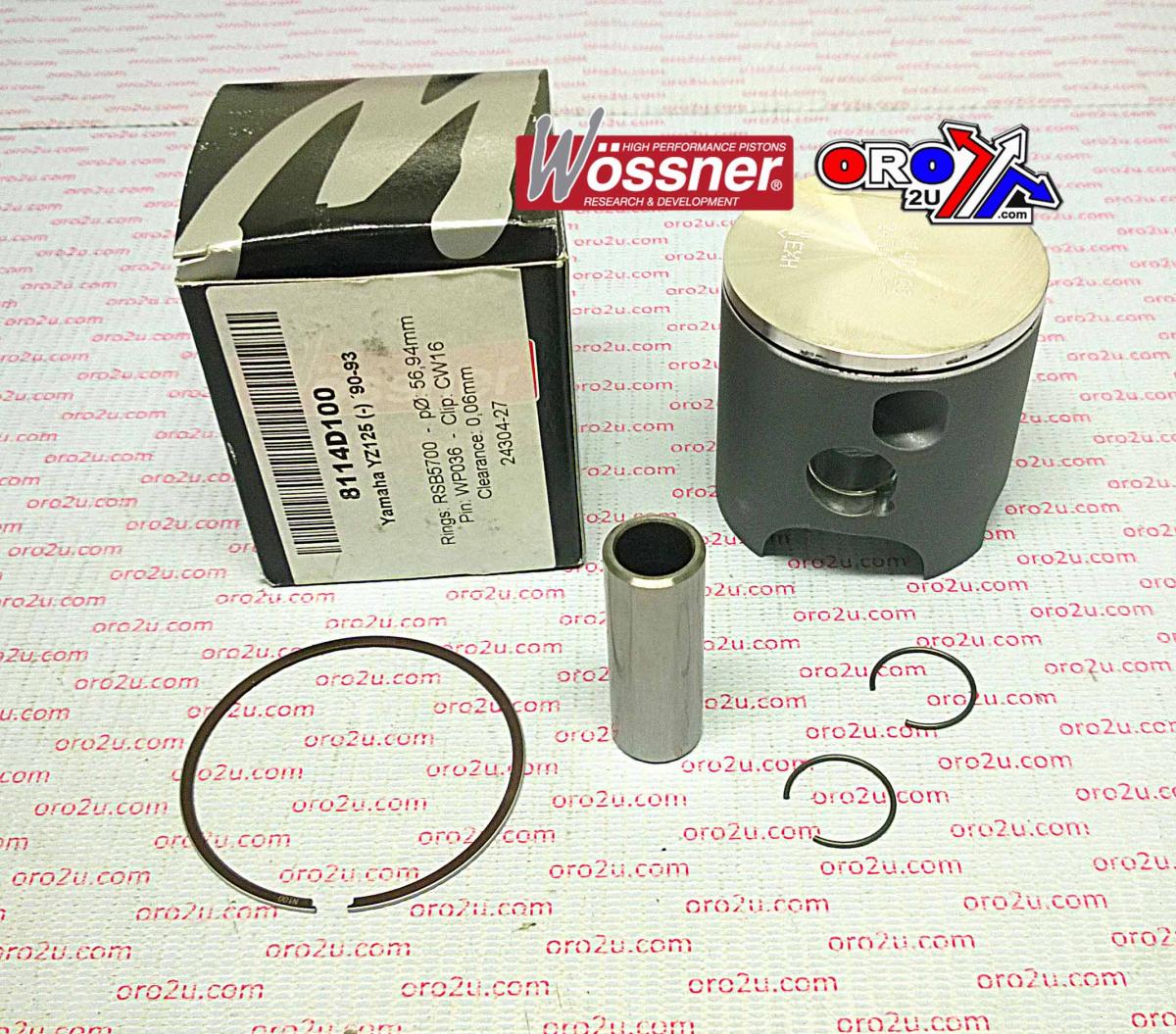

Included Components:
- Wossner Piston: 8114DC
- Lock Ring: CW16
- Piston Pin: WP036
- Ring Set: RSB5600 (x2)
