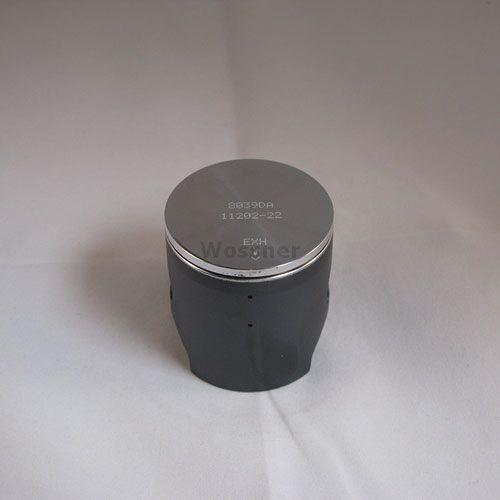

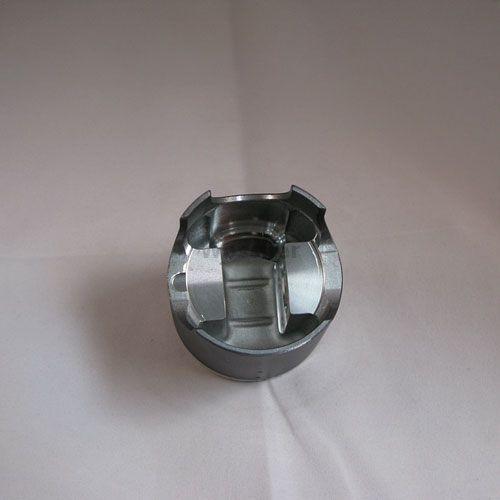

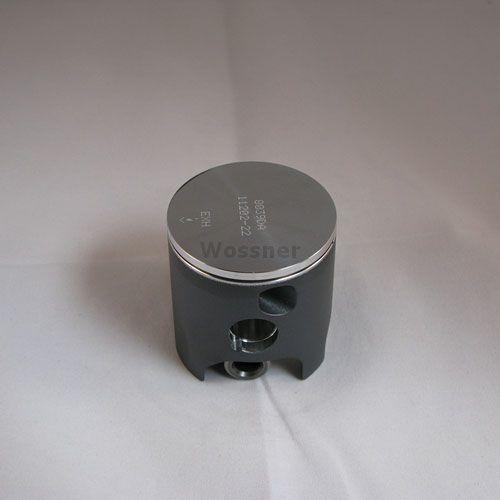

PISTON KIT 92-98 RGV250 56.00 1-RING, FORGED WOSSNER 8039DB
Wossner forged piston kit with a 56.00mm bore and 55.96mm diameter. Manufactured in Germany, this piston offers superior strength and design, ensuring optimal heat transfer to cylinder walls. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Features include forged construction for superior strength, optimized heat transfer for efficient combustion, and an elliptical design for uniform load distribution. Specifications: Bore 56.00mm, Diameter 55.96mm, Display (cm³) 249, Stroke (mm) 50.60, Clearance (mm) 0.05, Wossner Compression Ratio 2-Stroke, OEM Compression Ratio 2-Stroke, Compression Height (mm) 28.50. Cross-reference OEM Part Numbers: Wossner Piston Suzuki RGV250 / Aprilia RS250 (PN# 8039DB), Ring Set P/N: RSB5600, Lock P/N: CW18, Pin P/N: WP033.
- SKU
- 56-W255.B.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner Forged Piston Kit - 56.00mm Bore
Upgrade your motorcycle's performance with this Wossner forged piston kit. Engineered for exceptional strength and durability, this piston is designed to deliver optimal performance under demanding conditions. Manufactured in Germany, Wossner pistons are renowned for their superior quality and advanced design.
The unique elliptical design of this piston ensures a uniform bearing surface, even when subjected to heat expansion. This advanced feature reduces localized pressure points and evenly distributes thrust loads, effectively preventing piston collapse and promoting a longer lifespan for your engine.
This piston kit is meticulously crafted to optimize heat transfer to the cylinder walls, contributing to efficient combustion and overall engine reliability.
Key Features:
- Forged Construction: Provides superior strength and resistance to stress.
- Optimized Heat Transfer: Enhances combustion efficiency and engine cooling.
- Elliptical Piston Design: Ensures uniform load distribution and prevents premature wear by adapting to thermal expansion.
- High-Quality Manufacturing: Made in Germany to exacting standards.
- 1-Ring Design: Engineered for specific performance characteristics.
Specifications:
- Bore Size: 56.00mm
- Piston Diameter: 55.96mm
- Display (cm³): 249
- Stroke (mm): 50.60
- Clearance (mm): 0.05
- Compression Height (mm): 28.50

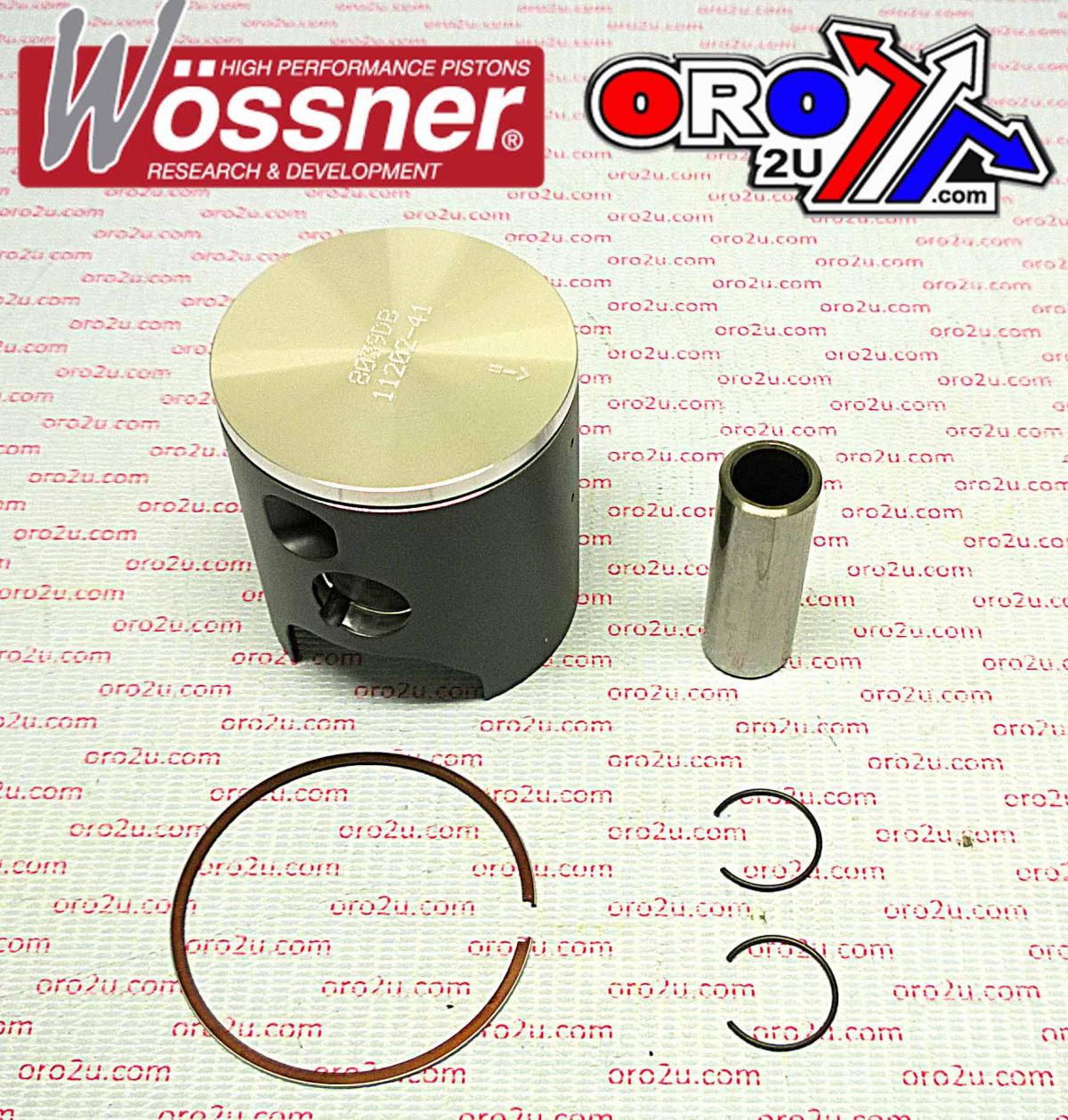

Included Components:
- Piston
- Ring Set P/N: RSB5600
- Lock P/N: CW18
- Pin P/N: WP033
