PISTON KIT 93-02 YZ80 47.00 B, WOSSNER 8188DB YAMAHA MX
Wossner 8188DB piston kit features a high-performance forged piston designed for optimal heat transfer, structural integrity, and load distribution. Its elliptical design ensures an even bearing surface under thermal expansion, minimising the risk of piston collapse and improving reliability. Manufactured in Germany, this kit offers superior strength and longevity with efficient heat dissipation. Specifications include a bore of 47.01 mm, actual piston diameter of 46.96 mm, stroke of 47.80 mm, displacement of 82 cm³, clearance of 0.05 mm, and compression height of 26.00 mm. This 2-stroke piston kit includes Wossner part number 8188DB, lock CW14, pin WP058, ring set RSB4700, rod P2008, and internal part number 56-W646+00B.WO. Weight is 130 grams.
- SKU
- 56-W646+00B.WO
- Brand
- Wossner
- Availability
- In Stock (2)
FULL DESCRIPTION
Wossner 8188DB Forged Piston Kit
Upgrade your Yamaha YZ80 with the Wossner 8188DB Forged Piston Kit. This high-performance piston is engineered in Germany for superior strength, optimal heat transfer, and reliable load distribution, ensuring peak performance under demanding conditions.
Key Features
- Forged piston construction for enhanced durability and longevity.
- Elliptical piston profile designed for balanced load distribution and reduced stress during thermal expansion.
- Engineered for efficient heat dissipation to cylinder walls, promoting optimal combustion.
- Precision manufactured in Germany for exceptional quality and performance.
Specifications
- Bore: 47.01 mm
- Actual Piston Diameter: 46.96 mm
- Stroke: 47.80 mm
- Displacement: 82 cm³
- Clearance: 0.05 mm
- Compression Height: 26.00 mm
- Type: 2-stroke

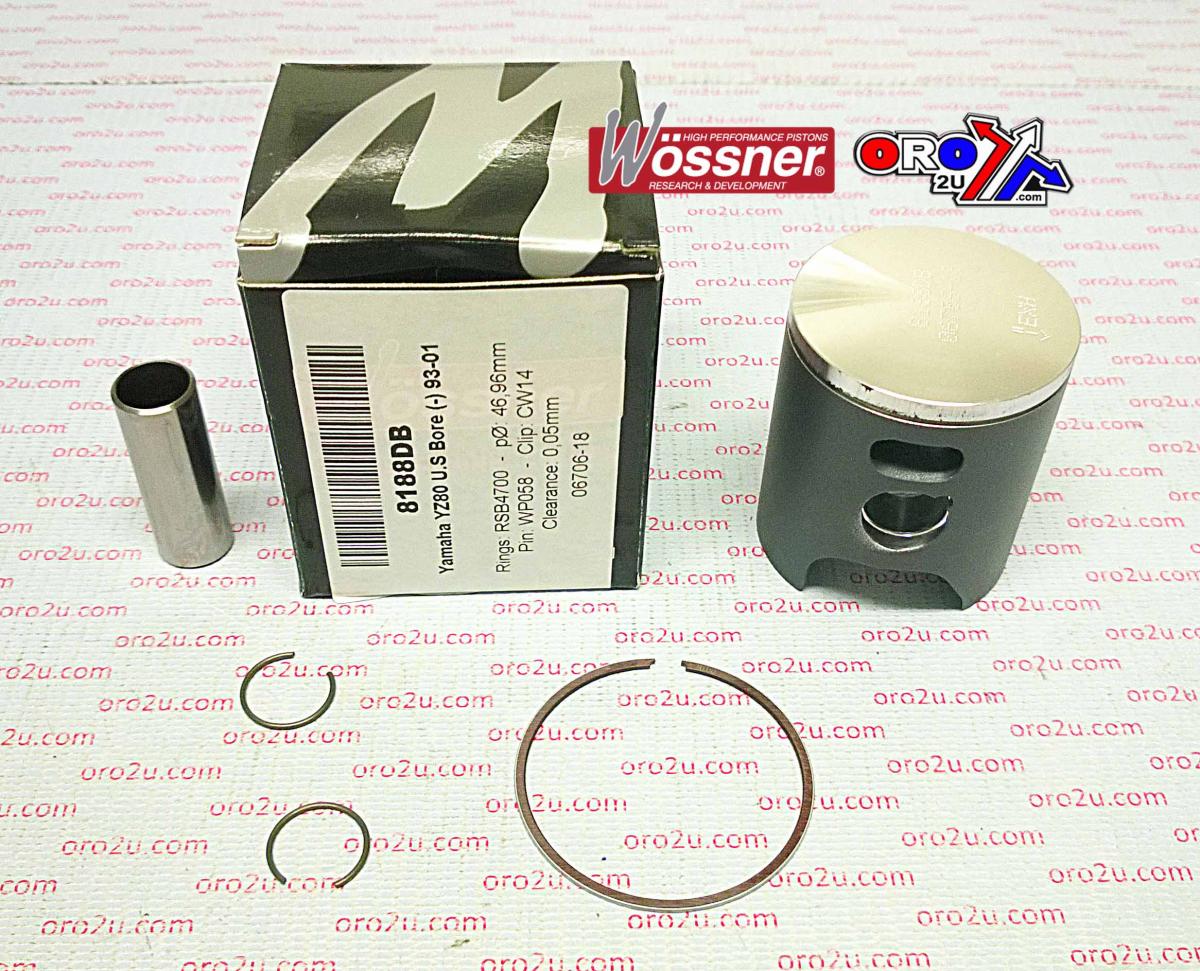

Kit Components (Cross-Reference)
- Piston: Wossner 8188DB
- Lock: CW14
- Pin: WP058
- Ring Set: RSB4700
