PISTON KIT 95-03 TRX400 87.00, FORGED WOSSNER 8599D100
Wossner 87mm Bore Piston Kit 8599D100 is a high-performance forged piston designed for Honda TRX400 4x4 models. It optimizes heat transfer within the combustion chamber and features an elliptical design for even load distribution, reducing localized pressure and preventing piston collapse. Manufactured in Germany, this piston maintains the OEM compression ratio for reliable engine performance. Features include high-strength forged piston construction, optimized heat transfer, and an elliptical design for even thrust load distribution. Specifications include an 87mm bore size, 86.93mm actual bore diameter, OEM compression ratio, 394cc displacement, 68.00mm stroke, 0.07mm clearance, +0.00cm³ dome volume, and 25.00mm compression height. Cross-reference OEM part numbers include Lock P/N: CW19, Pin P/N: WP050, and Ring Set P/N: 870XSY.
- SKU
- 56-W4669_100.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION

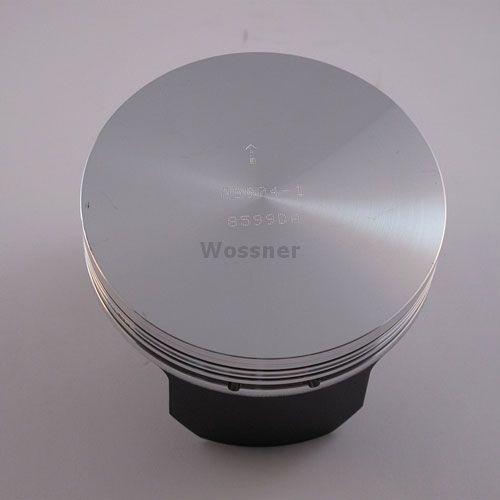

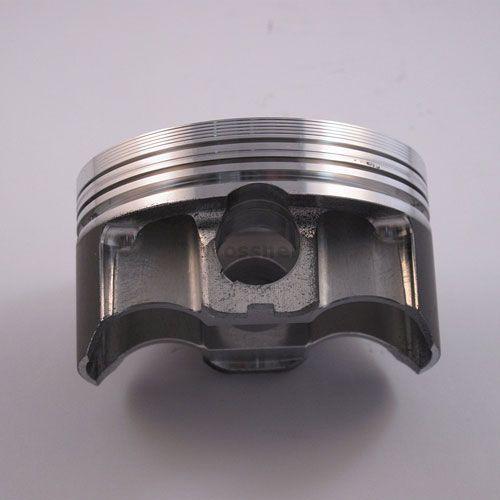

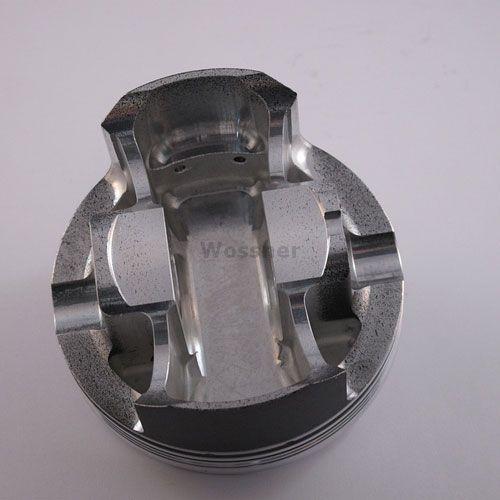

Wossner 87mm Bore Piston Kit
The Wossner 87mm Bore Piston Kit (Part No. 8599D100) is a premium, high-performance forged piston engineered for optimal engine function. Designed in Germany, this piston enhances heat transfer within the combustion chamber, promoting efficient combustion. Its specialized elliptical design ensures even load distribution across the piston's surface, effectively reducing localized pressure and preventing potential piston collapse for increased durability.
Key Features:
- High-strength forged piston construction for superior durability.
- Elliptical design for balanced thrust load distribution, minimizing stress.
- Optimized heat transfer for improved combustion efficiency.
- Manufactured to exacting standards in Germany.
- Maintains the Original Equipment Manufacturer (OEM) compression ratio for reliable performance.
Technical Specifications:
- Bore Size: 87.00mm
- Actual Bore Diameter: 86.93mm
- Compression Ratio: OEM
- Displacement: 394cc
- Stroke: 68.00mm
- Piston Clearance: 0.07mm
- Dome Volume: +0.00cm³
- Compression Height: 25.00mm

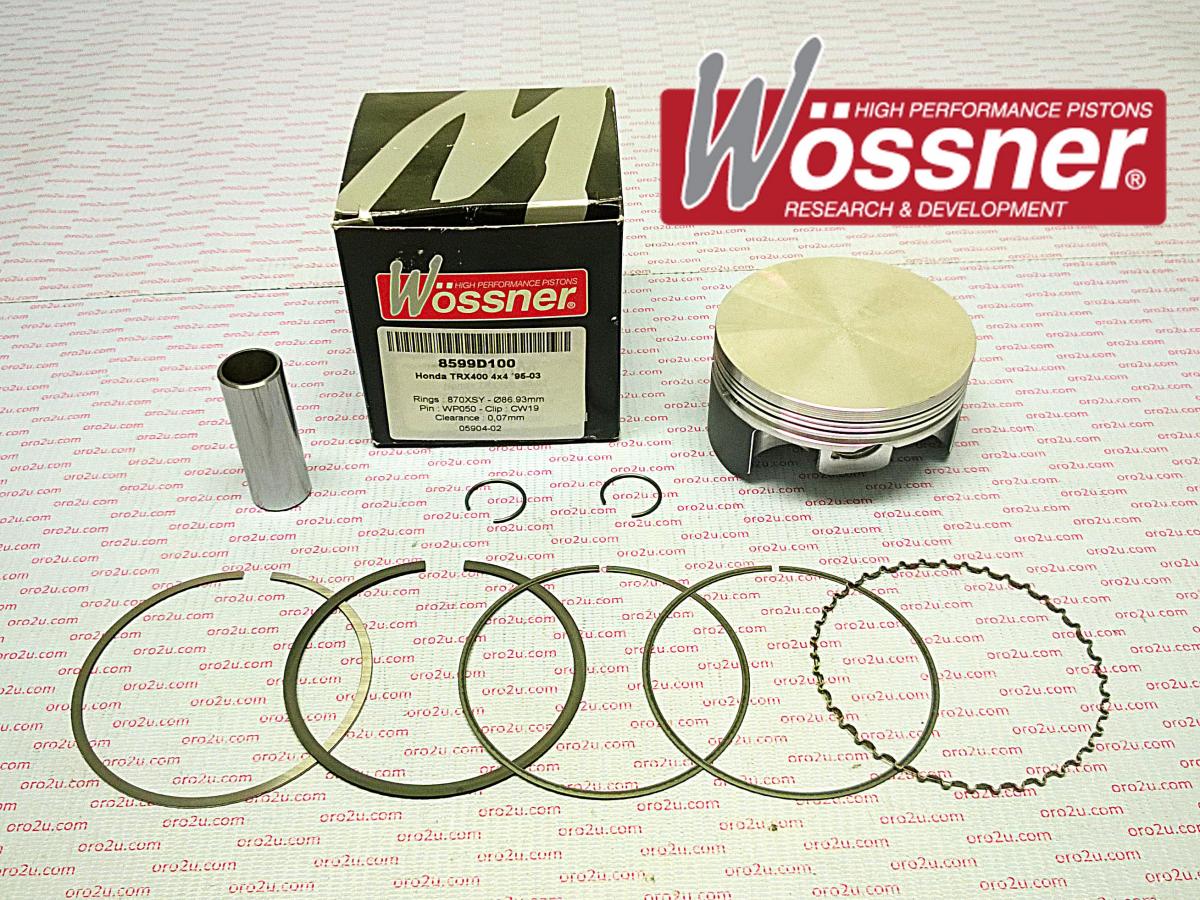

Included Components and Cross-References:
- Lock Pin Part Number: CW19
- Wrist Pin Part Number: WP050
- Ring Set Part Number: 870XSY
