PISTON KIT 97-09 KTM60 SX 43.5, FORGED WOSSNER 8240DB
Wossner forged piston kit with a 43.51mm bore (43.46mm) and 60 cm³ displacement for models from 1997 to 2009. Designed for superior strength and heat transfer efficiency, this piston ensures optimal combustion performance. The elliptical design distributes thrust loads evenly, reducing localized pressure and preventing piston collapse. Manufactured in Germany. Features include forged piston for increased strength and durability, optimized heat transfer for improved performance, elliptical design ensuring uniform bearing surface under heat expansion, and even thrust load distribution to prevent piston collapse. Specifications: Bore Size 43.51mm (43.46mm), Part Number 8240DB, Lock Part Number CW12, Pin Part Number WP091, Ring Set Part Number RSB4350, Stroke 40.00mm, Clearance 0.05mm, Compression Ratio 2-stroke, Compression Height 21.60mm.
- SKU
- 56-W312.B.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION

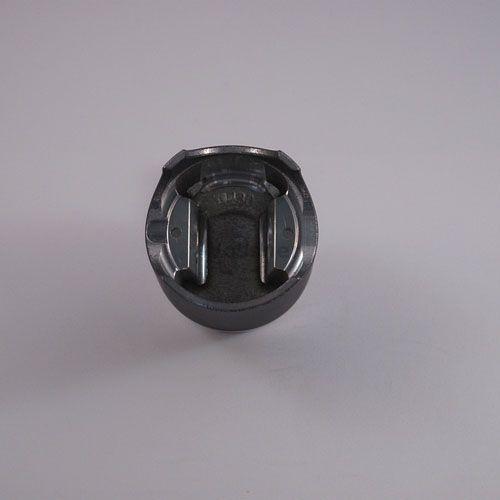

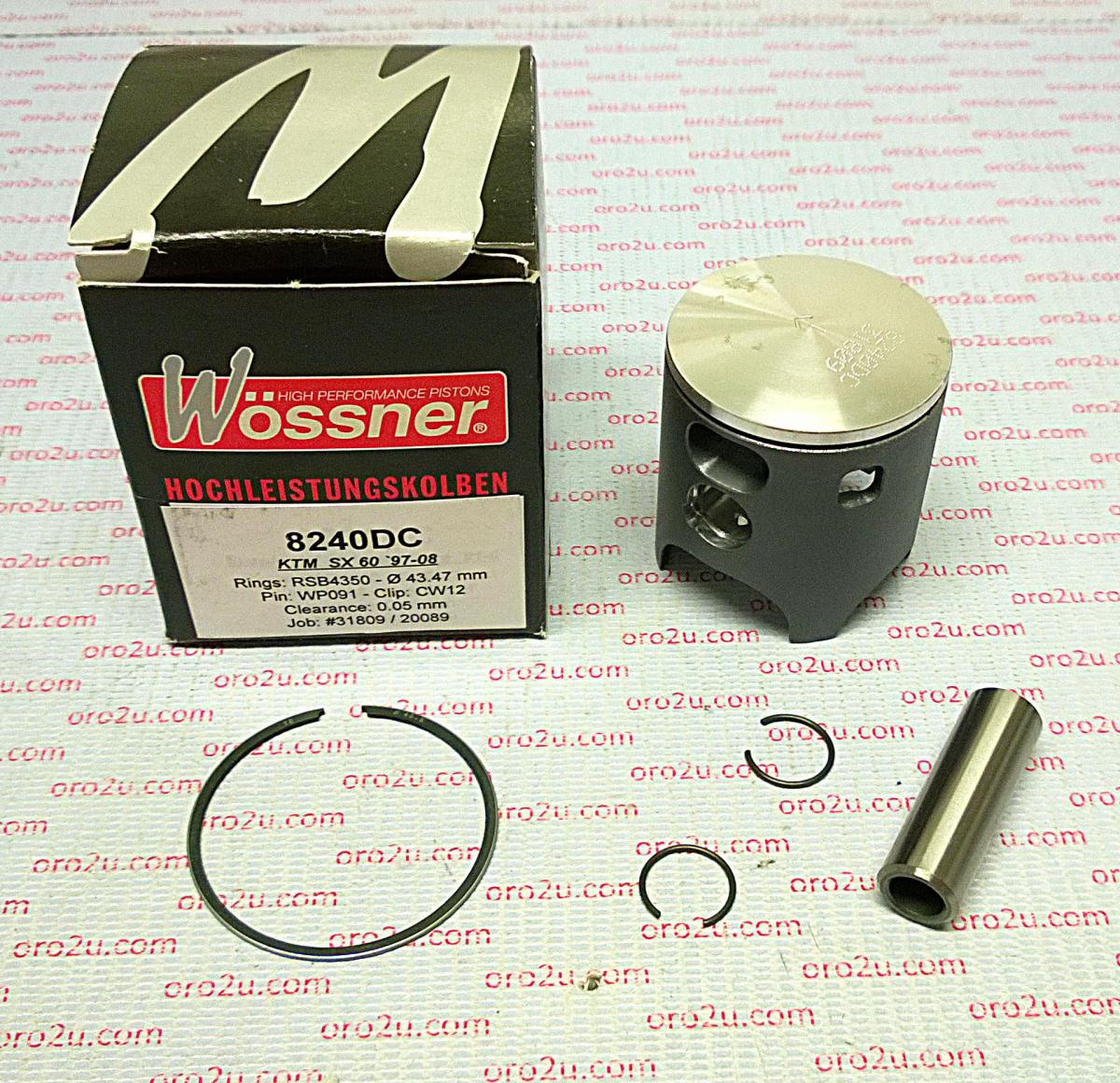

Wossner Forged Piston Kit 43.51mm Bore
Enhance your engine's performance and durability with the Wossner forged piston kit. This high-quality piston is engineered for superior strength and efficient heat transfer, ensuring optimal combustion even under demanding conditions. The innovative elliptical design is crafted to distribute thrust loads evenly, minimizing localized pressure and preventing potential piston collapse. Manufactured with precision in Germany, this piston kit is built to last.
Key Features:
- Forged construction for exceptional strength and longevity.
- Engineered for optimized heat transfer, leading to improved performance.
- Features an elliptical design that provides a uniform bearing surface, even with heat expansion.
- Distributes thrust loads evenly to effectively prevent piston collapse.
- Proudly manufactured in Germany.
Specifications:
- Bore Size: 43.51mm (43.46mm)
- Lock Part Number: CW12
- Pin Part Number: WP091
- Ring Set Part Number: RSB4350
- Stroke: 40.00mm
- Clearance: 0.05mm
- Compression Ratio: 2-stroke
- Compression Height: 21.60mm
