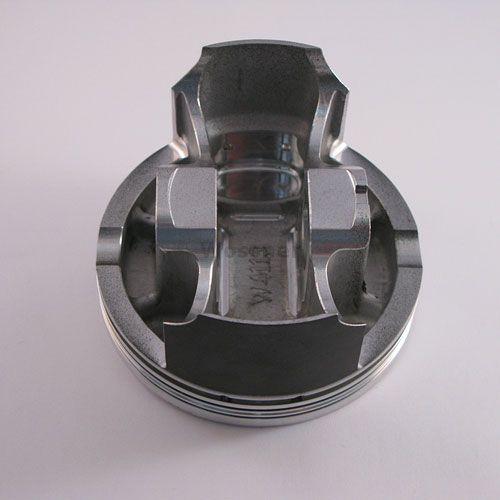

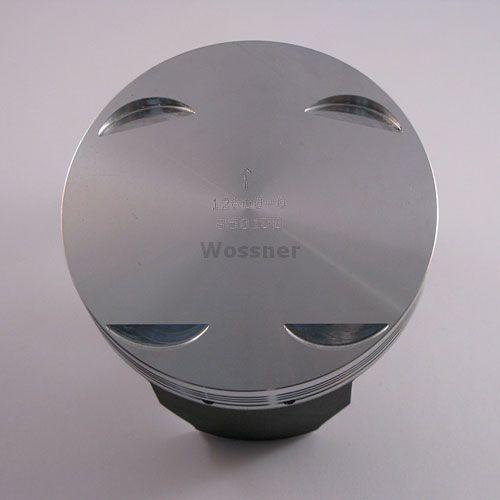

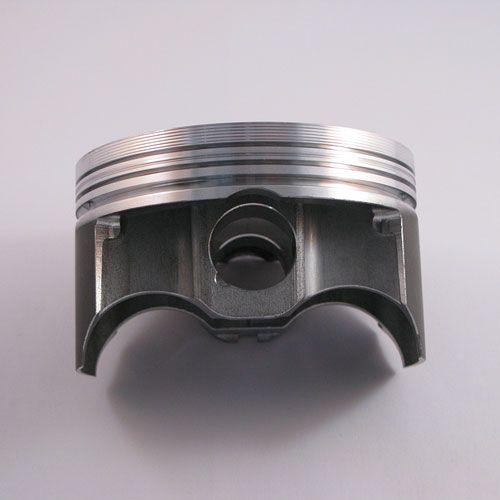

PISTON KIT 98-01 YFM600 98.00, FORGED WOSSNER 8501D300

Wossner 98.00mm Forged Piston Kit

This Wossner forged piston kit is engineered for exceptional strength and durability, offering a significant upgrade for your engine. Designed for optimal heat transfer, it promotes efficient cooling within the combustion chamber, contributing to improved performance and longevity. The unique elliptical design ensures a uniform bearing surface, effectively reducing localized pressure and evenly distributing thrust loads. This intelligent design prevents piston collapse and maintains structural integrity under demanding conditions.

Key Features:

• Forged construction for superior strength and extended lifespan.
• Engineered for optimized heat transfer, enhancing cooling efficiency.
• Elliptical piston design minimizes stress and prevents collapse.
• Ensures even distribution of thrust loads for reliable operation.
• Precision manufactured in Germany to exacting quality standards.

Technical Specifications:

• Bore Size: 98.00mm
• Actual Bore Diameter: 97.93mm
• Displacement: 595 cm³
• Stroke: 84.00mm
• Clearance: 0.07mm
• Wossner Compression Ratio: 10.70:1
• OEM Compression Ratio: 8.50:1
• Dome Volume: -0.50 cm³
• Compression Height: 28.00mm
• Lock Part Number: CW22
• Pin Part Number: WP009
• Ring Set Part Number: 980XSY
