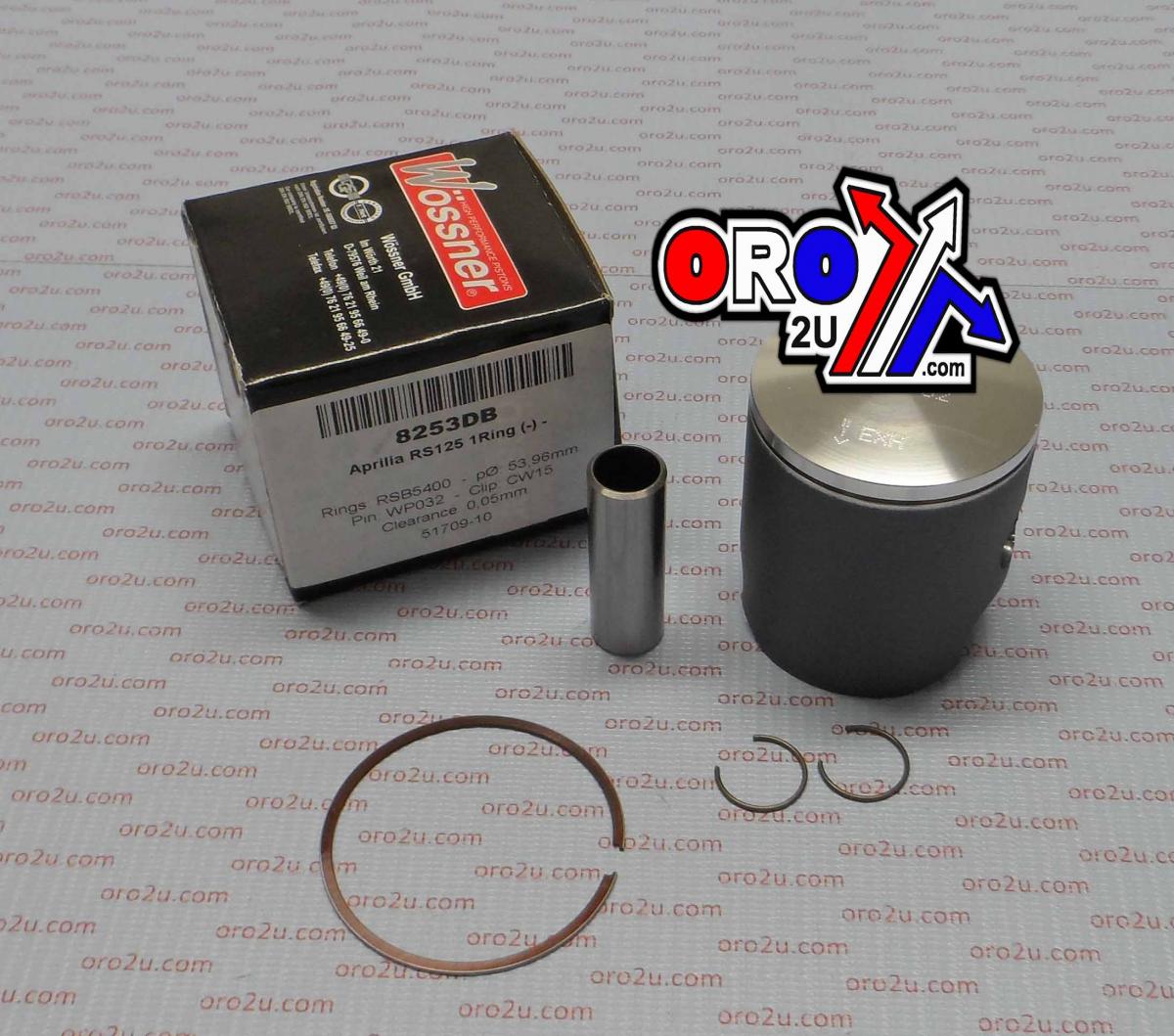

PISTON KIT Aprilia RS125 B, FORGED WOSSNER KIT 8253DB, SINGLE RING
Wossner forged piston kit with a 54.01mm bore and 53.96mm diameter. Features elliptical design for uniform bearing surface during thermal expansion, enhances heat transfer from combustion chamber to cylinder walls, and helps prevent piston collapse by evenly distributing thrust loads. Manufactured in Germany. Specifications: Bore: 54.01mm, Diameter: 53.96mm, Displacement: 125 cm³, Stroke: 54.50 mm, Clearance: 0.05 mm, Compression Ratio: 2-stroke, Compression Height: 29.00 mm, Ring Type: Single Ring, Clips P/N: CW15, Pin P/N: WP032, Ring Set P/N: RSB5400. Cross-reference OEM Part Numbers: 56-W9913.00B.WO, Wossner Piston 8253DB.
- SKU
- 56-W9913.00B.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner Forged Piston Kit for Aprilia RS125
Upgrade your Aprilia RS125's performance with this high-quality Wossner forged piston kit. Engineered in Germany, this piston is designed for durability and optimal power output.
Key Features:
- Forged construction for exceptional strength and longevity under demanding conditions.
- Elliptical piston design promotes uniform bearing surface distribution, even with thermal expansion.
- Optimized for superior heat transfer from the combustion chamber to the cylinder walls, aiding in temperature management.
- Helps prevent piston collapse by effectively distributing thrust loads across the piston surface.
- Features a single-ring design for reduced friction and enhanced responsiveness.
- Precision manufactured in Germany to exacting standards.
Specifications:
- Bore Size: 54.01mm
- Piston Diameter: 53.96mm
- Displacement: 125 cm³
- Stroke: 54.50 mm
- Piston to Cylinder Clearance: 0.05 mm
- Compression Height: 29.00 mm
- Ring Type: Single Ring
- Clip Part Number: CW15
- Pin Part Number: WP032
- Ring Set Part Number: RSB5400
Manufacturer Part Cross-References:
- Wossner Piston: 8253DB
