PISTON KIT B 88mm KTM/HUSQ/GASGAS 350, ATHENA S5F08800001B

Athena Forged Piston Kit B - 88mm

Enhance your motorcycle's performance and reliability with the Athena Forged Piston Kit. Expertly crafted for off-road use, this piston kit is manufactured using advanced reverse extrusion and CNC machining techniques, ensuring exceptional dimensional accuracy and superior strength.

Made from a specialized high-silicon aluminum alloy, Athena pistons offer robust durability and performance comparable to or exceeding Original Equipment (OE) specifications. The piston skirts may feature a molybdenum disulfide coating, applied via screen printing, to further reduce friction, boost performance, and extend longevity.

Each piston is engineered and tested by Athena's R&D department to meet the highest quality standards, validated on engine dynamometers and in extreme track conditions. The included piston rings, produced in Japan with wear-resistant coatings, minimize friction with the cylinder, contributing to higher performance and durability.

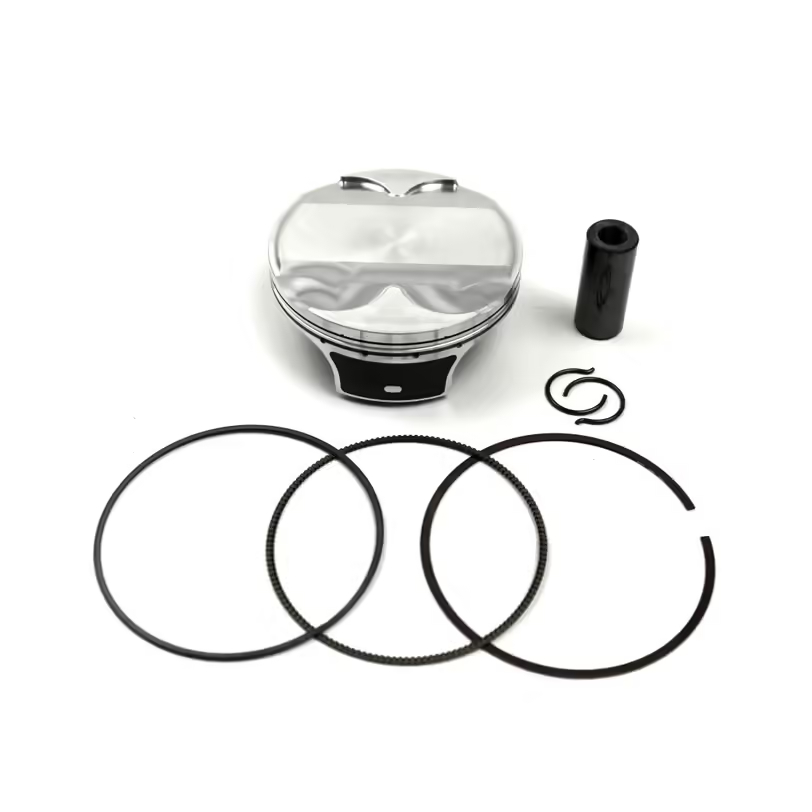

This comprehensive kit includes the piston, pin, circlips, and piston rings, all of which are replaceable and interchangeable.

Key Features:

• Forged piston for enhanced strength and performance.
• Special high-performance aluminum alloy with high silicon content.
• CNC machined for dimensional tolerances of less than 0.01 mm.
• Optimized profile for regular flow and perfect flame propagation.
• May include molybdenum disulfide coating on skirts for reduced friction.
• High-quality piston rings with wear-resistant coatings for increased durability.
• Kit includes piston, pin, circlips, and piston rings.
• Designed for optimal performance and reliability.

Technical Specifications:

• Bore Diameter: 87.96 mm
• Compression Height: 20.50 mm
• Compression Ratio: 14.2:1
• Displacement: 349 cc
• Number Of Segments: 2
• Piston Head Type: Flat
• Piston Pin Type: Standard
• Big End Pin Diameter: 18x10x42 mm
