PISTON KIT HONDA CR125 92-99 55.00, WOSSNER 8020D100,
Wossner Forged Piston Kit 55.00mm Bore for Honda CR125 (1992-1999). This forged piston kit features a 55.00 mm bore and 54.95 mm piston diameter, suitable for overbored cylinders. Forged in Germany, it offers superior strength and thermal performance with an elliptical design for even load distribution and reduced wear. Specifications include a 125 cm³ engine displacement, 54.50 mm stroke, 0.05 mm clearance, 28.00 mm compression height, and a 2-stroke compression ratio. Cross-reference part numbers: Piston Kit 8020D100, Lock CW15, Pin WP032, Ring Set RSB5500, Rod P2009. Weight: 184g.
- SKU
- 56-W613_100.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION

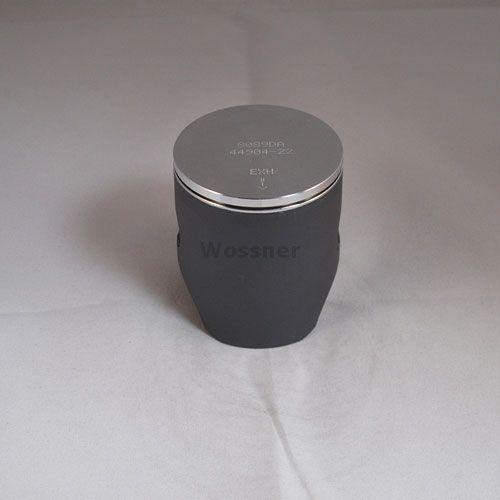

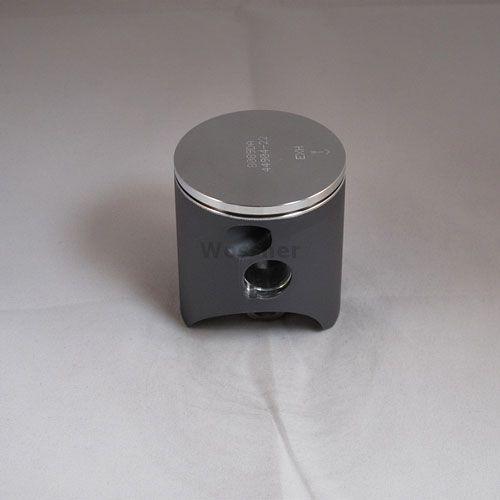

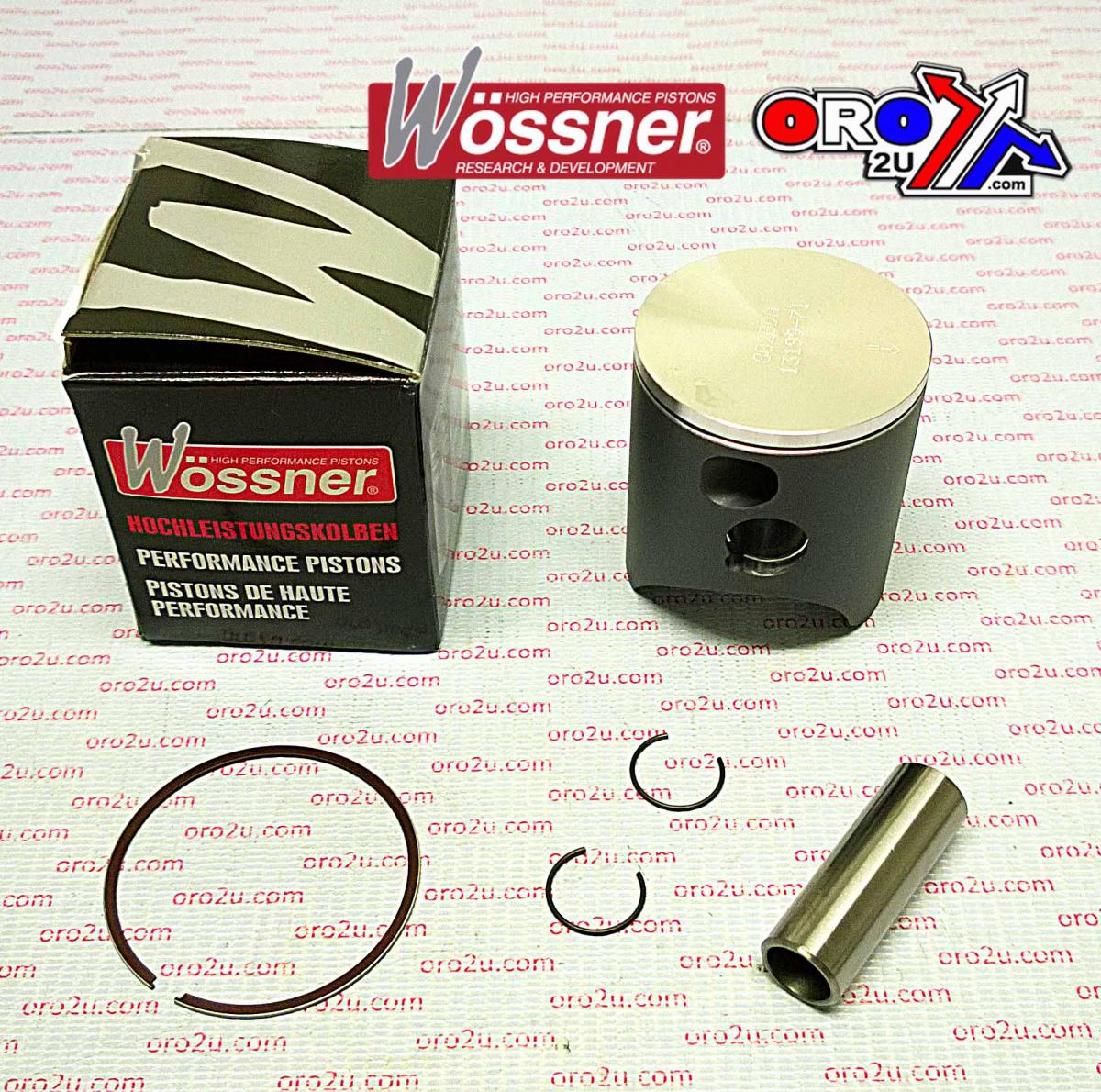

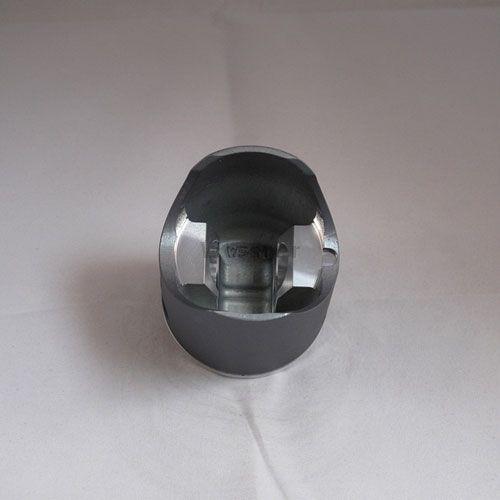

Wossner Forged Piston Kit 55.00mm Bore - Honda CR125 (1992-1999)
This Wossner forged piston kit is designed for Honda CR125 models manufactured between 1992 and 1999. Featuring a 55.00 mm bore and a piston diameter of 54.95 mm, this kit is suitable for cylinders that have been bored oversize by 1.00 mm. Forged in Germany, the piston is engineered for superior strength and thermal performance. Its elliptical design helps to evenly distribute load, reducing wear and enhancing durability.
Key Features:
- Forged construction ensures high durability and strength under demanding conditions.
- Designed for efficient heat transfer to improve engine cooling.
- Features an elliptical profile for even load distribution, minimizing piston deformation and wear.
- Precision manufactured in Germany for consistent quality.
Specifications:
- Bore Size: 55.00 mm
- Piston Diameter: 54.95 mm
- Engine Displacement: 125 cm³
- Stroke: 54.50 mm
- Clearance: 0.05 mm
- Compression Height: 28.00 mm
- Compression Ratio: 2-stroke (compatible with Wossner and OEM specifications)
Wossner Cross-Reference Part Numbers:
- Piston Kit: 8020D100
- Lock Ring: CW15
- Piston Pin: WP032
- Ring Set: RSB5500
- Connecting Rod: P2009
