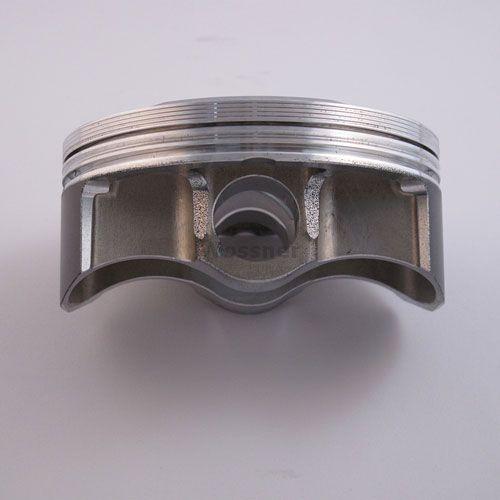

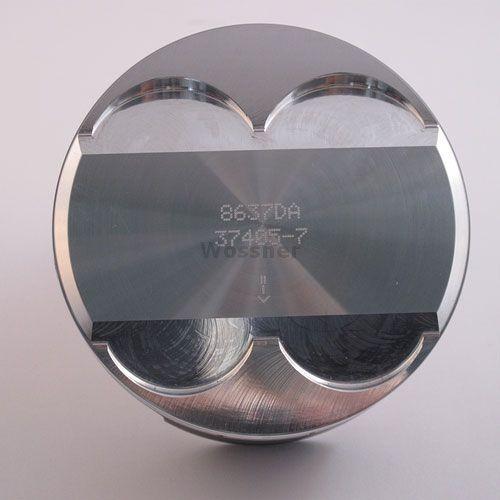

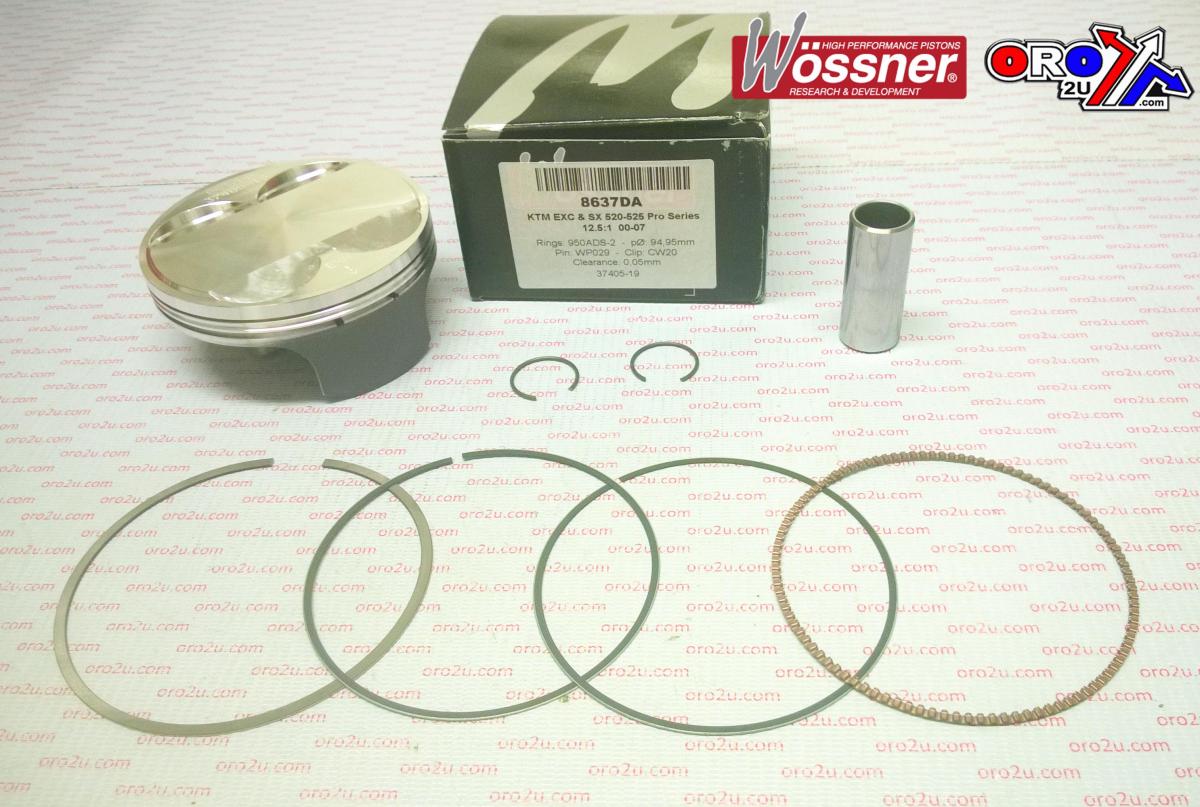

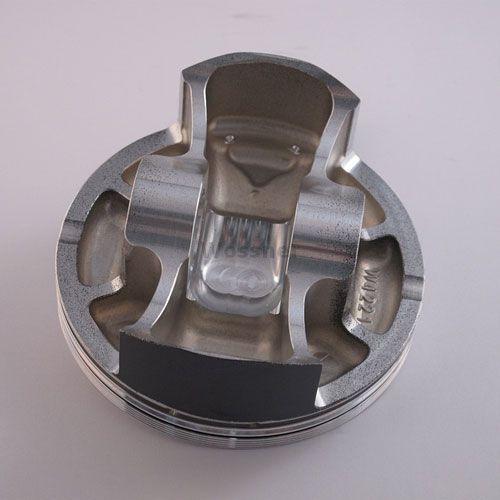

PISTON KIT KTM 520 525 EXC SX, WOSSNER 8637D200 KTM 00-09 HC
Wossner high-compression forged piston kit for enhanced performance. Engineered with an elliptical design for uniform bearing surface under heat expansion, reducing localized pressure and preventing piston collapse. Features optimized heat transfer for efficient combustion chamber performance. Manufactured in Germany. Bore Size: 97.00mm, Actual Bore Diameter: 96.95mm, Displacement: 510 cm³, Stroke: 72.00mm, Clearance: 0.05mm, Wossner Compression Ratio: 12.50:1, OEM Compression Ratio: 11.00:1, Dome Volume: +4.60 cm³, Compression Height: 23.50mm, Lock Part Number: CW20, Pin Part Number: WP029, Ring Set Part Number: 970ADS-2.
- SKU
- 56-W216+200.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner High-Compression Forged Piston Kit
Enhance your motorcycle's performance with the Wossner High-Compression Forged Piston Kit. Engineered for durability and superior power output, this piston kit is manufactured in Germany to the highest standards. Its advanced design ensures optimal engine operation and longevity, making it an ideal upgrade for demanding riders.
Key Features
- High-Compression Forged Piston: Delivers increased power and responsiveness.
- Optimized Heat Transfer: Promotes efficient combustion and engine cooling.
- Elliptical Design: Ensures uniform bearing surface under heat expansion, reducing localized pressure and preventing piston collapse for a more reliable performance.
- Premium German Manufacturing: Guarantees exceptional quality and precision engineering.
Specifications
- Bore Size: 97.00mm
- Actual Bore Diameter: 96.95mm
- Displacement: 510 cm³
- Stroke: 72.00mm
- Clearance: 0.05mm
- Wossner Compression Ratio: 12.50:1
- OEM Compression Ratio: 11.00:1
- Dome Volume: +4.60 cm³
- Compression Height: 23.50mm
- Lock Part Number: CW20
- Pin Part Number: WP029
- Ring Set Part Number: 970ADS-2
