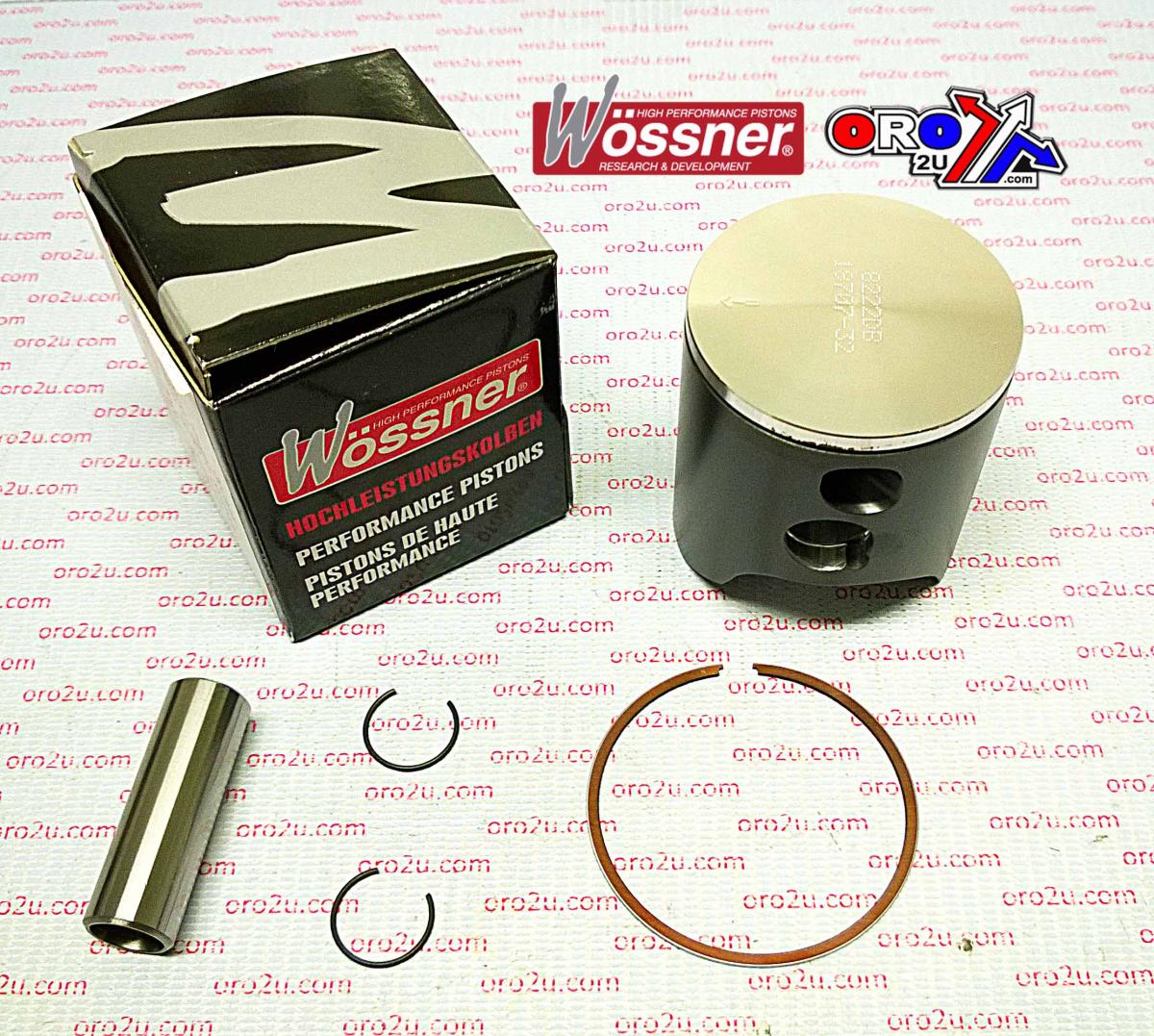

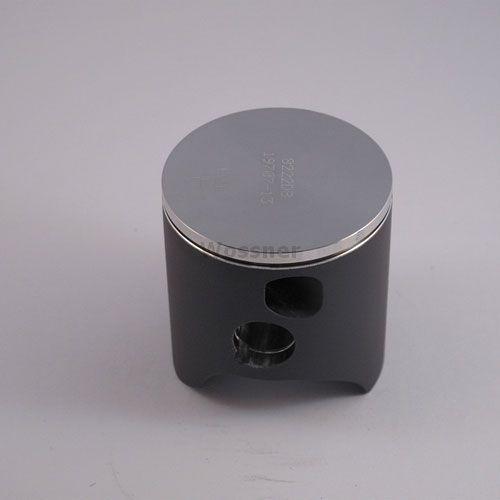

PISTON KIT KTM SX144 150 56 C, FORGED WOSSNER 8222DC
Wossner forged piston kit designed for superior strength and performance in 2-stroke engines. Engineered for optimal heat transfer from the combustion chamber to cylinder walls. The elliptical design ensures uniform bearing surface under heat expansion, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany. Features forged construction for enhanced durability, optimized heat transfer for improved performance, an elliptical design that prevents localized pressure and piston collapse, and a single-ring configuration for reduced friction and improved performance. Specifications include a bore of 55.97 mm, piston size of 56.02 mm, displacement of 144 cm³, stroke of 58.50 mm, clearance of 0.05 mm, 2-stroke Wossner compression ratio, 2-stroke OEM compression ratio, and a compression height of 29.50 mm. Cross-reference OEM part numbers include Lock: CW15, Pin: WP032, Ring Set: RSB5600, and Rod: P2012.
- SKU
- 56-W036.C.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner Forged Piston Kit for KTM SX 144/150 (56mm Bore)
Upgrade your KTM SX 144 or 150's performance with this high-quality forged piston kit from Wossner. Engineered for superior strength and optimal heat transfer, this piston is designed to withstand the demands of 2-stroke racing and high-performance riding.
The advanced elliptical design ensures uniform bearing surface even under extreme heat expansion. This innovative feature minimizes localized pressure and distributes thrust loads evenly, effectively preventing piston collapse and extending engine life. Manufactured in Germany to exacting standards, Wossner pistons are renowned for their durability and precision.
Key Features:
- Forged Construction: Provides enhanced strength and durability over cast pistons.
- Optimized Heat Transfer: Efficiently moves heat from the combustion chamber to the cylinder walls, improving performance and reliability.
- Elliptical Design: Prevents localized pressure and piston collapse by ensuring even load distribution under heat expansion.
- Single-Ring Configuration: Reduces friction and contributes to improved throttle response and overall performance.
Specifications:
- Bore: 55.97 mm
- Piston Size: 56.02 mm
- Displacement: 144 cm³
- Stroke: 58.50 mm
- Clearance: 0.05 mm
- Compression Height: 29.50 mm
Component Cross-Reference:
- Lock: CW15
- Pin: WP032
- Ring Set: RSB5600
- Rod: P2012
