PISTON KIT KTM400 600 95.00 B, 8520DB WOSSNER KTM TO-93
Wossner forged piston kit engineered for optimal heat transfer from the combustion chamber to cylinder walls. The elliptical design ensures uniform bearing surface under heat expansion, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany. Features forged construction for enhanced durability, optimized heat transfer for improved performance, and an elliptical design that prevents localized pressure and piston collapse. OEM compression ratio for direct replacement. Specifications include a bore of 94.95 mm, piston size of 95.01 mm, displacement of 400 cm³, stroke of 56.50 mm, clearance of 0.06 mm, Wossner compression ratio OEM, OEM compression ratio 10.80:1, dome volume +6.40 cm³, and compression height 26.50 mm. Cross-reference OEM part numbers include lock CW22, pin WP009, and ring set 950XSY.
- SKU
- 56-W014.B
- Brand
- Wossner
- Availability
- In Stock (3)
FULL DESCRIPTION

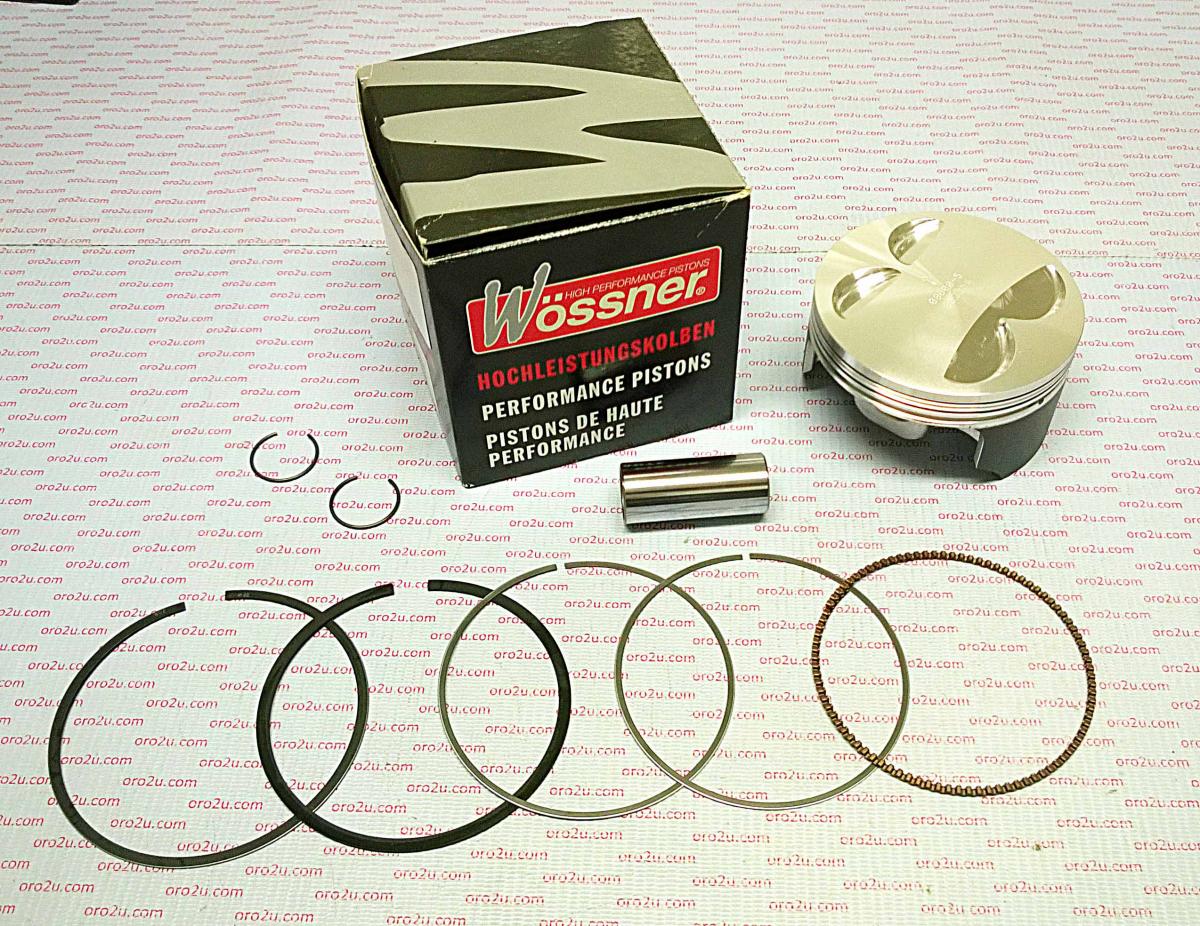

Wossner Forged Piston Kit
Enhance your motorcycle's performance and durability with this Wossner forged piston kit. Expertly engineered in Germany, this piston is designed for superior strength and optimal heat transfer, ensuring efficient operation from the combustion chamber to the cylinder walls. Its unique elliptical design actively prevents localized pressure and piston collapse by distributing thrust loads evenly, even under extreme heat expansion. This kit offers an OEM compression ratio for a direct and reliable replacement.
Key Features:
- Forged construction for exceptional durability and strength.
- Advanced design promotes optimal heat transfer for improved engine performance.
- Elliptical piston shape prevents localized pressure and safeguards against piston collapse.
- Maintains OEM compression ratio for seamless integration.
Specifications:
- Bore: 94.95 mm
- Piston Size: 95.01 mm
- Displacement: 400 cm³
- Stroke: 56.50 mm
- Clearance: 0.06 mm
- Wossner Compression Ratio: OEM
- OEM Compression Ratio: 10.80:1
- Dome Volume: +6.40 cm³
- Compression Height: 26.50 mm
