PISTON KIT KXF RMZ 250 77.00 A, FORGED WOSSNER 8582DA 13001-0052 K1300-10052
Wossner 77.00mm forged piston kit is designed for strength and durability. Engineered for optimal heat transfer, it ensures efficient cooling of the combustion chamber. The elliptical design provides a uniform bearing surface, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany for precision and reliability. Features include forged construction for enhanced strength and longevity, optimized heat transfer for improved engine performance, and an elliptical design that prevents piston collapse and ensures even load distribution. Bore Size: 77.00mm. Actual Bore Diameter: 76.96mm. Displacement: 249 cm³. Stroke: 53.60mm. Clearance: 0.04mm. Wossner Compression Ratio: 12.10:1. OEM Compression Ratio: 12.60:1. Dome Volume: -5.90 cm³. Compression Height: 19.60mm. Gasket Part Number: D4013. Lock Part Number: CW16. Pin Part Number: WP059. Ring Set Part Number: 770XAS-2. Rod Part Number: P4002. Cross-Reference OEM Part Numbers: 13001-0052, 4842M07700, K1300-10052, 56-W4842.A.WO, 8582DA.
- SKU
- 56-W4842.A.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION

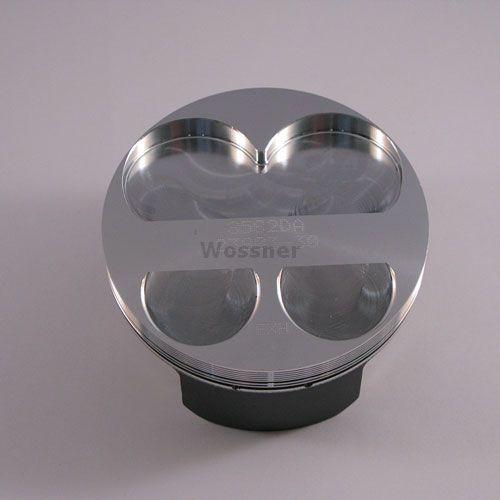

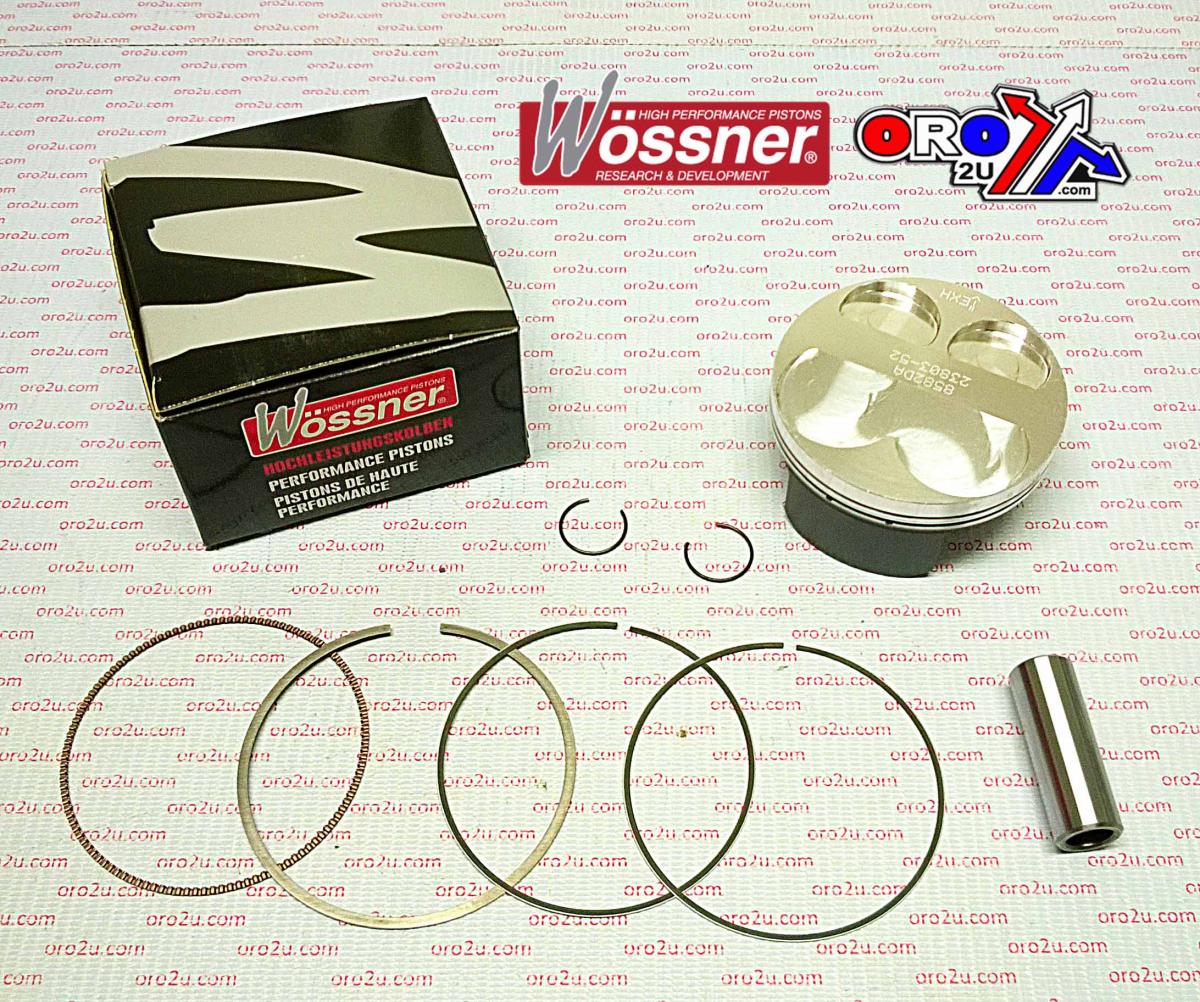

Wossner 77.00mm Forged Piston Kit
This Wossner forged piston kit is engineered for superior strength and exceptional durability. Designed with optimal heat transfer in mind, it promotes efficient cooling of the combustion chamber for enhanced engine performance. The innovative elliptical design creates a uniform bearing surface, effectively reducing localized pressure and distributing thrust loads evenly to prevent piston collapse under stress. Manufactured to stringent German quality standards, this piston kit ensures precision and unwavering reliability for your engine.
Key Features
- Forged Construction: Provides enhanced strength and longevity for demanding applications.
- Optimized Heat Transfer: Contributes to improved engine performance and cooling efficiency.
- Elliptical Design: Prevents piston collapse and ensures even load distribution for sustained operation.
- German Manufacturing: Guarantees high-quality standards and precision engineering.
Specifications
- Bore Size: 77.00mm
- Actual Bore Diameter: 76.96mm
- Displacement: 249 cm³
- Stroke: 53.60mm
- Clearance: 0.04mm
- Wossner Compression Ratio: 12.10:1
- OEM Compression Ratio: 12.60:1
- Dome Volume: -5.90 cm³
- Compression Height: 19.60mm
- Gasket Part Number: D4013
- Lock Part Number: CW16
- Pin Part Number: WP059
- Ring Set Part Number: 770XAS-2
- Rod Part Number: P4002
Cross-Reference OEM Part Numbers
- 13001-0052
- 4842M07700
- K1300-10052
- Wossner Part No: 8582DA
