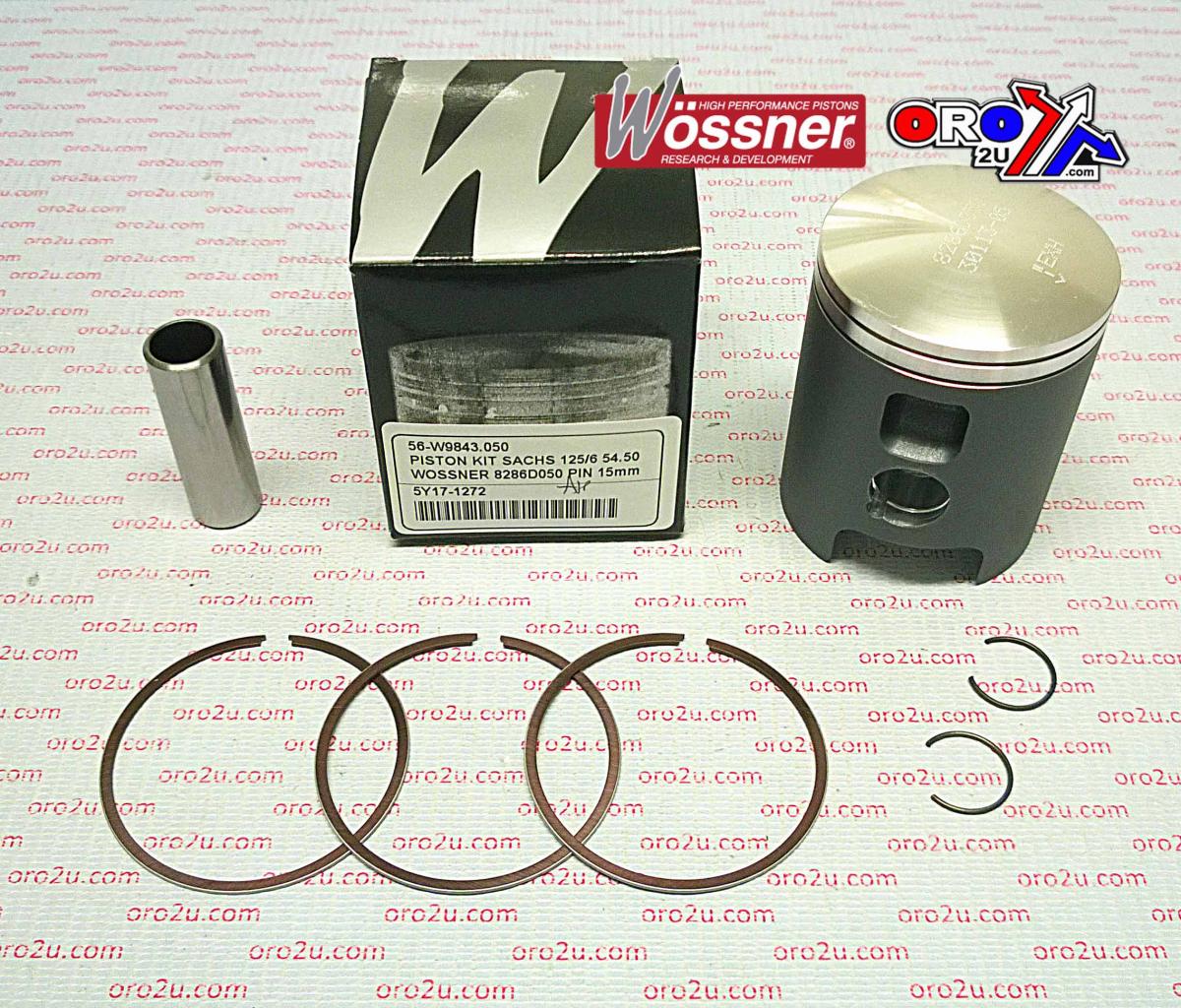

PISTON KIT SACHS 125/6 54.50, WOSSNER 8286D050 PIN 15mm
Wossner forged piston kit with a 54.50mm bore is a standard replacement for the Sachs 125/6 engine. Forged in Germany, the piston offers superior strength and efficient thermal characteristics. Its elliptical profile ensures uniform expansion under operating temperatures, reducing stress and preventing piston collapse in two-stroke engine applications. Features include forged construction for high strength and reliability, engineered for optimal heat transfer from combustion to cylinder walls, an elliptical profile that maintains a uniform bearing surface during heat expansion, and even thrust load distribution that minimizes localized pressure. Manufactured in Germany. Specifications: Bore 54.50mm (Standard), Actual bore 54.44mm, Display volume 122 cm³, Stroke 54.00mm, Clearance 0.06mm, Wossner compression ratio 2-stroke, OEM compression ratio 2-stroke, Compression height 38.00mm. Cross-Reference OEM Part Numbers: 56-W9843.050, 8286DA. Clip Part Number: CW15. Pin Part Number: WP132. Ring Set Part Number: RSB5450 (x2).
- SKU
- 56-W9843.050
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner Forged Piston Kit - 54.50mm Bore
Upgrade your Sachs 125/6 engine with this high-performance Wossner forged piston kit. Engineered in Germany, this piston offers superior strength and exceptional thermal efficiency, making it an ideal standard replacement.
Key Features:
- Forged construction for maximum strength and reliability.
- Designed for optimal heat transfer, ensuring efficient engine operation.
- Features an elliptical profile that maintains a uniform bearing surface as the piston expands with heat.
- Distributes thrust loads evenly, minimizing localized pressure and stress.
- Manufactured to exacting standards in Germany.
Specifications:
- Bore: 54.50mm (Standard)
- Actual bore: 54.44mm
- Display volume: 122 cm³
- Stroke: 54.00mm
- Clearance: 0.06mm
- Compression type: 2-stroke
- Compression height: 38.00mm
