PISTON KIT SET/4 YZF R6 01-05, WOSSNER K8831DA-4 YAMAHA
Set of 4 Wossner forged pistons for Yamaha YZF R6 2001-2005. Standard bore size 65.50mm, actual piston diameter 65.44mm. Elliptical design for consistent thrust load distribution and reduced stress. Engineered for efficient combustion heat transfer. Made in Germany. Part Number: K8831DA-4. Specifications: Bore Size 65.50mm, Displacement 600cc (display 600/617/636 cm³), Stroke 44.50mm, Clearance 0.06mm, Wossner Compression Ratio OEM, OEM Compression Ratio 12.40:1, Dome Volume -0.10cm³, Compression Height 21.20mm. Cross-Reference: Clip CW16, Piston Pin WP036, Replacement Ring Set 655XKS.
- SKU
- 56-W9904.000.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner Piston Kit Set for Yamaha YZF R6 (2001-2005)
Upgrade your Yamaha YZF R6's performance and reliability with this premium Wossner forged piston kit. Designed for the 2001-2005 models, this set includes four high-quality pistons engineered in Germany for exceptional durability and power. Each piston features an advanced elliptical design to manage thrust loads effectively during thermal expansion, minimizing stress and ensuring structural integrity. This kit maintains OEM compression standards, making it an ideal choice for performance enthusiasts.
Key Features

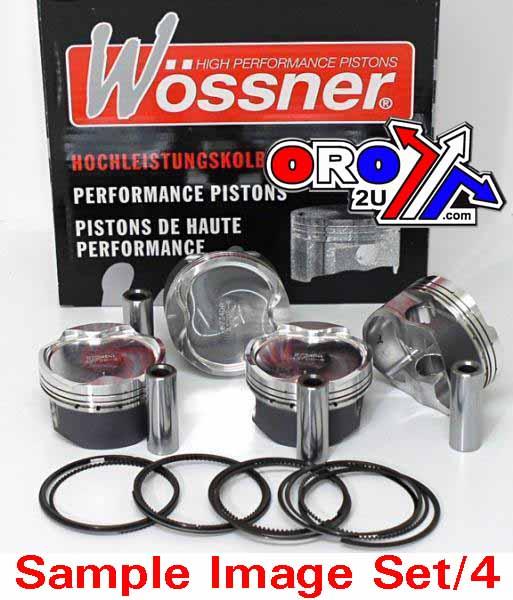

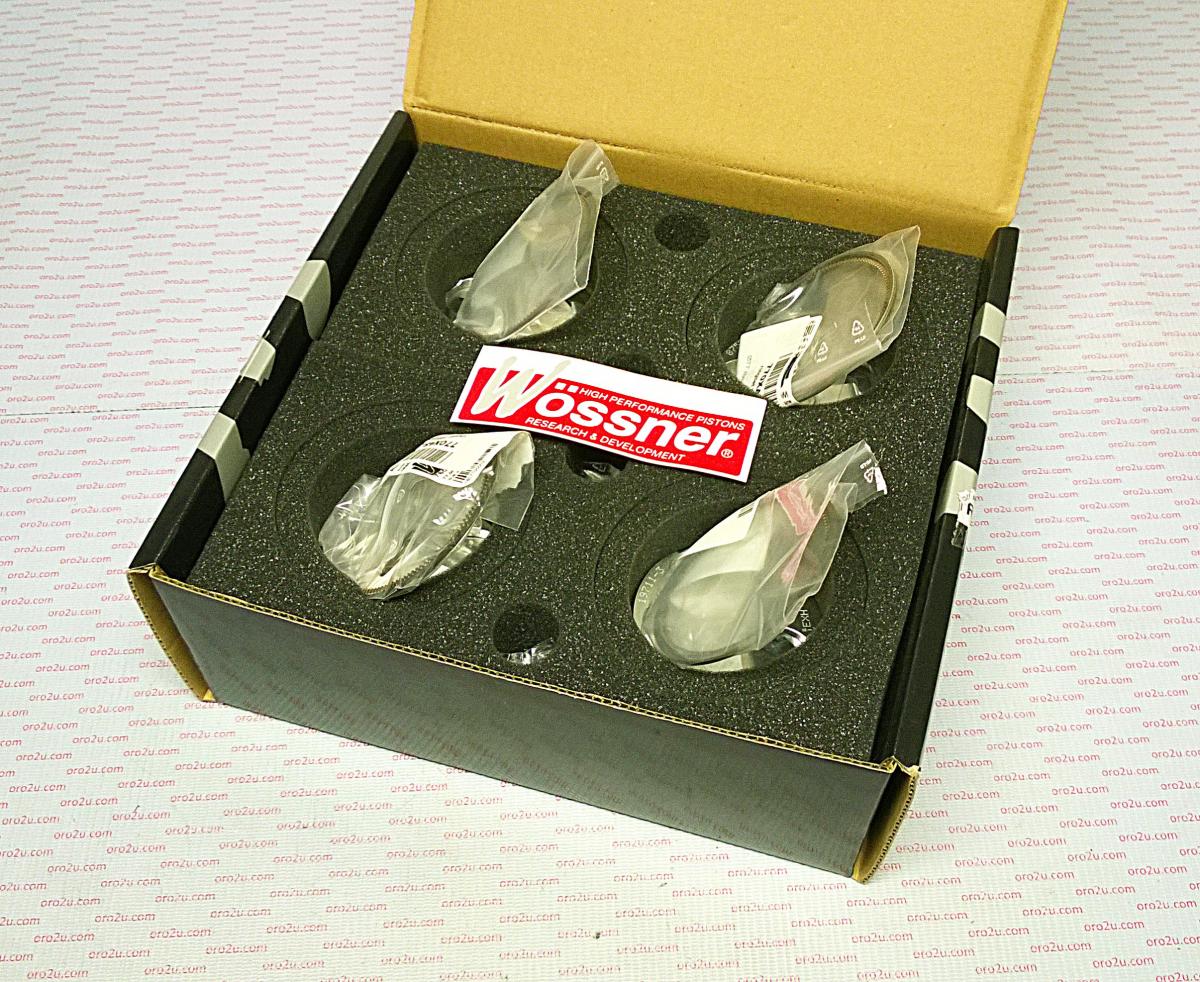

- Set of 4 premium forged Wossner pistons
- Precision manufactured in Germany
- Elliptical piston design for optimized thrust load distribution
- Engineered for superior combustion heat transfer
- Maintains OEM compression ratio for consistent performance
Specifications
- Part Number: K8831DA-4
- Standard Bore Size: 65.50mm
- Actual Piston Diameter: 65.44mm
- Engine Displacement: 600cc (Display Displacement: 600 / 617 / 636 cm³)
- Stroke: 44.50mm
- Piston Clearance: 0.06mm
- Wossner Compression Ratio: OEM
- OEM Compression Ratio: 12.40:1
- Dome Volume: -0.10cm³
- Compression Height: 21.20mm

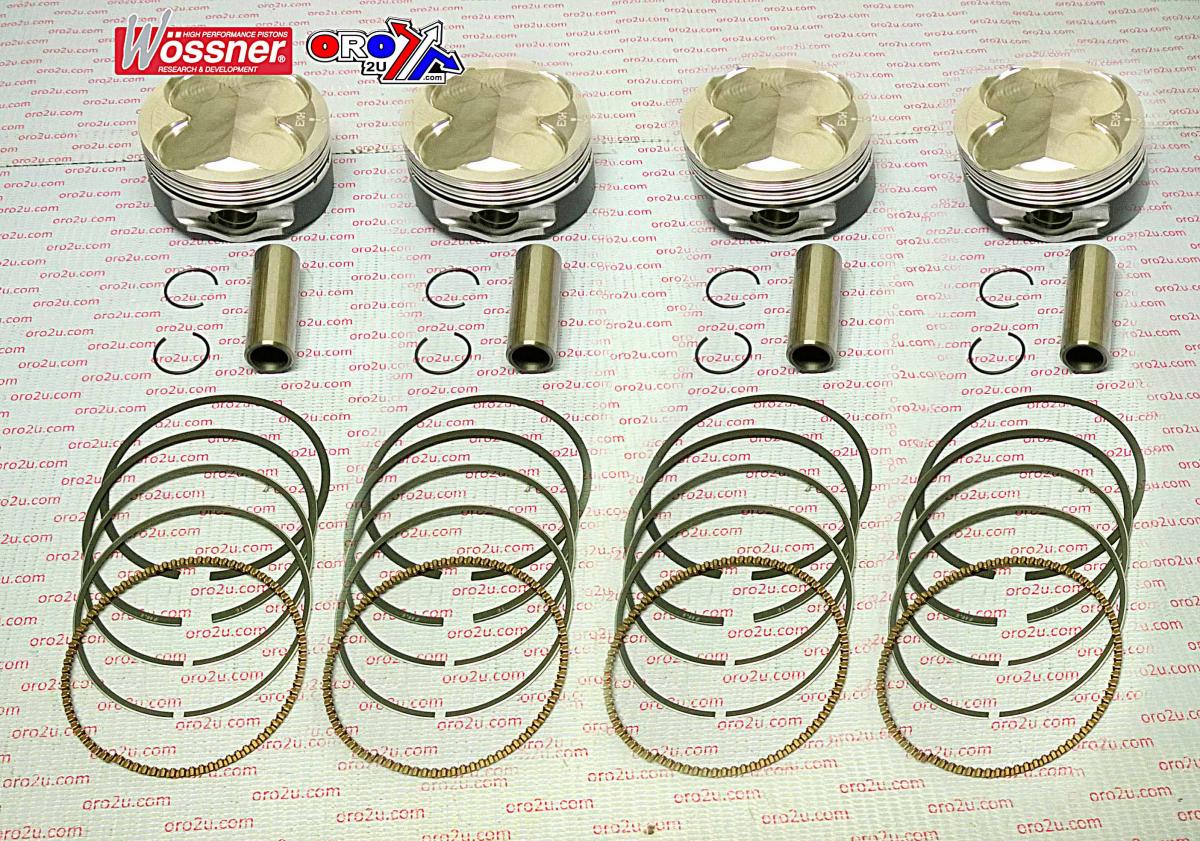

Included Components & Replacements
- Piston Pin: WP036
- Clip: CW16
- Replacement Ring Set: 655XKS
